OEM Tin 80u DP Socket Connector USB Jack SMT DIP Solder With PI Tape
OEM Tin 80u DP Socket Connector USB Jack SMT DIP Solder With PI Tape
OEM Tin 80u DP Socket Connector USB Jack SMT DIP Solder With PI Tape
OEM Tin 80u DP Socket Connector USB Jack SMT DIP Solder With PI Tape
OEM Tin 80u DP Socket Connector USB Jack SMT DIP Solder With PI Tape
OEM Tin 80u DP Socket Connector USB Jack SMT DIP Solder With PI Tape
OEM Tin 80u DP Socket Connector USB Jack SMT DIP Solder With PI Tape
OEM Tin 80u DP Socket Connector USB Jack SMT DIP Solder With PI Tape
Specifications
Brand Name :
Jinze
Model Number :
DP06E-LBA4V-RHA
Certification :
SGS/ROHS
Place of Origin :
China
MOQ :
1000pcs
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
80000pcs/ Day
Delivery Time :
15-25 Days
Packaging Details :
Reel Packaging
Material :
LCP UL 94 V-0 HF Black
Gender :
Female
Application :
Advertising Machine, Automotive Electronic, Smart Reader, Smart Watch, STB.
Number of Contacts :
20pcs
Current Rating :
500mA
Mounting Style :
Solder
Factory Pack Quanity :
400pcs per Reel
OEM/ODM :
Accepted
Description

DisplayPort Connector with 10000 Cycles Durability SMT DIP Solder With PI Tape

Specifications

Housing LCP UL94V-0 Black HF
Contact C2680 T=0.20mm
Shield C2680 T=0.40mm
Cover LCP UL 94V-0 Black HF
Terminal Finish Gold 15u" Plating on Contact Area
Matte Tin 80u" plating on solder tail
Under Nickel Plating 50u" Min Over All
Shell Cu 100u"+ Ni 100u" Plated
Current Rating 0.5A Max
Voltage Rating 40V
Contact Resistance 40 mΩ Max
Insulation Resistance Unmated 100mΩ Min. At 500 VDC
Mated 10 mΩ Min. At 150 VDC
Dielectric Withstanding Voltage 500 V AC/1 Minute
Durabilty 10000 Cycles
Insertion Force 4.5Kgf Max
Withdrawal Force 1.0-4.0Kgf
Operation Temperature -20°C~+85°C
Storage Temperature -20°C~+65°C

Images:

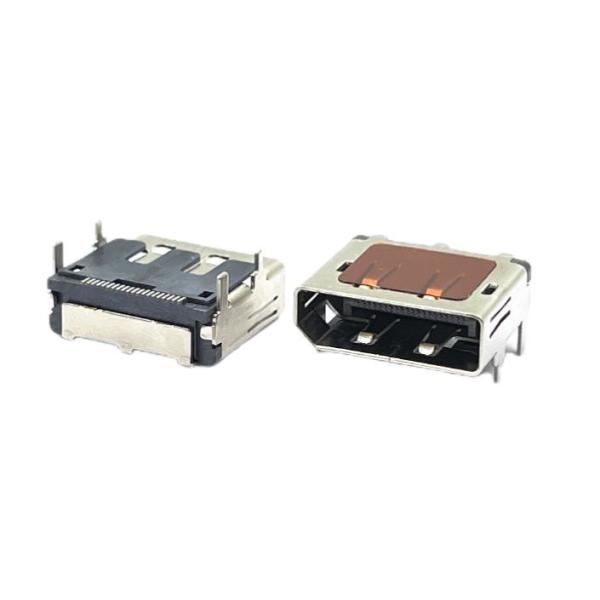

OEM Tin 80u

OEM Tin 80uOEM Tin 80uOEM Tin 80u

Drawings:

OEM Tin 80u

DP06E-LBA4V-RHA.pdf, if you need the Drawing, pls download it

Features and Benefits

• PCB space saving footprint
• D-shaped chamfered interface provides polarization
• Fully shielded against EMI and RFI emissions
• Detent locks and latch holes for secure mating connection
• PCB alignment pegs
• PCB solder pegs for in creased rigidity and retention to PCB

Product Application Information

These DisplayPort receptacle connectors form part of the DisplayPort interconnection system which is used for delivering high definition video of up to 10.8 Gbit/s and audio signals. Applications include games consoles, monitors, personal computers, projectors, set-top boxes, TV displays and work stations
Why Choose us?
1. Product Warrantied: High quality with competitive Price. 1 Year Warranty For All.
2. Customer Service: Best Work Efficiency, Quick Respond, Fast Shipping & Delivery.
3. Global Marketplace: More than 180,000 Electronic Components
