USB3.1 Type A PCB DIP USB Connector Socket Female 90 Degrees CH1.9mm
USB3.1 Type A PCB DIP USB Connector Socket Female 90 Degrees CH1.9mm
USB3.1 Type A PCB DIP USB Connector Socket Female 90 Degrees CH1.9mm
USB3.1 Type A PCB DIP USB Connector Socket Female 90 Degrees CH1.9mm
USB3.1 Type A PCB DIP USB Connector Socket Female 90 Degrees CH1.9mm
USB3.1 Type A PCB DIP USB Connector Socket Female 90 Degrees CH1.9mm
USB3.1 Type A PCB DIP USB Connector Socket Female 90 Degrees CH1.9mm
USB3.1 Type A PCB DIP USB Connector Socket Female 90 Degrees CH1.9mm
Specifications
Brand Name :
Jinze
Model Number :
UB90A-9LA23-RHA
Certification :
SGS/ROHS
Place of Origin :
China
MOQ :
1200pcs
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
80000pcs/ Day
Delivery Time :
15-25 Days
Packaging Details :
Reel Packaging
Housing :
PA9T UL94V-0
Color :
Black
Gender :
Receptacle (Female)
Application :
Power, PCB, Microwave,Computor
Number of Contacts :
9 Contact
Number of Ports :
1 Port
Current Rating :
1.8 AMP
Mounting Angle :
Right Angle
Mounting Style :
PCB Mount
Factory Pack Quanity :
300pcs per Reel
Description

Specifications:

Housing PA9T HF+Rohs2.0 UL94 V-0 Blue
Contact 4PIN C5191
5PIN C2680
Shell SUS201
Cover PA9T HF+Rohs2.0 UL94 V-0 Black
Contact Plating Au 30u" Plated on Contact Area
Matte-Tin 100u" Min Plated on Solder Tails
Ni 50u" Min Plated Over all
Shell Plating Nickel 50u" Min Plated Over all
Contact Current Rating 1.8A For Pin1& 4
0.25A for other contacts
Contact Resistance 30mΩ Max. initial For Vbus & GND Contacts
50mΩ Max Initial for All other Contacts
Insulation Resistance 100mΩ Min. at DC 500V
Dielectric Withstanding Voltage 100VAC R.M.S
Mating Force 35N(3.57Kg) Max
Unmating Force Initial 10N(1.02Kg) Min; After Test 8N(0.816Kg) Min
Operating Temperature -55ºC~+85ºC
Salt Spray 48H

Images:

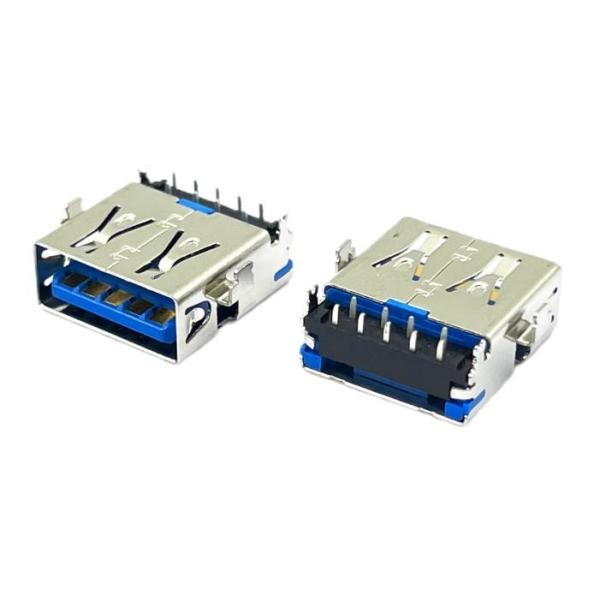

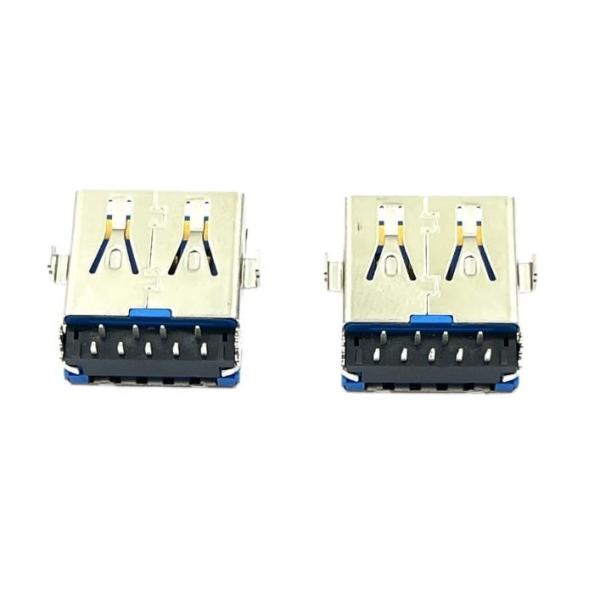

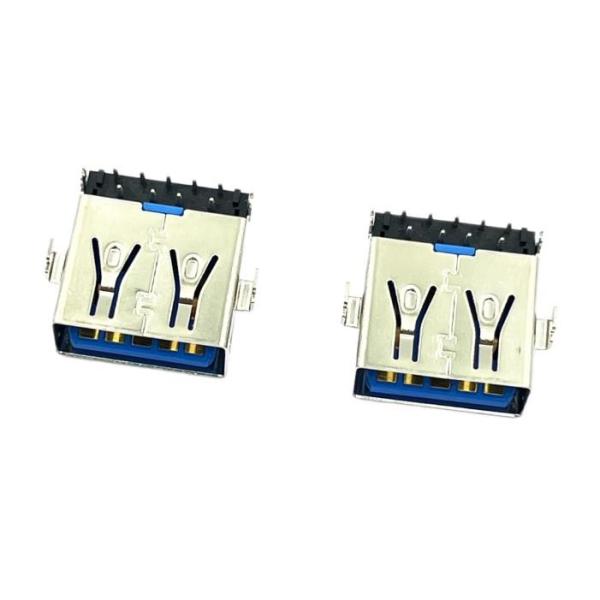

USB3.1 Type A PCB DIP USB Connector Socket Female 90 Degrees CH1.9mmUSB3.1 Type A PCB DIP USB Connector Socket Female 90 Degrees CH1.9mm

USB3.1 Type A PCB DIP USB Connector Socket Female 90 Degrees CH1.9mm

UB90A-9XXX3-RHA.pdf, if you need the Drawing, pls download it!

What is a USB Connector?

A USB connector is the socket, port, or jack into which the plug end of a USB cable or USB-powered device is inserted. USB connectors are typically female, while the USB plug on the cable is male.

Rectangular, slot-shaped USB type-A connectors are most common and can be found on computers, personal electronics, and peripherals. This includes keyboards and mice, mobile phones and chargers, memory sticks (flash drives), and other USB accessories.
