15A USB Wall Outlet with 5.0A Fast Charging, Tamper Resistant Design and IntelliChip Technology
15A USB Wall Outlet with 5.0A Fast Charging, Tamper Resistant Design and IntelliChip Technology
15A USB Wall Outlet with 5.0A Fast Charging, Tamper Resistant Design and IntelliChip Technology
15A USB Wall Outlet with 5.0A Fast Charging, Tamper Resistant Design and IntelliChip Technology
15A USB Wall Outlet with 5.0A Fast Charging, Tamper Resistant Design and IntelliChip Technology
15A USB Wall Outlet with 5.0A Fast Charging, Tamper Resistant Design and IntelliChip Technology
15A USB Wall Outlet with 5.0A Fast Charging, Tamper Resistant Design and IntelliChip Technology
15A USB Wall Outlet with 5.0A Fast Charging, Tamper Resistant Design and IntelliChip Technology
15A USB Wall Outlet with 5.0A Fast Charging, Tamper Resistant Design and IntelliChip Technology
15A USB Wall Outlet with 5.0A Fast Charging, Tamper Resistant Design and IntelliChip Technology
15A USB Wall Outlet with 5.0A Fast Charging, Tamper Resistant Design and IntelliChip Technology
15A USB Wall Outlet with 5.0A Fast Charging, Tamper Resistant Design and IntelliChip Technology
Specifications
Model Number :
KU-15T (Port A+Port C)
Brand Name :
KEYGMA, KEYGMA
Place of Origin :
Guangdong, China, Guangdong, China
AC Outlets :
2 Outlets
Rated Current :
15A
Rated Voltage :
125V
USB A Ports :
1 Port
USB Type-C Ports :
1 Port
USB Output :
5V 5.0A
Voltage Range :
110V-240V
Pole :
2
Wire Gauge :
14-10 AWG
Dielectric Voltage :
2000V
Flammability Rating :
V-2
Operating Temperature :
-10C to 40C
Face Material :
100% PC
Terminal Screws :
Brass
Shutter Mechanism :
Acetal
Description
Company Advantage
15A USB Wall Outlet with 5.0A Fast Charging, Tamper Resistant Design and IntelliChip Technology
15A USB Wall Outlet with 5.0A Fast Charging, Tamper Resistant Design and IntelliChip Technology

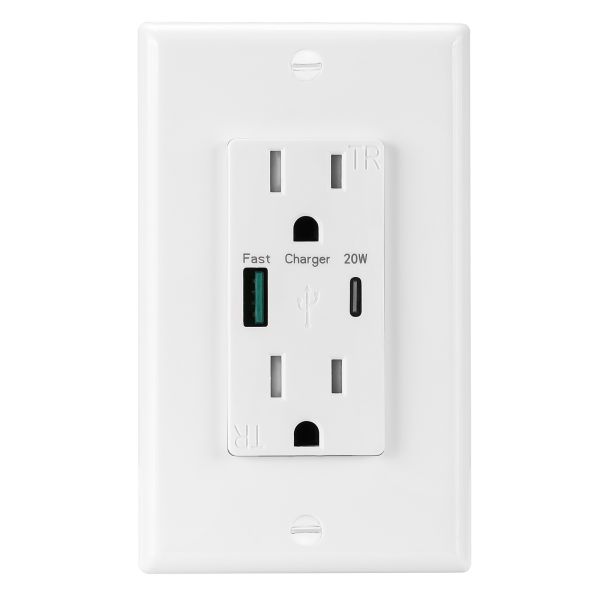

Product Description
15A USB Wall Outlet with 5.0A Fast Charging, Tamper Resistant Design and IntelliChip Technology

Kegyma AC Electrical Socket with TWIN USB-C Receptacle

Wall outlet with USB ports ensures all your devices stay charged while leaving room for other appliances. Charge two USB devices simultaneously without adapters

5.0A, 5VDC combined charging capacity; each USB port can reach up to 5.0A on a standalone charge. Provide the fastest charge to iPhone, iPad, iPad Air, and other smartphones, tablets, and USB devices.

Smart and safe charging with intelliChip built into the USB ports. Recognizes power need of connected devices, then delivers the maximum power that your devices allow, up to 5.0A per port

Child safe, tamper-resistant duplex receptacle increases safety by preventing unwanted objects from being inserted into the outlets; complies with 2011 NEC Article 406.14.

Back and side wired; 125VAC, 15A duplex receptacle, ETL-listed 5001170. Safe and easy to install.
15A USB Wall Outlet with 5.0A Fast Charging, Tamper Resistant Design and IntelliChip Technology
Product Advantage:

--This USB Outlet 15 Amps receptacle has 2 USB chargers
-- Single port Max 5.0A fast charging
--Built-in IntelliChip provides optimal charge and protects from overcharging
--15A Tamper Resistant Power Receptacles promote electrical safety
--Back and side wire terminals accommodate #14 AWG - #10 AWG standard
--Wide Voltage 110V-240V suitable
15A USB Wall Outlet with 5.0A Fast Charging, Tamper Resistant Design and IntelliChip Technology
Amperage
15 Amp
Voltage
110v-240v
Pole
2
Wire
3
Grounding
General Grounded
Dielectric Voltage
Withstands 2000V per UL498
USB output
Single Max 5.0A
Terminal Accom
14-10 AWG
Flammability
Rated V-2 per UL94
Operating Temperature
-10C to 40C
Face Material
100% pure PC
Terminal Screws
Brass-Hot Black-Hot White-Neutral Green-Gnd
Terminal Clamp
Brass
Line Contacts
Brass
Grounding Screws
Stainless Steel
Shutter Mechanism
Acetal
NEMA
5-15R
Applicable Standards
UL 943, UL 498
Detailed Description
15A USB Wall Outlet with 5.0A Fast Charging, Tamper Resistant Design and IntelliChip Technology


Wide Voltage Design


It can support 110V to 240V which can be used widely both South America and North America as well as other American standard areas.


Fast Charging USB port


Singe port support Max5.0A current. USB5.0A employs identification chip to enable optimum power transfer while still maximizing power charging efficiency.

15A USB Wall Outlet with 5.0A Fast Charging, Tamper Resistant Design and IntelliChip Technology
15A USB Wall Outlet with 5.0A Fast Charging, Tamper Resistant Design and IntelliChip Technology

Tamper Resistant Shutter


Complies with NEC ® requirement, all 15A and 20A receptacles installed in dwelling units should be with tamper-resistant

Receptacles with Shutter mechanism block access to the contacts unless the plug is fully inserted.It's much safer for kids.

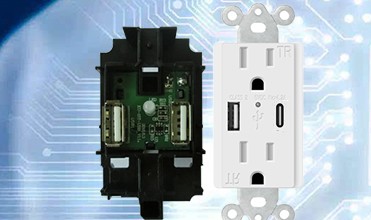

Intelligent Identification Chip


Equipped with smart Chip, the USB ports precisely 'read' the power needs of the connected device to deliver optimal power. IntelliChip charges at the optimal power allowed by the device, so your devices are protected from overcharging and overheating

15A USB Wall Outlet with 5.0A Fast Charging, Tamper Resistant Design and IntelliChip Technology
15A USB Wall Outlet with 5.0A Fast Charging, Tamper Resistant Design and IntelliChip Technology

Residential and Commercial Applications:

Kitchens, Bedrooms, Home Offices, Airport Lounges, Salons and Spas, Hotels, Meeting Rooms, Office Cubicles, College Dormitories,Cafes, Coffee Houses, Restaurants or other public areas.

From the bedroom to the airport, from the living room to the library, the KU-15T 4.2A USB Charger Outlet is perfect for any application! Your walls will look tidy and neat, while giving your devices a better power center. All you need is your USB cable.

More Products
15A USB Wall Outlet with 5.0A Fast Charging, Tamper Resistant Design and IntelliChip Technology

GFCI/GFI Safe Socket

15A USB Wall Outlet with 5.0A Fast Charging, Tamper Resistant Design and IntelliChip Technology

Wifi Smart Outlet

15A USB Wall Outlet with 5.0A Fast Charging, Tamper Resistant Design and IntelliChip Technology

PD20W/QC3.0 USB Socket

Why Choose Us
15A USB Wall Outlet with 5.0A Fast Charging, Tamper Resistant Design and IntelliChip Technology

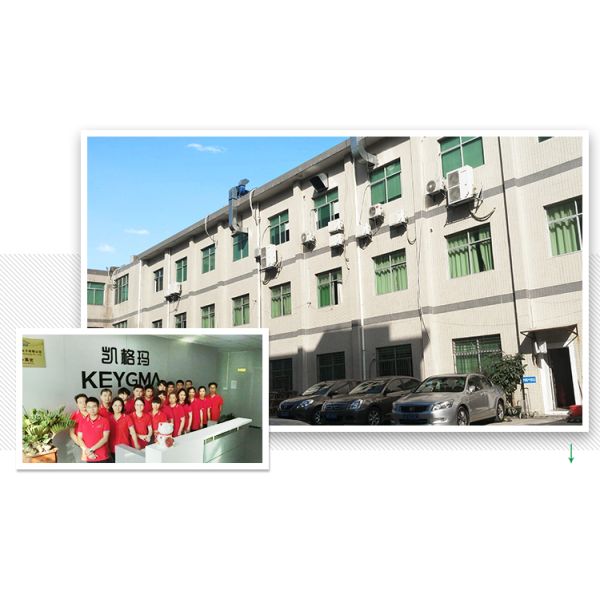

Shenzhen KEYGMA Electrical Manufacturing CO., Ltd is a professional high-tech enterprise and Focus on American standard wall outlets for 10 years. KEYGMA registered with 750,000.00 dollars, with factory at Pingshan District, Shenzhen and branch office at Longgang District.

From design to Package, KEYGMA researched and developed 4 series main products: Ground Fault Circuit Interrupter(GFCI), USB wall outlets, smart wall outlets and LED dimmer. All the products are with mandatory certificate ETL listed and FCC.Since 2003,32 patents were applied based on core technology.

KEYGMA has strong R&D team, technical engineers are experienced on electrical products more than 13 years. Every one of them are awarded invention patent and familiar with UL requirements of electrical products.

Focus on " Quality, Reputation and Innovation",KEYGMA always persist in "Quality First, Safety First ", We have confidence that Keygma will become an electricity Pioneer Guarder of your convenient and safe life.

15A USB Wall Outlet with 5.0A Fast Charging, Tamper Resistant Design and IntelliChip Technology

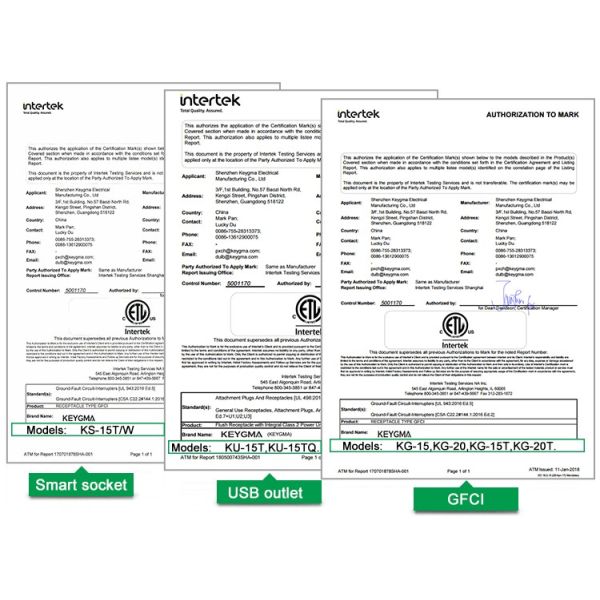

Certificate
15A USB Wall Outlet with 5.0A Fast Charging, Tamper Resistant Design and IntelliChip Technology
15A USB Wall Outlet with 5.0A Fast Charging, Tamper Resistant Design and IntelliChip Technology

All the products are with ETL certificate. ETL No.5001170.
10+ patent are applied.
15A USB Wall Outlet with 5.0A Fast Charging, Tamper Resistant Design and IntelliChip Technology

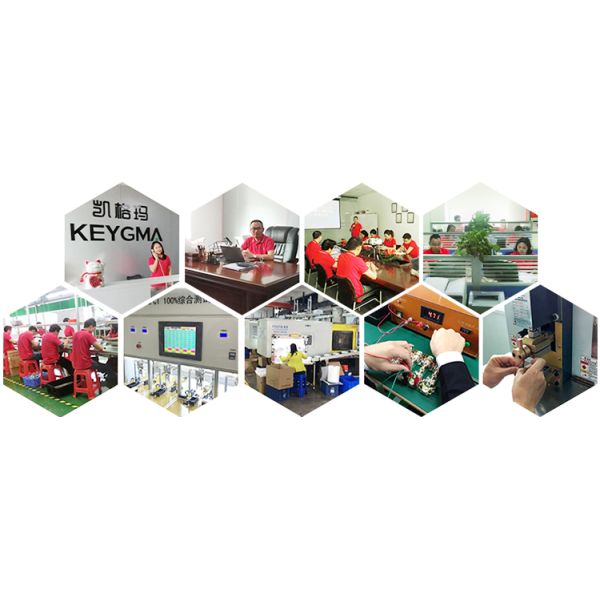

The 3 ones are the core R&D department.
All of them are experienced on electronic field.
The customization service can be offered from design to package. Once we cooperated, we'll take care of everything.
15A USB Wall Outlet with 5.0A Fast Charging, Tamper Resistant Design and IntelliChip Technology

The main markets are the ones who use US standard outlets.
Customers visit us for projects, reselling, wholesale etc. You are warmly welcomed to visit us any time.

OEM&ODM Case

Make Your Idea Come True

The idea is the most and least valuable thing in the world. A good idea can change the world,while a bad idea will destroy the world.

Every thought is a god-given gift from heaven.

There are countless ideas every day in this world, and countless ideas disappear.

If you don't know care about these ideas. This is a waste of God's gift.

Once you have an idea on electrical products, come to Keygma, we'll help you make it come true.
