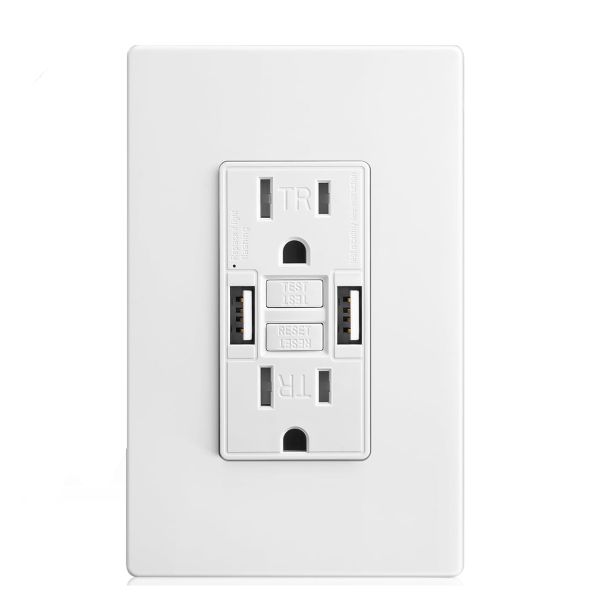

15A 125V GFCI Outlet with Self-Test and Dual USB Charging Ports for Residential Use
15A 125V GFCI Outlet with Self-Test and Dual USB Charging Ports for Residential Use
15A 125V GFCI Outlet with Self-Test and Dual USB Charging Ports for Residential Use
15A 125V GFCI Outlet with Self-Test and Dual USB Charging Ports for Residential Use
15A 125V GFCI Outlet with Self-Test and Dual USB Charging Ports for Residential Use
15A 125V GFCI Outlet with Self-Test and Dual USB Charging Ports for Residential Use
15A 125V GFCI Outlet with Self-Test and Dual USB Charging Ports for Residential Use
15A 125V GFCI Outlet with Self-Test and Dual USB Charging Ports for Residential Use
15A 125V GFCI Outlet with Self-Test and Dual USB Charging Ports for Residential Use
15A 125V GFCI Outlet with Self-Test and Dual USB Charging Ports for Residential Use
Specifications
Model Number :
KG-15TU2
Brand Name :
KEYGMA
Place of Origin :
Guangdong, China
MOQ :
50
Price :
$7.80-8.50
AC Outlets :
2 Outlets
Rated Current :
15A
Rated Voltage :
125V
USB Ports :
2 Ports
USB Output :
5V 4.8A
Trip Level :
5mA ±1mA
Flammability Rating :
UL94 V-0
Body Material :
Polycarbonate
Withstand Voltage :
1500V AC
Mechanical Life :
3000 times
Release Time :
≤25mS
Operating Temperature :
-35°C to +66°C
Terminal Screws :
Plated Steel
Terminal Clamp :
Brass
Mounting Strap :
Galvanized Steel
Description
15A 125V GFCI Outlet with Self-Test and Dual USB Charging Ports for Residential Use
15A 125V GFCI Outlet with Self-Test and Dual USB Charging Ports for Residential Use
Product Description
15A 125V GFCI Outlet with Self-Test and Dual USB Charging Ports for Residential Use

Tamper Resistant Mechanism AC receptacle GFCI Protected Outlet with USB Ports

Features:
● High-quality thermoplastic materials, improved resistance to surge and corrosion (for indoor use only).
● With safe lock protecttion function, GFCI safety is improved.
● Auto self-test.
● GFCI includes an End-of-Life monitoring function, it can not reset correctly when GFCI reaches the end of life.
● When miswired, GFCI outlets have no power and can`t be reset, so it`s more safe than conventional outlets.
● With dual Type A USB ports, 5V 4.8A, USB 2.0 / 3.0 is compatible. Support iphone 15 charging.
● Tamper-Resistant, can protect children from the risk of electric shock.
● Status indicator (LED) provides simple, intuitive feedback.
- Red light: GFCI correct installation.
- Green light: After reset, the red indicator (LED) will trun green light, which means the outlet is working properly.
- Flashing red light: GFCI has stopped functioning and must be replaced.

Attention: The GFCI USB outlet with 1.58 inch in depth, requires extra deep wallbox for installation.
15A 125V GFCI Outlet with Self-Test and Dual USB Charging Ports for Residential Use
Product Advantage:

-● Meet UL943, UL498, UL1310 standard
● GFCI 15A /125VAC Class A
● USB dual A 5V / 4.8A (shared) Class 2
● Withstand voltage: 1500V (AC)
● Mechanical Life: 3000 times
● Fire Rating: Ul-94 V 2
● Trip threshold: 4-6mA
● Release time: ≤25mS
● Insertion force: <178N
● Pulling force: <67 N
● Retention: >13 n
● Weight: About 142g

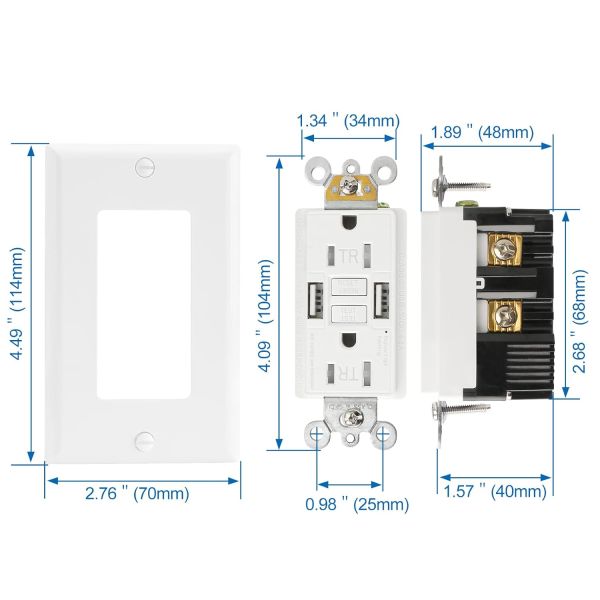

● Size: 105 * 41 * 47.5 mm


15A 125V GFCI Outlet with Self-Test and Dual USB Charging Ports for Residential Use
Amperage
15 Amp
Voltage
125 Volt
Pole
2
Wire
3
Grounding
GFCI Ground Fault
Dielectric Voltage
Withstands 2000V per UL498
Trip Level
5mA plus or minus 1mA
Current Interrupting
2 kA
Flammability
Rated V-2 per UL94
Operating Temperature
-35°C to +66°C
Face Material
100% pure PC
Terminal Screws
Plated Steel
Terminal Clamp
Brass
Line Contacts
Brass
Grounding Screws
Plated steel
Mounting Strap Material
Galvanized Steel
USB Output
5V 4.8A
Applicable Standards
UL 943, UL 498
15A 125V GFCI Outlet with Self-Test and Dual USB Charging Ports for Residential Use
Packing size/Unit
Carton Size
Pack Options
Qty/CTN
Weight/CTN
4.57*2.76*1.85in
11.6*7.0*4.7cm
15.16*10.63*13.39in
38.5*27*34cm
1 Pack
60pcs
11.5kg/25.35lb
