Specifications
Model Number :
KD-11A010V
Brand Name :
KEYGMA
Place of Origin :
Guangdong, China
MOQ :
5
Price :
$5.50-6.60
Max. Current :
10A
Max. Voltage :
277V
IP Level :
IP44
Mechanical Life :
40000 Times
Switch Type :
Single Pole, 3-Way
Output Voltage :
0-10V
Input Voltage :
120-277V
Dimming Range :
5%-100%
Material :
Metal, Plastic
Max. Load Power :
300W
Power Source :
Wired Electric
Operating Temperature :
-10-40C
Face Material :
100% Virgin PC+ABS
Dielectric Voltage :
2000V
Unit Dimensions :
4.57*2.76*1.57in
Description

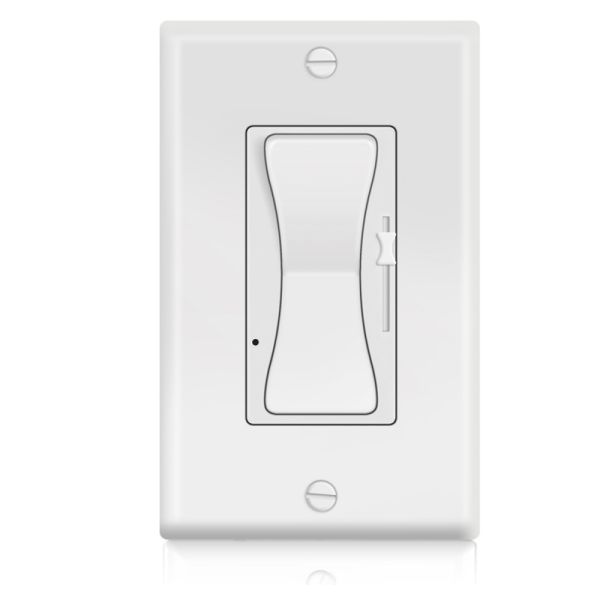

Keygma Single Pole 0-10V Dimmer Switch
ETL Certified 300W IP44 Rated for American Market
Product Overview
Professional-grade 0-10V dimmer switch designed for precise lighting control in commercial and residential applications.
Key Specifications
Load Capacity
150W (LED/CFL) / 600W (Incandescent)
Voltage
100-250V AC 50~60Hz
Operating Temperature
-10°C to 40°C
Face Material
100% Virgin PC+ABS
Connection Types
Single Pole or 3-Way
Flammability Rating
Rated V0 per UL943
Color Options
White, Black, Ivory, Almond (Custom colors available)
Certifications & Standards
UL1472:2015 Ed.2, ETL Certified, IP44 Weather Resistance
Product Features
  • Standard grounding for enhanced safety
  • Withstands 2000V dielectric voltage per UL498
  • Suitable for multiple lighting types on same circuit
  • Easy installation with no rewiring required
  • Durable construction with premium materials
OEM Services
Custom logo printing available (MOQ 500pcs) with laser engraving or silk screen options. Custom packaging available (MOQ 1000pcs) with design services.
Packaging Options
Product Package Size Carton Size
Dimmer Switch 4.57*2.76*1.57 in (11.6*7.0*4.0 cm) 20*17.3*10.6 in (51*44*27 cm)
Frequently Asked Questions
Can this replace a switch with no rewiring?
Yes, the dimmer can directly replace single pole or 3-way switches without rewiring.
Can it dim incandescent and LED bulbs on the same circuit?
Yes, though bulbs may not dim uniformly due to different technologies.
Why doesn't the dimmer go completely dark at the lowest setting?
Maintains minimal light to indicate switch status and prevent driver damage.
Can one dimmer control multiple lights?
Yes, as long as the total load doesn't exceed maximum ratings.
Company Capabilities
Established in 2009 with full R&D department, manufacturing facilities, and US agency support. Production capacity: 6,000 units per day.
