IP66 Waterproof 480W 150lm/W Outdoor Stadium Lighting 5700K
IP66 Waterproof 480W 150lm/W Outdoor Stadium Lighting 5700K
IP66 Waterproof 480W 150lm/W Outdoor Stadium Lighting 5700K
IP66 Waterproof 480W 150lm/W Outdoor Stadium Lighting 5700K
IP66 Waterproof 480W 150lm/W Outdoor Stadium Lighting 5700K
IP66 Waterproof 480W 150lm/W Outdoor Stadium Lighting 5700K
Specifications
Brand Name :
GYLED
Model Number :
GY318TGII
Certification :
CE, ROHS, EMC, LVD
Place of Origin :
CHINA
MOQ :
1PCS
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
200000PCS/YEAR
Delivery Time :
7-10DAYS
Packaging Details :
2PCS, 4PCS IN 1CARTON
Power(W) :
120W/180W/240W/360W/480W
Color temperature(cct) :
2200 K~5700 K
Lamp luminous efficiency(lm/w) :
≥150lm/W
Frequency :
50/60Hz
Input voltage(v) :
AC100~277V
Working temperature(℃) :
-30 ~ 50℃
IP/IK Rating :
IP66/IK08
Warranty :
5 years warranty
Beam Angle :
15°, 40°, 60°, 90°, 120°, 49°*21°, 70°*30°, 130°*78°
Application :
Stadium, Square, Air port, Dock, Crane, Parking Lot, Industrial Area
Description

IP66 waterproof 5 years warranty 480W led floodlights 150lm/W outdoor stadium lighting

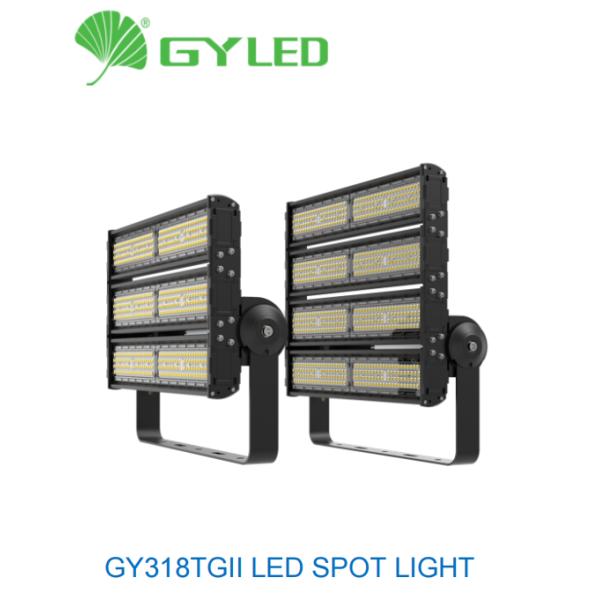

GY318TGII LED Spot Light

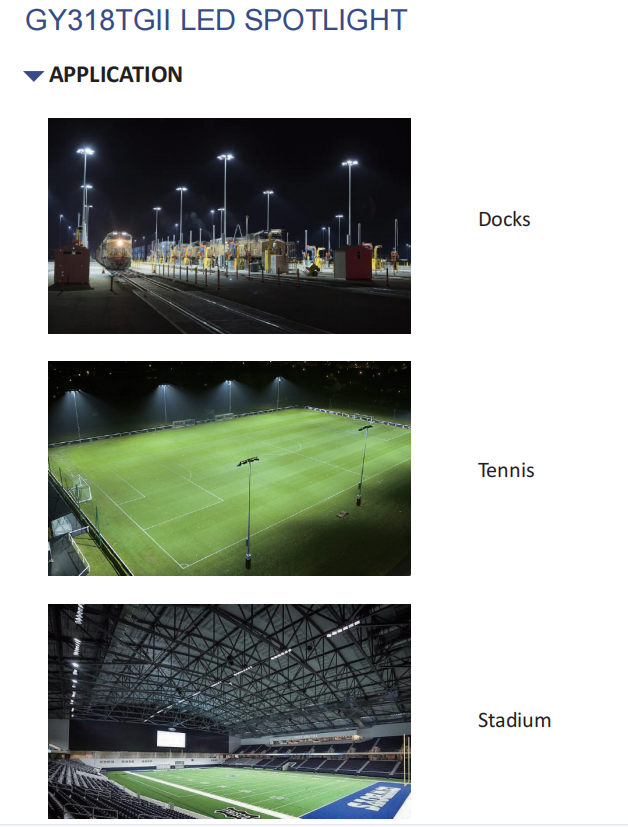

Application:

Large outdoor fields - Stadiums, riding arenas, baseball and football fields, pool

Large indoor sports facilities, courts, concert halls, and other indoor arenas

Other large outdoor areas: Park, docks, airports, shipyard

Other large-scale landscape, square lighting.

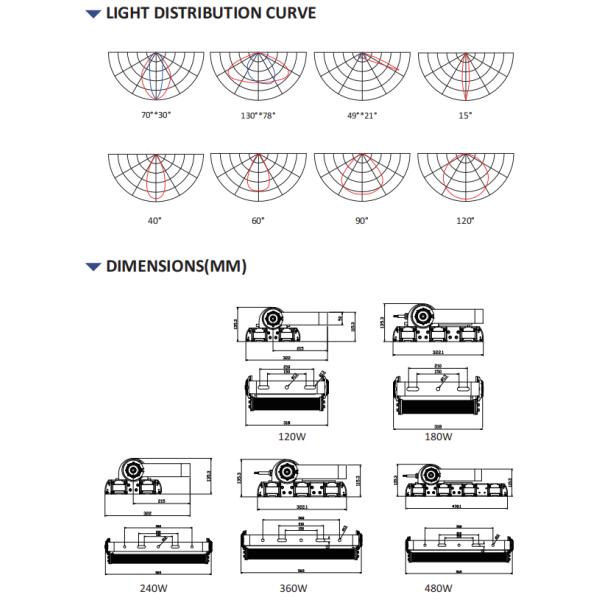

Technical Parameter

Model No. GY318TGII-120W GY318TGII-180W
Lamp Power (W) 120W 180W
CRI (Ra) Ra70 (Ra80 optional)
Luminous Efficiency (Lm/W) >150lm/W
Input Voltage (V) AC100~277V
Frequency (Hz)
50/60 Hz
Power Factor ＞0.95
Class Class I
Beam Angle(°) 15°, 40°, 60°, 90°, 120°, 49°*21°, 70°*30°, 130°*78°
Operation temperature -30℃ ~50℃
LED Spec
 SMD3030
Dimming
0-10V,PWM,DALI,
Smart control management system
Lamp size (mm) 318*322*135.3 318*322.1*135.3
Material Die-casting Aluminum + PC lens
IP/IK rate IP66/IK08

Model No. GY318TGII-240W GY318TGII-360W GY318TGII-540W
Lamp Power (W) 240W 360W 540W
CRI (Ra) Ra70 (Ra80 optional)
Luminous Efficiency (Lm/W) >150lm/W
Input Voltage (V) AC100~277V
Frequency (Hz)
50/60 Hz
Power Factor ＞0.95
Class Class I
Beam Angle(°) 15°, 40°, 60°, 90°, 120°, 49°*21°, 70°*30°, 130°*78°
Operation temperature -30℃ ~50℃
LED Spec
 SMD3030
Dimming
0-10V,PWM,DALI,
Smart control management system
Lamp size (mm) 565*322*135.3 565*322.1*135.3 565*430.1*135.3
Material Die-casting Aluminum + PC lens
IP/IK rate IP66/IK08

Lighting solutions service:

Lighting and circuitry design, DIALux Evo layout, LitePro DLX layout.
Anti-glaring light is required more and more for applications where people don't feel comfortable with the glaring light, especially in the stadium. GY496TG series floodlight is the ideal solution for visual protection.

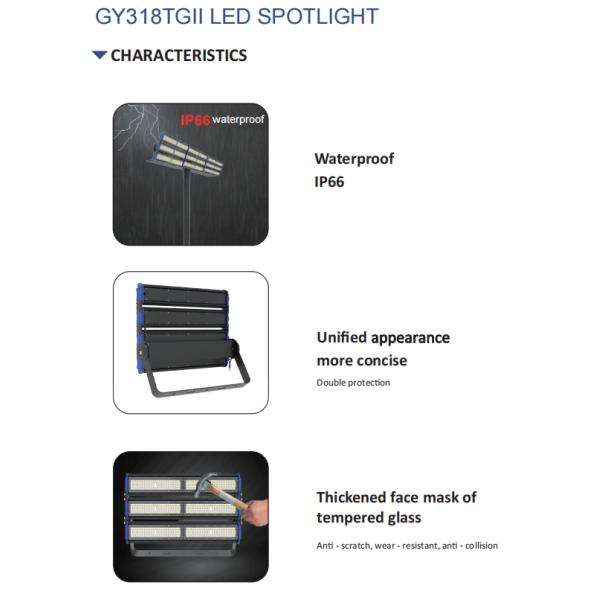

Strengthens:

1. Waterproof IP66.

2. Unified appearance, more concise. Double protection.

3. Thickened face mask of tempered glass. Anti-scratch, wear-resistant, anti-collision.

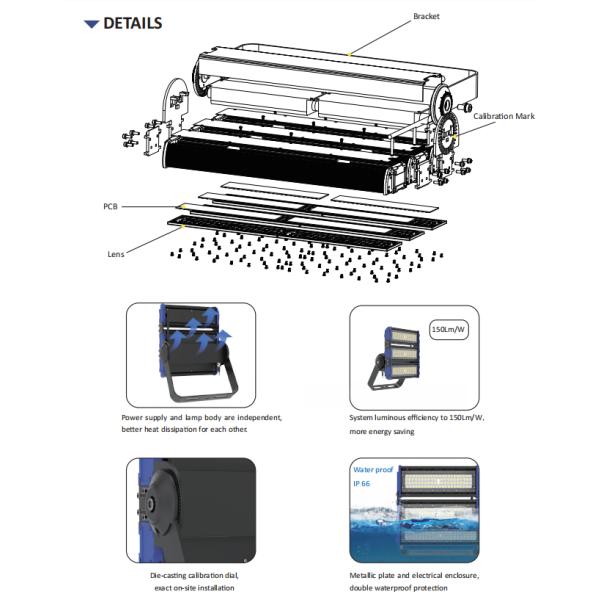

Features:

1. Power supply and lamp body are independent, with better heat dissipation for each other.

2. System luminous efficiency to 150Lm/W, more energy saving.

3. Die-casting calibration dial, exact on-site installation.

4. Metallic plate and electrical enclosure, double waterproof protection.

IP66 Waterproof 480W 150lm/W Outdoor Stadium Lighting 5700KIP66 Waterproof 480W 150lm/W Outdoor Stadium Lighting 5700KIP66 Waterproof 480W 150lm/W Outdoor Stadium Lighting 5700KIP66 Waterproof 480W 150lm/W Outdoor Stadium Lighting 5700KIP66 Waterproof 480W 150lm/W Outdoor Stadium Lighting 5700K
