VICTOR 201 Portable Digital Multimeter Dmm Multimeter AC 200V/500V
VICTOR 201 Portable Digital Multimeter Dmm Multimeter AC 200V/500V
VICTOR 201 Portable Digital Multimeter Dmm Multimeter AC 200V/500V
VICTOR 201 Portable Digital Multimeter Dmm Multimeter AC 200V/500V
VICTOR 201 Portable Digital Multimeter Dmm Multimeter AC 200V/500V
VICTOR 201 Portable Digital Multimeter Dmm Multimeter AC 200V/500V
VICTOR 201 Portable Digital Multimeter Dmm Multimeter AC 200V/500V
VICTOR 201 Portable Digital Multimeter Dmm Multimeter AC 200V/500V
VICTOR 201 Portable Digital Multimeter Dmm Multimeter AC 200V/500V
VICTOR 201 Portable Digital Multimeter Dmm Multimeter AC 200V/500V
VICTOR 201 Portable Digital Multimeter Dmm Multimeter AC 200V/500V
VICTOR 201 Portable Digital Multimeter Dmm Multimeter AC 200V/500V
Specifications
Brand Name :
VICTOR
Model Number :
VICTOR 201
Certification :
CE
Place of Origin :
CHINA
MOQ :
100PCS
Price :
negotiable
Payment Terms :
Western Union, T/T
Delivery Time :
5-8DAYS
Packaging Details :
CARTON
Power Supply :
one 9V battery(6F22 or equivalent model):
Weight :
156g(include battery)
Max Display :
1999, update 2~3 times per second.
PRODUCT MODEL :
VICTOR 201
Displaying :
LCD displaying
SIZE :
150mm ×73.5mm × 35mm.
Description

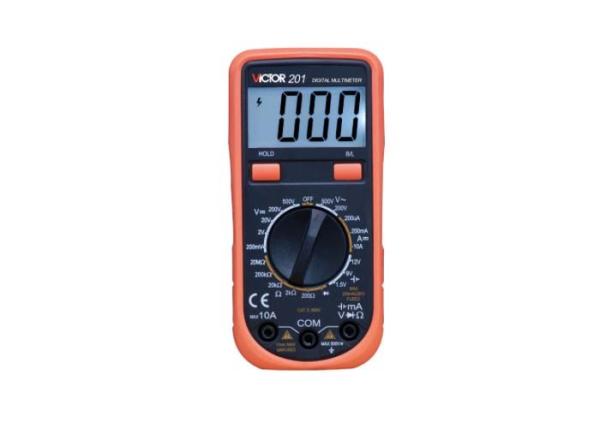

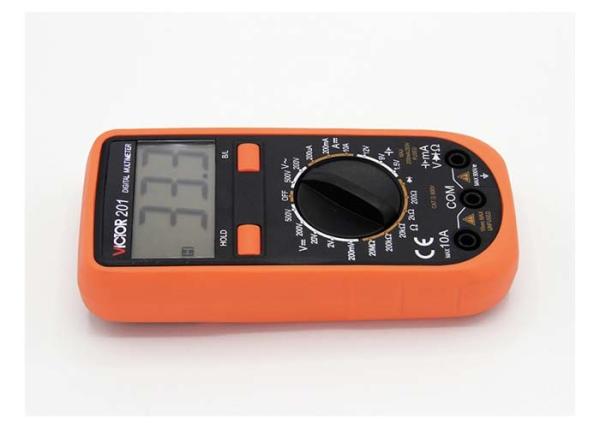

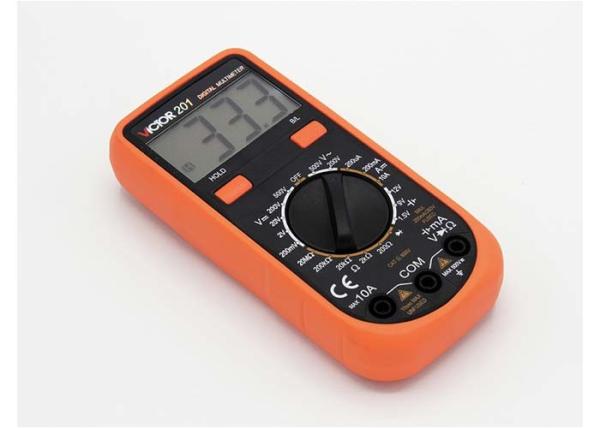

Digital Multimeter VICTOR 201 Stable And High Performance

The instrument is a featured , stable and security small hand-held 31/2 digital multimeter. The instrument has the function of measuring DCV, ACV, DCA, resistance, diode and battery .thus it is a portable and desirable tool for users .The instrument takes dual-integral A/D converter as key point, is an excellent tools. The operation manual includes the relevant safety information and warning notice , Please read it carefully and strictly follow all the precautions .

Specifications of Digital Multimeter VICTOR 201:

The maximum voltage is 500V rms between the Voltage input terminal and ground .

10A terminal : without fuse .

MA terminal fuse : φ5×20mm 200mA/250V

Range selector : manual

Backlight function : manual put on & off

Maximum display : 1999, update 2~3 times per second.

Polarity display : negative polarity input display .

Over range display : 1 .

Data hold function : left bottom of LCD displays H .

Low battery: LCD displays symbol.

Built-in battery : 9V NEDA1604 /6F22 /006P.

Operation temperature: 0℃ ~40℃ ( 32℉ ~104℉ )

Storage temperature: - 10℃ ~50℃ (14℉ ~122℉ )

Dimension : 150mm ×73.5mm × 35mm.

Gross weight: Approx:156g(include battery)

Technical date of Digital Multimeter VICTOR 201:

basic function range VICTOR 201 VICTOR 202 VICTOR 203
DC Voltage 200mV/2V/20V/200V ±(0.5%+2) ±(0.5%+2) ±(0.5%+2) 　 　 　
500V ±(0.8%+2) ±(0.8%+2) ±(0.8%+2)
AC Voltage 200V/500V ±(1.2%+10) ±(1.2%+10) ±(1.2%+10)
DC Current 200uA ±(1.0%+2) 　 　
2mA/20mA 　 ±(1.0%+2) ±(1.0%+2)
200mA ±(1.2%+2) ±(1.2%+2) ±(1.2%+2)
10A ±(2.0%+5) ±(2.0%+5) ±(2.0%+5)
Resistance 200Ω ±(0.8%+5) ±(0.8%+5) ±(0.8%+5)
2kΩ/20kΩ/200kΩ ±(0.8%+2) ±(0.8%+2) ±(0.8%+2)
20MΩ ±(1.0%+5) ±(1.0%+5) ±(1.0%+5)
200MΩ 　 ±[5.0%+20] 　
Celsius (-20~1000)℃ 　 　 ±(1.0%+3)
Fahrenheit (0~1832)T 　 　 ±(1.0%+4)
Spection Function 　 　 　 　
Diode test 　 yes yes yes
Backlight 　 yes yes yes
Data hold 　 yes yes yes
Continuity 　 　 yes yes
200mA protection 　 yes yes yes
Square Wave output 　 　 yes 　
Celsius&Fahrenheit 　 　 　 yes
Battery measurement 　 yes 　 　
　 　 　 　 　

VICTOR 201 Portable Digital Multimeter Dmm Multimeter AC 200V/500V

FAQ

1. What is our company MOQ?

As for now it is flexible, but it affects prices.

2. What's the best payment term?

Such as Western Union,T/T, L/C,Paypal, Bank Transfer, , etc.

3.What's our company sample policy?

We will send you some samples with pleasure,but you need to pay for it.

4. What is our shipment and delivery term?

Shipment: Professional DHL/Fedex/TNT/UPS and other special line.

Delivery term:Within 4-7 days after payment by (DHL/TNT/UPS/EMS/Fedex)
