Long Lifespan High Frequency Welding Machine Plastic / Rubber Cutting Knife
Long Lifespan High Frequency Welding Machine Plastic / Rubber Cutting Knife
Long Lifespan High Frequency Welding Machine Plastic / Rubber Cutting Knife
Long Lifespan High Frequency Welding Machine Plastic / Rubber Cutting Knife
Specifications
Brand Name :
OURSULTRASONIC
Model Number :
ARS-DHJ-300
Certification :
CE and FCC
Place of Origin :
china
Voltage :
110V or 220V
Frequency :
35KHZ
Warranty :
1 year
Usage :
Plastic Welding, Ultrasonic Cutting
Application :
PE PP PVC Plastic Cutting
Weight :
15kg
Item :
ultrasonic cutting knife for plastic
Range :
ultrasonic welder
Welding Area :
Products Size
key word :
ultrasonic cutting knife for plastic
Description

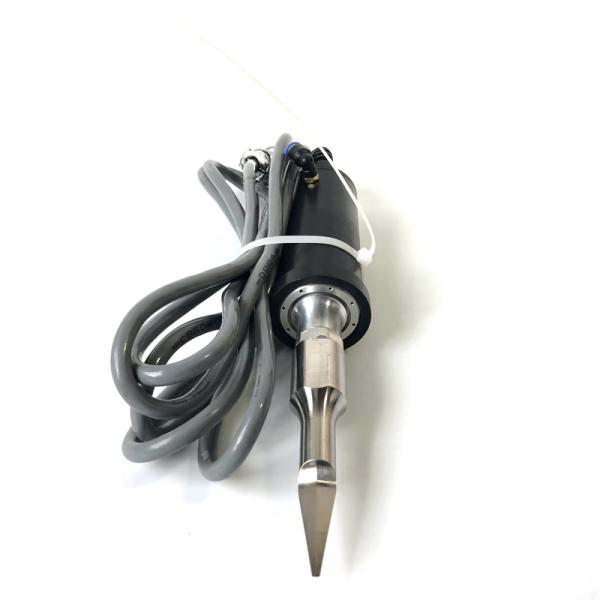

ultrasonic cutting knife for plastic and rubber 35khz 300W handheld ultrasonic knife

The basic composition of the acoustic cutting machine is as follows. Ultrasound transducer, ultrasonic horn, ultrasonic cutting knife, ultrasonic generator.

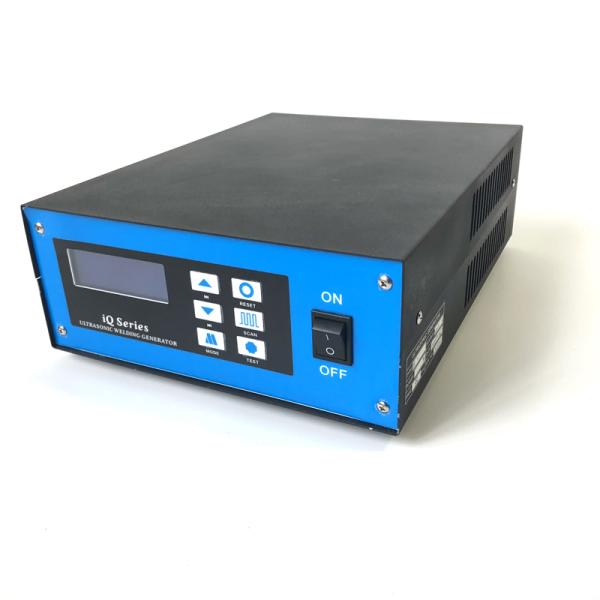

The ultrasonic generator
The municipal electricity is converted into high frequency and high voltage AC current, which is fed to the ultrasonic transducer. Ultrasound transducer is equivalent to energy conversion device, which can convert the input electric energy into mechanical energy, that is, ultrasound. The ultrasonic transducer moves back and forth longitudinally, and the frequency of the telescopic motion is equal to the frequency of high frequency AC current supplied by the driving power supply.

Traditional cutting uses cutting tools with sharp edges to press the material to be cut. The pressure is concentrated at the edge, and the pressure is very high, which exceeds the shear strength of the material being cut. The molecular bond of the material is pulled open and cut. Because the material is pulled apart by strong pressure, the cutting edge of the cutting tool should be very sharp, and the material itself should bear relatively large pressure. The cutting effect of soft and elastic materials is not good, and it is more difficult for viscous materials.

Model Power(W) Frequency (KHz)
ARS-DHJ-300 300W 15KHz/20khz/28khz/40khz
ARS-DHJ-500 500W 15KHz/20khz/28khz/40khz
ARS-DHJ-800 800W 15KHz/20khz/28khz/40khz
ARS-DHJ-900 900W 15KHz/20khz
ARS-DHJ-1000 1000W 15KHz/20khz

Long Lifespan High Frequency Welding Machine Plastic / Rubber Cutting KnifeLong Lifespan High Frequency Welding Machine Plastic / Rubber Cutting Knife

ultrasonic cutting knife for plastic and rubber 35khz 300W handheld ultrasonic knife
