PE PVC PP ABS Material Ultrasonic Welding Polycarbonate 40kHz Welder Long Lifespan
PE PVC PP ABS Material Ultrasonic Welding Polycarbonate 40kHz Welder Long Lifespan
PE PVC PP ABS Material Ultrasonic Welding Polycarbonate 40kHz Welder Long Lifespan
PE PVC PP ABS Material Ultrasonic Welding Polycarbonate 40kHz Welder Long Lifespan
Specifications
Brand Name :
Ours
Model Number :
ARS-SLHJ-3200W15
Certification :
CE AND FCC
Place of Origin :
ShenZhen China
MOQ :
1set
Price :
USD3900/SET-USD4100/SET
Payment Terms :
T/T, Western Union, PAYPAL
Supply Ability :
10000set
Delivery Time :
2-3 days
Packaging Details :
Carton box or plywood box
Machine power :
3200W
voltage :
110v or 220V
Tool head :
no have
FR :
15KHZ
Customiazaion :
Accepted
Usage :
Plastic Welding
OEM :
Acceptable
Package Weight :
150kg
Description

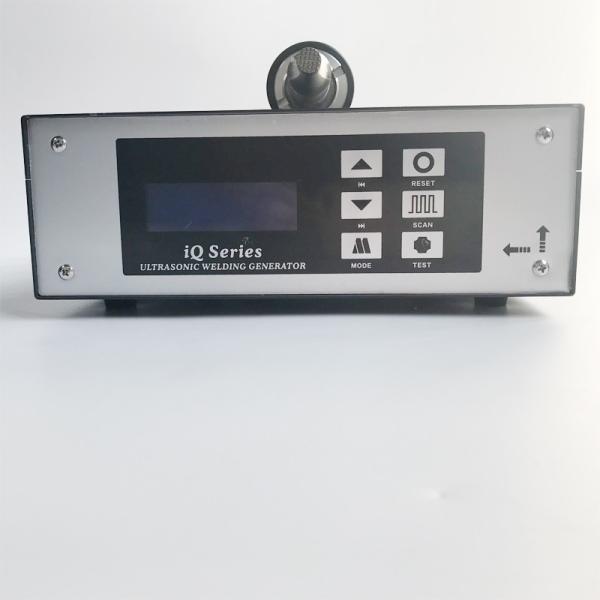

Hand-Held 40kHz Ultrasonic Welder for plastic welding machine PE PVC PP ABS material

[Ultrasound spot welding machine] Operation method:
Firstly, connect the ultrasonic output plug, connect 220V power supply after plugging in the power plug, turn on the power switch (power indicator light), and adjust the panel time according to the product requirements. Pick up the handle and press the handle button to check whether the ultrasound is normal {0.5A is normal when the ammeter on the panel is idle}. When the product is operated, the ultrasonic handle is held vertically to be placed on the product, and the button of the handle is pressed at the same time when the point force is applied. At this time, the ultrasonic wave reaches the set time and the product is welded. When the production task is completed, turn off the power supply.
Characteristic of the whole machine

The whole machine is light, compact and easy to put in and put in.
Welding head position is hand-held, flexible and convenient to operate.
It is suitable for chain welding, spot welding, sewing and welding edge.
It has unique effect on multi-point riveting of irregular plastic products.

Type Power(W) Frequency (KHz)
ARS-SLHJ-1500W15 1500W 15KHZ
ARS-SLHJ-1500W20 1500W 20KHZ
ARS-SLHJ-1800W15 1800W 15KHZ
ARS-SLHJ-1800W20 1800W 20KHZ
ARS-SLHJ-2000W15 2000W 15KHZ
ARS-SLHJ-2600W15 2600W 15KHZ
ARS-SLHJ-2600W20 2600W 20KHZ
ARS-SLHJ-3200W15 3200W 15KHZ
ARS-SLHJ-4200W15 4200W 15KHZ

PE PVC PP ABS Material Ultrasonic Welding Polycarbonate 40kHz Welder Long LifespanPE PVC PP ABS Material Ultrasonic Welding Polycarbonate 40kHz Welder Long Lifespan

Hand-Held 40kHz Ultrasonic Welder for plastic welding machine PE PVC PP ABS material
