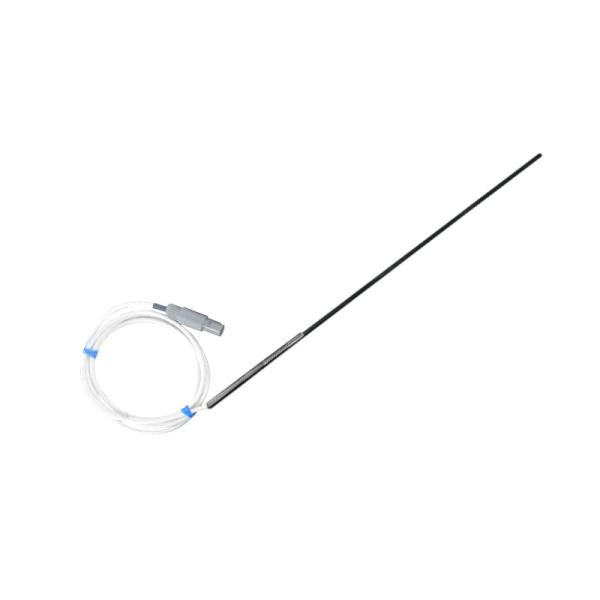

High Precision Industrial Sanitary 4 Wire PT1000 PT100 RTD PRT Probe for Temperature Testing Control
High Precision Industrial Sanitary 4 Wire PT1000 PT100 RTD PRT Probe for Temperature Testing Control
High Precision Industrial Sanitary 4 Wire PT1000 PT100 RTD PRT Probe for Temperature Testing Control
High Precision Industrial Sanitary 4 Wire PT1000 PT100 RTD PRT Probe for Temperature Testing Control
High Precision Industrial Sanitary 4 Wire PT1000 PT100 RTD PRT Probe for Temperature Testing Control
High Precision Industrial Sanitary 4 Wire PT1000 PT100 RTD PRT Probe for Temperature Testing Control
High Precision Industrial Sanitary 4 Wire PT1000 PT100 RTD PRT Probe for Temperature Testing Control
High Precision Industrial Sanitary 4 Wire PT1000 PT100 RTD PRT Probe for Temperature Testing Control
High Precision Industrial Sanitary 4 Wire PT1000 PT100 RTD PRT Probe for Temperature Testing Control
High Precision Industrial Sanitary 4 Wire PT1000 PT100 RTD PRT Probe for Temperature Testing Control
High Precision Industrial Sanitary 4 Wire PT1000 PT100 RTD PRT Probe for Temperature Testing Control
High Precision Industrial Sanitary 4 Wire PT1000 PT100 RTD PRT Probe for Temperature Testing Control
Specifications
Warranty :
1 year
Customized support :
OEM, ODM
Place of Origin :
Anhui, China
Brand Name :
ZHICE-ELEC
Model Number :
ARK22
Material :
/
Color :
/, metal
Type :
/, PRT
Product name :
Sanitary RTD Probe
Application :
Temperature testing & control
Temperature range :
-200-650℃
Calibration certificate :
can provided
Casing material :
316L Stainless Steel
Name :
RTD platinum resistance sensors
Accuracy :
1/10B;±0.03℃,1/3B,±0.1℃,A:±0.15℃
OEM :
Acceptable
MOQ :
1 piece
Price :
$112.00/meters >=5 meters
Description
High Precision Industrial Sanitary 4 Wire PT1000 PT100 RTD PRT Probe for Temperature Testing Control
High Precision Industrial Sanitary 4 Wire PT1000 PT100 RTD PRT Probe for Temperature Testing Control
ARK22 Series High Precision PRT Probe with temperature range up to 650°C and excellent accuracy of ±0.1°C. ARK22 precision platinum resistance thermometer is shock and impact resistant, accurate and durable. ZHICE-ELEC is committed to the research and development and production of high-precision temperature measurement sensors, which are widely used in aerospace, petroleum and petrochemicals, universities, laboratories, metrology institutes, new energy, automobile manufacturing, biomedical, intelligent buildings and other industries. ZHICE have compelete production line from parts assembly to sensor calibration, and we aims to provide high precision, high durability temperature products.
Model
ARK22
PR1632
ARK22
AR22
AR22
Name
Sanitary temperature sensor
Bullet-wrappedtemperature sensor
With a miniature DlN connection interface temperature sensor
Air temperature sensor
Fast response copper tip temperature sensor
Platinum resistance count
Single, double
Cannula
Clamp type mounting sleeve
Bullet encapsulation
Miniature DlN pairing connector with screw terminal threaded mounting bushing(thread specified)
With vent probe tip.optional threaded mounting casing
Copper alloy tip,316L probe rod(Optional thread mounting)
Nominal resistance
PT100，PT1000..……
Accuracy
1/10B:士0.03°C，1/3B:士0.1°C，A:士0.15°C
Range
-200-650°C(optional)
Casing material
316L Stainless steel
316L stainless steel(tip copper alloy)
Casing size
Diameter (3/3.2/4/5/6/6.4mm)*Length (specified)mm
The diameter is about 3.5mmLength (specified)mm
Diameter (3/4/5/6/6.4mm or as specified)*Length (specified)mm
diameter(6/6.4mm or specified)*Length(specified)mm
Diameter (5/6/6.4mm or as specified)* Length (specified)mm
Lead material
TFE, Stainless steel braid
Lead length
0.5-1、2、3、5m,or designation
Lead wire
2-wire,3-wire, 4-wire
Lead shield
Unshielded, with shielding
Lead terminal
Bare wire, spade, straight pin terminal, banana plug, navigation plug and other special terminals
Special Requirements
Customization Available
