Specifications
Warranty :
12 months
Customized support :
OEM
Place of Origin :
Anhui, China
Brand Name :
ZHICE-ELEC
Material :
/
Color :
/
Power :
/
Product name :
Multi-channel Temperature Humidity Data Acquisition Unit
Model :
1611A-HT
Application :
multi-channel temperature and humidity testing
Temperature sensor :
PT100
Humidity sensor :
HT85-S/HC2A-S
Sensor amount :
15 temperature and 4 humidity
Accuracy :
HT85-S: ≤±2.0%RH(0-90%RH@25℃)
Resolution :
0.01℃
Keyword :
Ambient temperature and humidity calibration system
Size :
194.5*148.6*53mm
MOQ :
1 piece
Price :
$857.00/units 5-9 units
Description
Constant Temperature and Humidity Chamber Multichannel Temperature Humidity Data Acquisition Unit
Constant Temperature and Humidity Chamber Multichannel Temperature Humidity Data Acquisition Unit

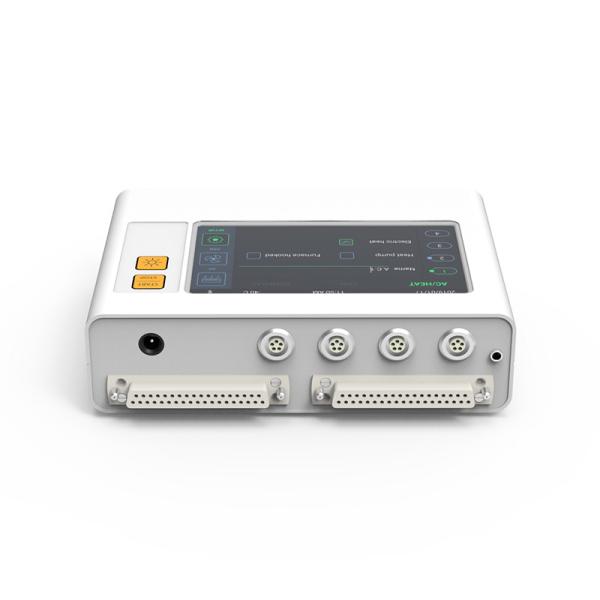

1611A-HT multi-channel temperature and humidity detector, 15-channel resistance measurement, 4-channel humidity measurement, battery powered, real-time temperature and humidity display. The 5-inches LCD touch screen display and large memory can store data so that it can be work independently without the computer and realize the data collection and real-time display of on-site temperature and humidity data. Satisfy customers' requirements for measurement accuracy, ease of use and portability at the same time.
1611A-HT multi-channel temperature and humidity acquisition unit is widely used for temperature deviation, temperature uniformity and temperature fluctuation testing of environmental testing equipment such as constant temperature and humidity chambers, drying chambers, incubators, climate aging chambers,mold test chamber, salt spray test chamber, corrosive gas test chamber, high and low temperature test chamber, alternating heat and humidity test chamber, etc.
Temperature
Humidity
Sensor Type
PT100
HT85-S
HC2A-S
Range
-80-300℃
0-100%RH
0-100%RH
Accuracy
±(0.15℃+0.002|t|)
±2.0%RH
±0.8%RH
Resolution
0.01℃
O.O1%RH
Number of sensors
15
4
Wiring
DB37 (2 sets, 9+6)
aviation plug （4）
Sampling Speed
≥1s
Storage
Inner memory or USB disk
Communication
USB
Size
163*120*43mm
Display
5 inches touch screen, 64*108mm
Power
Built-in rechargeable lithium battery, capacity approximately 10,000 mAH
Battery life
≥20H
