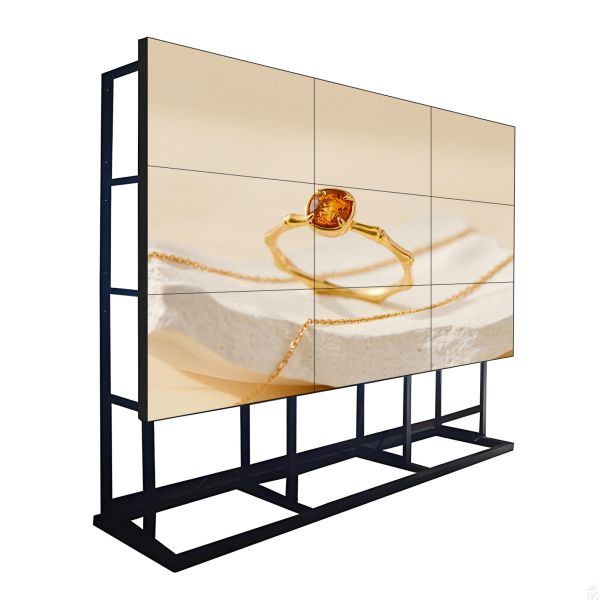

55 Inch Ultra Narrow Bezel LCD Video Wall Commercial Display 1.7mm Splicing Screen 4K UHD Advertising
55 Inch Ultra Narrow Bezel LCD Video Wall Commercial Display 1.7mm Splicing Screen 4K UHD Advertising
Specifications
Ratio :
16:9
Price :
$ 279 - 293 / Unit
Certification :
FCC CE CCC RoHS ISO 9001
Delivery Time :
3-15 Work Days
Packaging Details :
Standard Carton with Foam Cushioning
Place of Origin :
China
Supply Ability :
Over 8000 Units / Month
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Brand Name :
YOMURA
Input Voltage :
AC 200-240V 50/60HZ
Model Number :
6255S5
MOQ :
4
Size :
55 Inch
Remote Control Technology :
Infrared
Seam :
1.8mm
Chromatic Number :
8Bit 16.7M
Description
55" Ultra Narrow Bezel LCD Video Wall Commercial Display
55" Ultra-Narrow Bezel LCD Video Wall Commercial Display is engineered for high-end commercial and mission-critical video wall applications. Featuring a 1.8mm ultra-narrow bezel, advanced signal transmission options, and an industrial-grade panel, it delivers exceptional visual continuity, precise color reproduction, and long-term operational stability. It is an ideal solution for control rooms, command centers, and large-scale commercial display projects.
Technical Specifications
Item Specification
Model 6255S5‑(1.8mm)
Screen Size 55 inch
Bezel Width 1.8 mm (combined)
Resolution 1920 × 1080
Backlight Type Direct LED (OD35)
Brightness 420 cd/m² ±30
Contrast Ratio 4000:1
Response Time 6.5 ms
Refresh Rate 60 Hz
Viewing Angle 178° (H) / 178° (V)
Color Gamut 75%
Color Depth 8‑bit, 16.7M colors
Uniformity 88%
Operating Time 24/7
Panel Orientation Landscape / Portrait
Panel Lifetime ≥50,000 hours
Interface & Control
Interface Description
HDMI Input 1 × HDMI, up to 3840×2160 @30Hz
RJ45 Video Input 1 × Network video input (up to 50m @1080p)
RS232 RJ45 RS232 IN/OUT for control & debugging
USB 1 × USB 2.0 (upgrade & media playback)
Audio Output Supported
Power & Environment
  • Power Supply: AC 200-240V, 50/60Hz
  • Max Power Consumption: ≤138W
  • Standby Power: <0.3W
  • Operating Temperature: 0°C - 45°C
  • Storage Temperature: ‑20°C - 50°C
Product Highlights
55 Inch Ultra Narrow Bezel LCD Video Wall Commercial Display 1.7mm Splicing Screen 4K UHD Advertising
Ultra‑Narrow 1.8mm Bezel Design
  • Combined bezel width of only 1.8mm
  • Minimizes visual separation between panels
  • Creates a nearly seamless large-format video wall
55 Inch Ultra Narrow Bezel LCD Video Wall Commercial Display 1.7mm Splicing Screen 4K UHD Advertising
Dual Signal Transmission: RJ45 + HDMI
  • Supports HDMI and network (RJ45) video transmission
  • Network signal reduces cabling cost and simplifies installation
  • Compatible with network video distributors and matrices
55 Inch Ultra Narrow Bezel LCD Video Wall Commercial Display 1.7mm Splicing Screen 4K UHD Advertising
Accurate Color & Wide Color Gamut
  • 75% color gamut with precise color calibration
  • Natural color reproduction suitable for exhibitions and conference environments
  • Consistent image quality across multiple panels
55 Inch Ultra Narrow Bezel LCD Video Wall Commercial Display 1.7mm Splicing Screen 4K UHD Advertising
Anti‑Glare & Wide Viewing Angle
  • Matte anti‑glare panel reduces reflections
  • 178° horizontal and vertical viewing angle
  • Maintains color consistency from different perspectives
