46 55 Inch 1.7mm Ultra Narrow Bezel LCD Video Wall 2x2 3x3 LCD Splicing Screen
46 55 Inch 1.7mm Ultra Narrow Bezel LCD Video Wall 2x2 3x3 LCD Splicing Screen
Specifications
Certification :
CE RoHS CCC FCC ISO9001
Backlight Type :
DLED
Packaging Details :
Standard Carton with Foam Cushioning
Lcd Panel :
A-si TFT LCD panel
Brightness :
450 cd/m² (Typ.)
Model Number :
624655S3
Ratio :
16:9
Chromatic Number :
8Bit 16.7M
Payment Terms :
T/T,D/A,L/C,D/P,Western Union
Brand Name :
YOMURA
Place of Origin :
China
MOQ :
4
Price :
$ 312 - 410 / Unit
Resolution Ratio :
1920(RGB)×1080, FHD
Screen Size :
46 55 inches
Refresh Rate :
60Hz
Delivery Time :
3-15 Work Days
Supply Ability :
Over 30000 Units / Month
Bezel Width :
1.7 mm
Rated Power :
≤175W
Description
46" 55" 1.7mm Ultra Narrow Bezel LCD Video Wall 2x2 3x3 Splicing Screen
Professional-grade 55-inch LCD display panel, specifically engineered for ultra-seamless video wall installations. Featuring an ultra-narrow bezel width of just 1.7mm and built with industrial-grade reliability, it is ideal for control rooms, corporate lobbies, and digital signage. The panel supports flexible configurations such as 2x2, 3x3, and larger MxN matrix arrangements to create expansive, high-impact visual displays.
Product Overview
Item Specification
Screen Size 55 inch (46-inch model details not in this sheet, but may be available in the product line)
Bezel Width (Seam) 1.7mm
Panel Technology A-si TFT-LCD, IPS
Aspect Ratio 16:9
Surface Treatment Matte anti-glare
Display Parameters
Parameter Value / Description
Resolution 1920 * 1080 (FHD)
Brightness 500 cd/m² (Typ.)
Contrast Ratio 4500:1 (Typ.)
Color Depth 8bit, 16.7M colors
Color Gamut sRGB 98%, NTSC 75%
Pixel Pitch 0.63mm * 0.63mm (~40 PPI)
Viewing Angle 178° (H) / 178° (V)
Response Time 8ms (G to G)
Refresh Rate 60Hz
Backlight Type DLED (Direct LED)
Default Color Temperature 6500K
Lifespan 50,000 hours
Interfaces & Control
Type Interface / Function Description
Input HDMI *1 Supports up to 3840*2160@30Hz, 10bit/8bit color formats
Input RJ45 (Network) *1 Compatible with Nova Es series / NMX matrix; max. 50m transmission @1080p60
Control RS232 IN *1 (RJ45) For PC control or IR receiver connection
Control RS232 OUT *2 (RJ45) For daisy-chain control or signal loop-out
Other USB *1 Firmware update / USB media playback
Remote Infrared Remote Effective distance <10 meters
Product Images

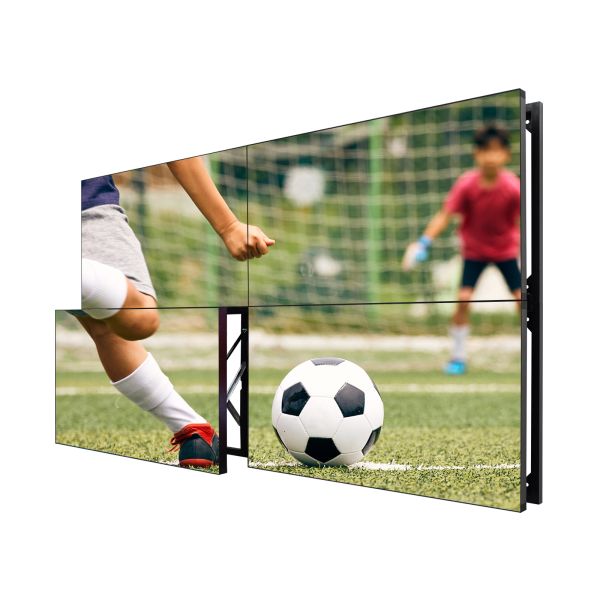

46 55 Inch 1.7mm Ultra Narrow Bezel LCD Video Wall 2x2 3x3 LCD Splicing Screen 46 55 Inch 1.7mm Ultra Narrow Bezel LCD Video Wall 2x2 3x3 LCD Splicing Screen 46 55 Inch 1.7mm Ultra Narrow Bezel LCD Video Wall 2x2 3x3 LCD Splicing Screen 46 55 Inch 1.7mm Ultra Narrow Bezel LCD Video Wall 2x2 3x3 LCD Splicing Screen 46 55 Inch 1.7mm Ultra Narrow Bezel LCD Video Wall 2x2 3x3 LCD Splicing Screen 46 55 Inch 1.7mm Ultra Narrow Bezel LCD Video Wall 2x2 3x3 LCD Splicing Screen 46 55 Inch 1.7mm Ultra Narrow Bezel LCD Video Wall 2x2 3x3 LCD Splicing Screen
