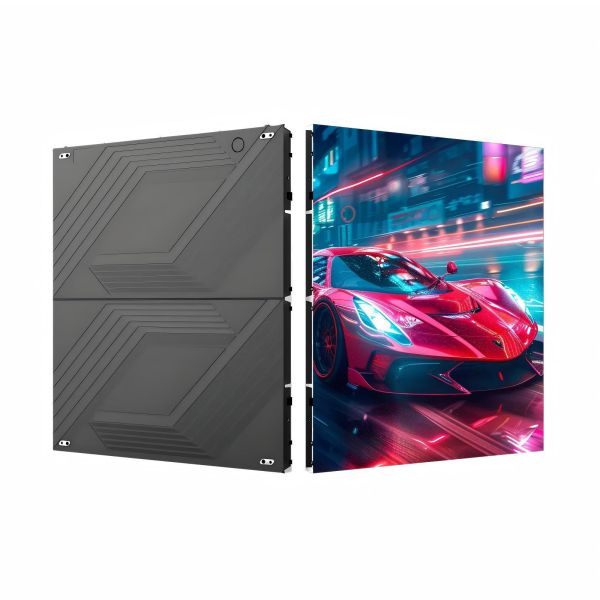

P1.56 COB LED Video Wall Indoor Monitoring Display 4K UHD COB Monitoring Room LED Panel
P1.56 COB LED Video Wall Indoor Monitoring Display 4K UHD COB Monitoring Room LED Panel
Specifications
White Balance Brightness :
600 cd/m² (Standard)
Price :
$ 265 - 280 / Unit
COB Board Dimensions :
150 × 168.75 mm
Place of Origin :
China
Packaging Details :
Standard Carton with Foam Cushioning
Recommended Distance :
4.7 – 15 m
Model Number :
cl1516156
Supply Ability :
Over 20000 Units / Month
Delivery Time :
3-15 Work Days
LED Package :
COB (Chip-on-Board)
Pixel density :
409,600 points/m²
Pixel Pitch :
P1.56
Certification :
CCC CE FCC RoHS ISO 9001
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Input Voltage :
AC 100–240V, 50/60Hz
Brand Name :
YOMURA
MOQ :
4
Native Contrast Ratio :
≥10000:1
Description
COB LED Video Wall Module P1.56 Indoor Monitoring Room LED Display Screen
COB LED Video Wall Module P1.56 - COB Indoor Monitoring Room LED Display Screen
High contrast • Ultra-wide viewing angle • Front maintenance • IP54 protection
P1.56 COB LED Video Wall Indoor Monitoring Display 4K UHD COB Monitoring Room LED Panel

COB (Chip-on-Board) technology integrates LED chips directly onto the circuit board, delivering superior durability, higher contrast, and seamless visuals. The P1.56 COB LED module is specifically engineered for indoor monitoring rooms, control centers, corporate showrooms, and large conference halls - where image clarity and reliability are non-negotiable.

P1.56 COB LED Video Wall Indoor Monitoring Display 4K UHD COB Monitoring Room LED Panel
Excellent Color Reproduction

Excellent color reproduction is the hallmark of COB technology. Unlike traditional SMD displays, COB eliminates individual lens reflections, delivering a smooth, particle-free image - perfect for close-up viewing in monitoring rooms.

What you get:
  • 16-bit high grayscale processing - restores every subtle color transition
  • High contrast - realistic, lifelike images without gray washout
  • No smearing, no ripples - clean motion performance
P1.56 COB LED Video Wall Indoor Monitoring Display 4K UHD COB Monitoring Room LED Panel
160° Ultra-Wide Viewing Angle

160° ultra-wide viewing angle ensures that operators and audiences see the same accurate colors and brightness, even when viewing from the sides. No distortion, no color shift - just reliable visibility across the entire room.

P1.56 COB LED Video Wall Indoor Monitoring Display 4K UHD COB Monitoring Room LED Panel
Front Maintenance

Front maintenance is a game-changer for indoor installations.

  • No rear access needed - saves valuable wall space
  • Magnetic attachment - modules can be removed and replaced using a simple suction tool
  • One-person operation - dramatically reduces maintenance time and labor costs
P1.56 COB LED Video Wall Indoor Monitoring Display 4K UHD COB Monitoring Room LED Panel
Standardized Cabinet Sizes

The COB series offers two standardized cabinet sizes to fit different screen dimensions and aspect ratios:

Cabinet Model Dimensions (W×H×D) Applicable Pixel Pitches
27B 600 × 337.5 × 39.75 mm P0.62 / P0.78 / P0.93 / P1.25 / P1.56 / P1.87
35B 600 × 675 × 39.75 mm P0.93 / P1.25 / P1.56 / P1.87

For P1.56, both 27B and 35B cabinets are available.

  • 27B - ideal for narrower or custom aspect ratio screens
  • 35B - standard choice for larger video walls
