ST-2 Electronic Universal Testing Equipment , LCD display Tensile Strength Testing Machine
ST-2 Electronic Universal Testing Equipment , LCD display Tensile Strength Testing Machine
Specifications
Brand Name :
SINOWON
Model Number :
ST-2
Certification :
CE
Place of Origin :
DONGGUAN CHINA
MOQ :
1 Set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20 Sets per Month
Delivery Time :
20 - 30 Days
Packaging Details :
Plywood Box
Max Capacity :
2KN
Test Speed :
50~600mm/min
Test Width :
140mm
Stroke Resolution :
0.005mm
Description
ST-2 Electronic Universal Testing Equipment , LCD display Tensile Strength Testing Machine

ST-2 Electronic Universal Testing Equipment , LCD display Tensile Strength Testing Machine

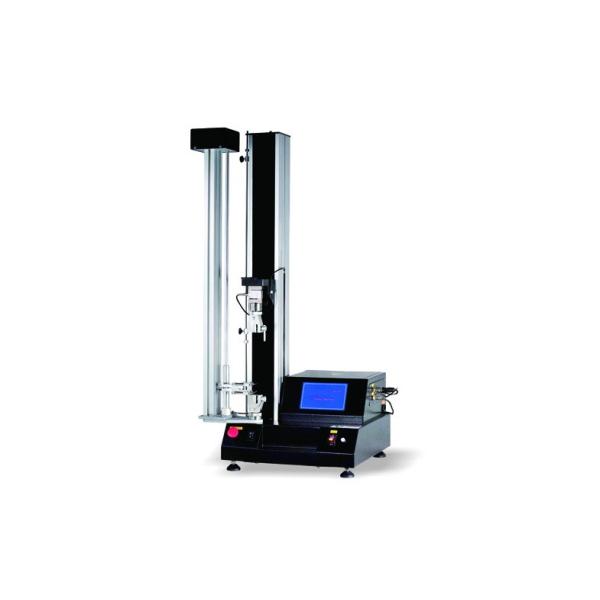

Electronic tensile testing machine uses latest design concepts and manufacture technology, reached minimum size and light weight but still consistently has test precision, easy operation, strong expansion and other advantages; can conduct tension, pressure, peeling, tearing, fixed load and other tests. Single column, most space-saving, is suitable for small size and small force specimen, has good performance when stand-alone use or computer control. It is the best choice for small capacity test.

Specification Data:

Capacity:

50N, 100N, 200N, 500N, 1KN, 2KN

(can select double capacities preparation)

Display:

LCD electronic display

Force Resolution:

1/10,000

Force Accuracy:

≤±0.5%

Stroke Resolution:

0.005mm

Control Mode:

Display operation

Test Stroke:

450mm

Test Width:

Ø140mm

Test Speed:

50~600mm/min, can set on display

with up & down fast adjustment button of grips

Force Unit Switch:

Kgf, N, Ibf, g, ton, Mpa

Stop Mode:

Overload stop, emergency stop button, specimen damage automatic stop,

upper & lower limit set automatic stop, automatic reset function

Machine Dimension:

50*52*115cm (W×D×H)

Machine Drive:

Brushless DC motor, synchronous wheel and precision ball screw drive

Power:

120W

Machine Weight:

Approx 45kg

Power Supply:

220V 50~60HZ 10A

Standard Device:

1 set of grips

Optional Device:

Printing
