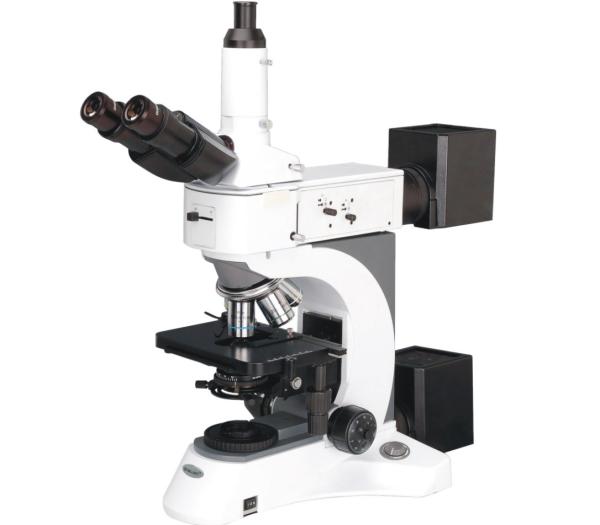

Achromatic Objective Laboratory Metallurgical Microscope instrument
Achromatic Objective Laboratory Metallurgical Microscope instrument
Achromatic Objective Laboratory Metallurgical Microscope instrument
Achromatic Objective Laboratory Metallurgical Microscope instrument
Specifications
Brand Name :
SINOWON
Model Number :
UMS-410
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Supply Ability :
100 sets per month
Delivery Time :
10 days
Packaging Details :
Plywood, Carton
Focusing :
Coaxial coarse and fine adjustment
Illuminator :
24V/100wHalogen Lamp
Power Supply :
AC220V/50Hz;110V/60Hz
Description

Achromatic Objective Laboratory Metallurgical Microscope instrument

Characteristics:

  • Laboratory metallurgical microscope, including bright field, dark field and polarization observation system.
  • Powerful transmitted and reflected system with Kohler illumination.
  • Infinitive Optical System Providing Excellent Optical Functions.
  • Ideal instrument for industry inspection and science research.

Achromatic Objective Laboratory Metallurgical Microscope instrument

Standard Delivery:

Product Name

Upright Metallurgical Microscope

Code#

Model

UMS-410(#432-174)

Eyepiece

Extral wide field eyepiece EW10X/22,tube Ø30

432@514

Objectives

Infinite Plan Achromatic 5X/0.12(BF)

Infinite Plan Achromatic 10X/0.25(BF/DF)

Infinite Plan Achromatic 20X/0.4(BF/DF)

Infinite Plan Achromatic 50X/0.75(BF)

Infinite Plan Achromatic 100X/0.8(BF)

Infinite Plan Achromatic 40X/0.65(only for UMS-420)

Infinite Plan Achromatic 100X/1.25(only for UMS-420)

432-614

432-624

432-634

432-664

432-684

432-654

432-694

Viewing Head

Inclined 30°, interpupillary distance 48-75mm

432-504

Nosepiece

Quintuple(Backward ball bearing inner locating)

432-504

Focusing

Coaxial coarse and fine adjustment,fine division 1um

432-704

Mechanical Stage

Double layer mechinical satge 186x138mm/74mmx50mm

432-404

Illuminator

24V/100wHalogen Lamp,Adustable brightness

432-804

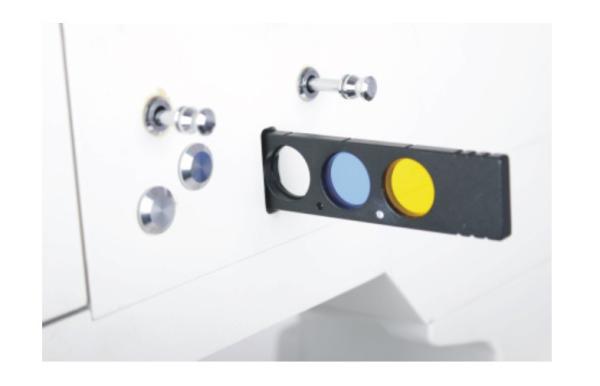

Color Filter

Yellow,Blue,Green Color Filter and Ground glass

432-304

Power Supply

AC220V/50Hz;110V/60Hz

432-814

Optional Accessories:

Product Name

Code#

Product Name

Code#

Infinite Plan Achromatic

5X/0.12(BF/DF

432-614

Infinite Plan Achromatic

40X/0.6(BF/DF

432-654

Infinite Plan Achromatic

50X/0.75(BF/DF)

432-664

Infinite Plan Achromatic 100X/0.8(BF/DF)

432-694

0.5X C-mount(Available for Digital Camera)

432-714

1X C-mount(Available for Digital Camera)

432-714

Filter ND25,ND6

432-354

USB Cmara USB-A1

484-513
