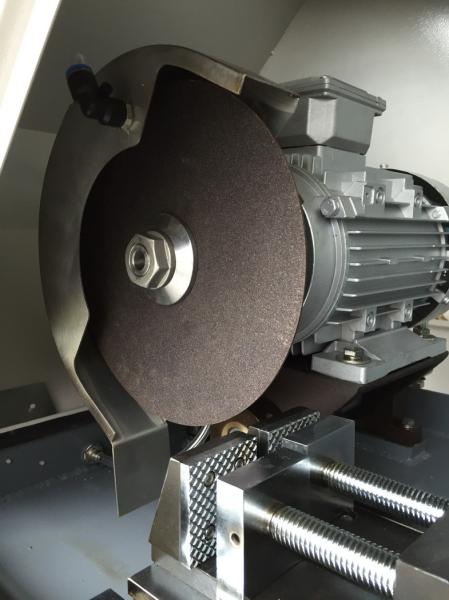

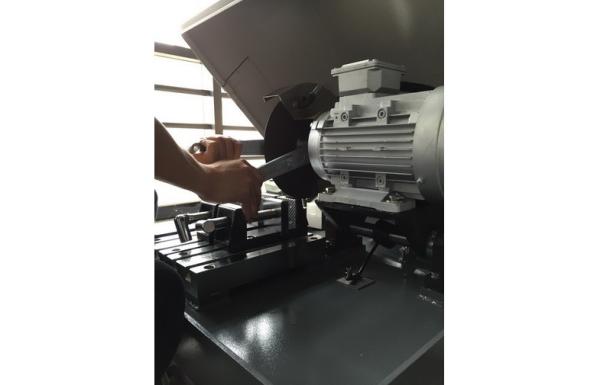

Industrial Metallographic Cutting Machine for Specimen Preparation Cut Diameter 100mm
Industrial Metallographic Cutting Machine for Specimen Preparation Cut Diameter 100mm
Industrial Metallographic Cutting Machine for Specimen Preparation Cut Diameter 100mm
Industrial Metallographic Cutting Machine for Specimen Preparation Cut Diameter 100mm
Industrial Metallographic Cutting Machine for Specimen Preparation Cut Diameter 100mm
Industrial Metallographic Cutting Machine for Specimen Preparation Cut Diameter 100mm
Industrial Metallographic Cutting Machine for Specimen Preparation Cut Diameter 100mm
Industrial Metallographic Cutting Machine for Specimen Preparation Cut Diameter 100mm
Specifications
Brand Name :
SINOWON
Model Number :
MC-100
Place of Origin :
DONGGUAN CHINA
MOQ :
1 Set
Payment Terms :
T/T
Supply Ability :
50 Sets per Month
Delivery Time :
20 - 30 Days
Packaging Details :
Plywood Box
Cutting Disc :
350 x 2.5 x 32mm
Cutting Diameter :
100mm
Rotate Speed :
2800rpm
Working Table :
T-slot Working table, Double-driving Vise
Description

Industrial Metallographic Cutting Machine for Specimen Preparation Cut Diameter 100mm

Technical Data:

Technical Specification

MC-80

MC-100

Order#

711-131

711-141

Max. Cutting Diameter

Φ80mm

Φ100mm

Grinder Specification

250 x 2 x 32mm

350 x 2.5 x 32mm

Rotation speed

2800rpm

2800rpm

Motor Specification

3.0kw

3.0kw

Power Supply

3Phase/380V/50Hz

3Phase/380V/50Hz

Dimension

720 x 700 x 620mm

720 x 700 x 620mm

Net Weight

194Kg

194Kg

Working Table

“T-slot” Working table, Double-driving Vise

Cooling Sytle

Outside Cooling system

Features:

● Order#:711-131;711-141


● Rotation speed:2800rpm


● Motor Specification:3.0kw


● Dimension:720x700x620mm


● Net Weight:194Kg


● Power Supply:3Phase/380V/50Hz

Industrial Metallographic Cutting Machine for Specimen Preparation Cut Diameter 100mm

Metallography is the study of the physical structure and components of metals, typically using microscopy.


Ceramic and polymeric materials may also be prepared using metallographic techniques, hence the terms ceramography, plastography and, collectively, materialography.
