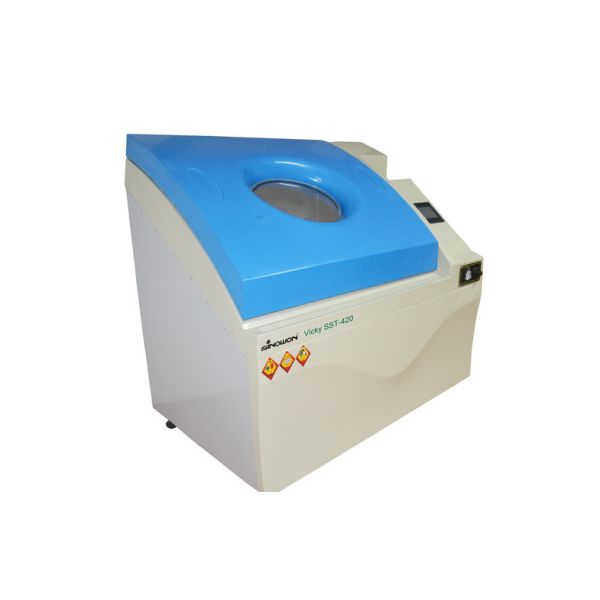

Cyclic Corrosion Test Chamber with Water Refilling System and Glass Nozzle
Cyclic Corrosion Test Chamber with Water Refilling System and Glass Nozzle
Specifications
Brand Name :
SINOWON
Model Number :
QCC-510
Certification :
CE
Place of Origin :
DONGGUAN CHINA
MOQ :
1 Set
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
20 Sets per Month
Delivery Time :
15 - 23 Days
Packaging Details :
Plywood Box
Safety device :
Over-temperature protection , leakage protection
Temperature sensor :
Platinum Resistance PT-100
Heater :
Corrosion-resistant titanium tube
Material :
Polyvinyl chloride (P.V.C)
Description

Salt Spray Test Chamber Conform But Not Limited Following Testing Standards:


※ ISO7253:2001 Paints and varnishes – Determination of resistance to neutral salt spray (fog)


※ ASTM B368-97 Standard Method for Copper-Accelerated Acetic Acid-Salt Spray (Fog) Testing (CASS Test)


※ ASTM G85 - 11 Standard Practice for Modified Salt Spray (Fog) Testing


※ ASTM D1735-99 Standard Practice for Testing Water Resistance of Coatings Using Water Fog Apparatus


※ SGM-GM4465P Water Fog Humidity Test


※ ISO9227-2012 Corrosion tests in artificial atmospheres – salt spray tests


※ DIN 50021: Salt spray testing


※ JIS Z2371 Methods of Salt Spray Testing


※ ASTM B117 Standard Practice for Operating Salt Spray Apparatus


※ ASTM B380-97(2007) Standard Test Method of Corrosion Testing of Decorative Electrodeposited Coatings by the Corrodkote Procedure

Features:


※ Powerful LCD touch screen temperature and humidity controller


※ Optional recorder used to save temperature and humidity curve graph


※ Programmable control system, continuously and cyclic spray


※ Support power off memory, available to continue testing after power recover


※ Auto/manual water refilling system make sure non-stopping testing


※ Precision glass nozzle makes sure fog diffuses well-distributed


※ Auto descending and ascending system for testing cover, makes operation easy and safe


※ Clearly observe testing samples with auto defrost system

Specifications:

Model

QCC-510

Solution Tank

60L

Power Supply

AC380V/50HZ/3P

Ambient Temp. & Humid. Range

+5℃~ +35℃ / <85%RH

Air Pressure

86~ 106Kpa

Testing Temperature

NSS ACSS 35℃±1℃ / CASS 50℃±1℃

Pressure Barrel Temperature

NSS ACSS) 47℃±1℃ /CASS 63℃±1℃

Drying Test

Chamber temperature: 40℃-70℃( ±0.5℃), Humidity: 30%-98% (±5%RH)

Temperature and Humidity Test

Chamber temperature range: RT℃-70℃(±2℃) (Low temperature: below 25℃ without humidity)

Cooling time: -70℃～RT℃ within 35min

Heating time:RT-50℃ within 60 min

Temperature uniformity: ±2℃

Humidity range: 30%-98% (uniformity: ±2%RH)

Temp. & Humid. Test

Temperature test:45℃±2℃

Humidity test:85%~98% ±2%RH

Solution Consistence

NaCi 5%

PH Value

NSS ACSS:6.5~7.2; CASS:3.0~3.2

Air pressure

1.00±0.01kgf/cm2

Temperature fluctuation

≦±0.5℃

Temperature uniformity

≦2. 0℃

Temp. & Humid. Resolution

0.1℃; 0.1%R.H.

Spray quantum

1.0~2.0ml/80cm2/h

Material

Polyvinyl chloride (P.V.C)

Heater

Corrosion-resistant titanium tube

Temperature sensor

Platinum Resistance PT-100

Controller

LCD touch screen temperature and humidity controller

Safety device

Over-temperature protection , leakage protection
