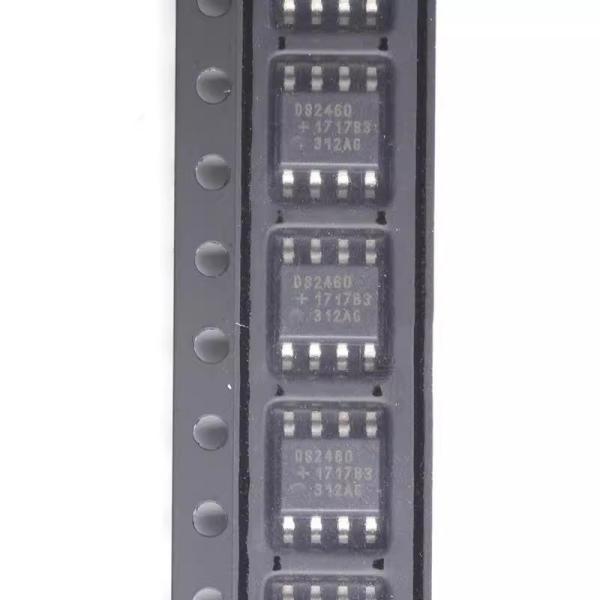

SHA-1 Coprocessor with EEPROM Erasable Programmable Read-Only memory DS2460S+T&R

GENERAL DESCRIPTION
The DS2460 SHA-1 Coprocessor with EEPROM is a
hardware implementation of the ISO/IEC 10118-3
Secure Hash Algorithm (SHA-1), eliminating the need
to develop software to perform the complex SHA
computation required for authenticating SHA devices
and for performing the validation of digitally signed
service data. The DS2460 communicates with a
microcontroller through the popular I²C interface.
Applications include hosts of access control and
electronic payment systems for token authentication
and service data validation as well as generation of
one-time-use encryption keys for short message
encryption and decryption for messages not exceed
ing the length of a SHA-1 result, which is 20 bytes.
APPLICATIONS
License Management
Secure Feature Control
System Authentication
Clone Prevention
Door Locks
Utility Meters

FEATURES
 Dedicated Hardware-Accelerated SHA Engine
for Generating SHA-1 MACs
 112 Bytes User EEPROM for Storing End
Equipment Property Data
 I²C Host Interface, Supports 100kHz and 400kHz
Communication Speeds
 Three Address Inputs for I²C Address
Assignment
 Single-Byte to 8-Byte EEPROM Write
Sequences
 64-Bit Unique Registration Number
 EEPROM Endurance: 200k Cycles per 8-Byte
Block at 25°C
 10ms max EEPROM Write Cycle
 Wide Operating Range: 2.7V to 5.5V, -40°C to +85°C
 ±4kV IEC 1000-4-2 ESD Protection Level on All
Pins

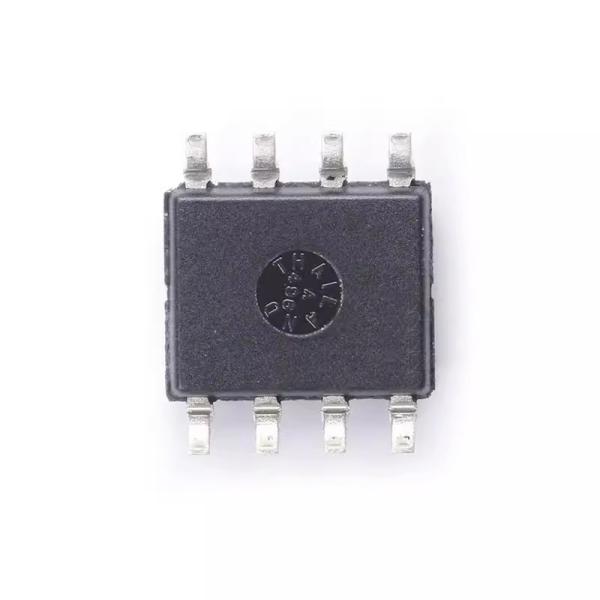

 8-Pin SO (150 mils) Package
