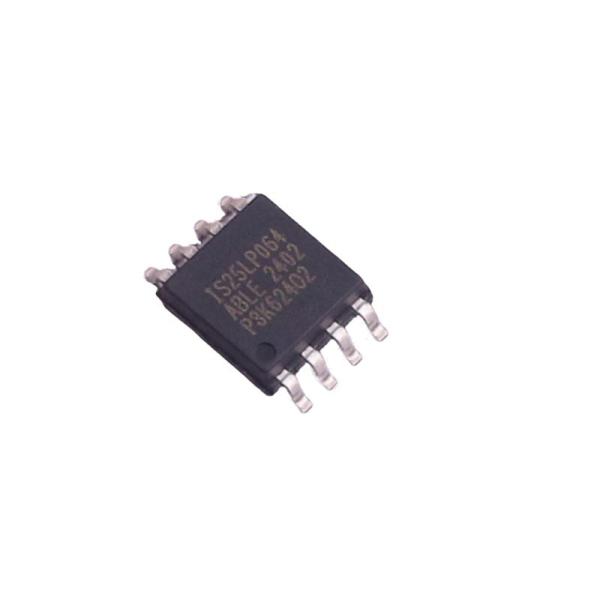

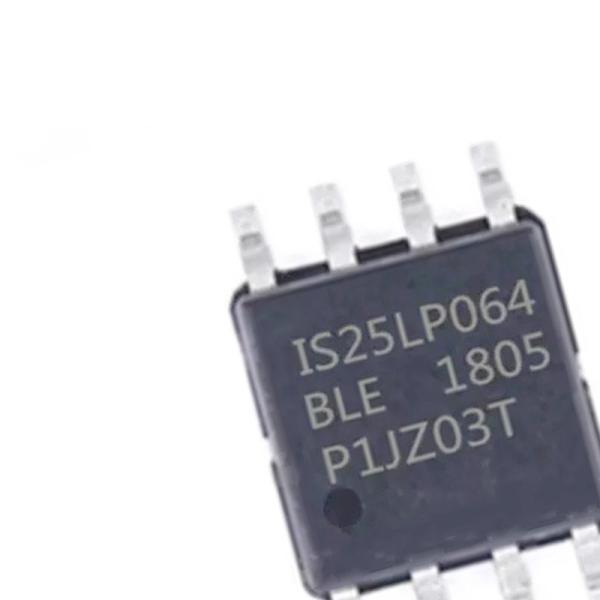

64Mb 3V SERIAL FLASH MEMORY WITH 133MHZ I/O SPI QUAD DTR INTERFACE NOR FLASH IS25LP064A-JBLE-TR

FEATURES
• Industry Standard Serial Interface - IS25LP064A: 64Mbit/8Mbyte - 256 bytes per Programmable Page - Supports standard SPI, Fast, Dual, Dual
I/O, Quad, Quad I/O, SPI DTR, Dual I/O
DTR, Quad I/O DTR, and QPI - Supports Double Transfer Rate (DTR) - Supports Serial Flash Discoverable
Parameters (SFDP)(4)
• High Performance Serial Flash (SPI) - 133Mhz Fast Read at Vcc=2.7V to 3.6V - 104Mhz Fast Read at Vcc=2.3V to 3.6V - 532MHz equivalent at QPI operation - 50MHz Normal Read - DTR (Dual Transfer Rate) up to 66MHz - Selectable dummy cycles - Configurable drive strength - Supports SPI Modes 0 and 3 - More than 100,000 erase/program cycles - More than 20-year data retention
• Flexible & Efficient Memory Architecture - Chip Erase with Uniform Sector/Block
Erase (4/32/64 Kbyte) - Program 1 to 256 bytes per page - Program/Erase Suspend & Resume
• Efficient Read and Program modes - Low Instruction Overhead Operations - Continuous Read 8/16/32/64-Byte burst
Wrap - Selectable burst length - QPI for reduced instruction overhead
• Low Power with Wide Temp. Ranges - Single 2.3V to 3.6V Voltage Supply - 5 mA Active Read Current (typ.) - 10 µA Standby Current (typ.) - 5 µA Deep Power Down (typ.) - Temp Grades:
Extended: -40°C to +105°C
Auto Grade (A3): -40°C to +125°C
• Advanced Security Protection - Software and Hardware Write Protection - Power Supply lock protect - 4x256-Byte dedicated security area
with OTP user-lockable bits - 128 bit Unique ID for each device (Call
Factory)
• Industry Standard Pin-out & Packages(1),(2) - B = 8-pin SOIC 208mil -
T = 8-contact USON 4x3mm - -
E = 8-contact XSON 4x4mm
K = 8-contact WSON 6x5mm - L = 8-contact WSON 8x6mm - M = 16-pin SOIC 300mil(3) - G= 24-ball TFBGA 6x8mm 4x6(3) - H = 24-ball TFBGA 6x8mm 5x5 (Call
Factory)(3) - KGD (Call Factory)
Notes:
1. Call Factory for other package options available.
2. For the RESET# pin option instead of HOLD# pin, call
Factory.
3. For the dedicated RESET# option, see the Ordering
Information

Packaging and transportation instructions

- According to the standard export packaging.

Customers can choose from cartons, wooden cases and wooden pallets according to their own requirements.
