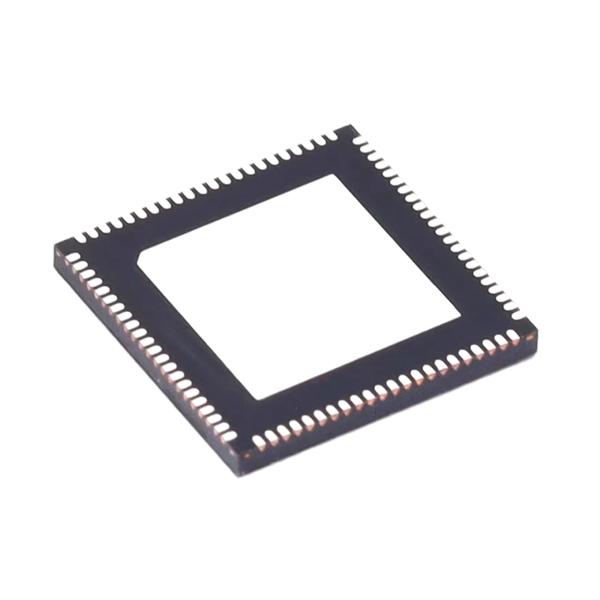

Programmable Logic Device CPLD FPGA Controller Single-chip Microcomputer GW2A-LV18QN88C8/I7

The GW2A FPGA of Gowin Semiconductor belongs to the Chenxi family 2 series, with abundant internal resources and features

High-performance DSP resources, high-speed LVDS interfaces and abundant BSRAM memory resources, this

Some embedded resources, combined with a streamlined FPGA architecture and 55nm process, make the GW2A FPGA applicable

In high-speed and low-cost application scenarios.

Gao Yun Semiconductor provides a new generation of FPGA hardware development environment independently developed for the market, supporting

With the GW2A series FPGA products, it is capable of completing FPGA synthesis, layout, routing, and data generation

One-stop services including file streaming and downloading.

1.1 Feature Overview

<s:1> Low power consumption - 55nm SRAM process - Nuclear voltage: 1.0V - supports dynamic clock on/off

Supports multiple I/O level standards - LVCMOS33/25/18/15/12;

LVTTL33,SSTL33/25/18 I, II,

"SSTL15; HSTL18 I, II, HSTL15

"I;" PCI, LVDS25, RSDS,

LVDS25E, BLVDSE, MLVDSE,

LVPECLE, RSDSE - provides input signal hysteresis options - provides output signal drive current options - offers an independent Bus for each I/O

Keeper, pull-up/pull-down resistor and Open

Drain output options - Supports hot plugging

<s:1> GPIO supports MIPI D-PHY RX/TX - supports MIPI CSI-2 and MIPI DSI

The interface between RX and TX devices has a single transmission rate

Channel up to 1.2Gbps - Two IO types are available: TLVDS,

DS102-2.7.6

ELVDS

<s:1> High-performance DSP module - high-performance digital signal processing capability - supports 9x 9, 18x 18, 36x 36bit

Multiplication operations and a 54bit accumulator - supports cascading of multiple multipliers - supports register pipeline and bypass functions - pre-addition operations implement filter functions - supports bucket-shift registers

Youdaoplaceholder0 Rich basic logic unit - 4 input LUT(LUT4) - supports shift registers and distributed memory

Supports multiple modes of static random access memory - supports dual-port, single-port and pseudo-dual-port

Mouth pattern

Youdaoplaceholder0 Flexible PLL resources - implementing clock multiplier, division and phase shift - global clock network resources

Self-programming configuration mode - supports JTAG configuration mode - Supports 4 GowinCONFIG configuration modes

Formula: SSPI, MSPI, CPU

SERIAL - Supports direct programming in JTAG and SSPI modes

SPI Flash, other modes can be programmed via IP - supports data stream file encryption and security bit Settings

Packaging and transportation instructions

- According to the standard export packaging.

Customers can choose from cartons, wooden cases and wooden pallets according to their own requirements.
