Altera FPGA Cyclone CPLD PLD IV E Series EP4CE10E22C8N
Altera FPGA Cyclone CPLD PLD IV E Series EP4CE10E22C8N
Altera FPGA Cyclone CPLD PLD IV E Series EP4CE10E22C8N
Altera FPGA Cyclone CPLD PLD IV E Series EP4CE10E22C8N
Altera FPGA Cyclone CPLD PLD IV E Series EP4CE10E22C8N
Altera FPGA Cyclone CPLD PLD IV E Series EP4CE10E22C8N
Specifications
Brand Name :
Intel/Altera
Model Number :
EP4CE10E22C8N
Certification :
ROHS
Place of Origin :
CN
MOQ :
1
Price :
CONSULT WITH
Payment Terms :
Western Union,T/T
Supply Ability :
10000
Delivery Time :
5-8DAY
Packaging Details :
T/R
Product Category: :
FPGA - Field Programmable Gate Array
Series: :
EP4CE10 Cyclone IV E
Number of Logic Elements: :
10320 LE
Package / Case: :
EQFP-144
Tradename: :
Cyclone IV
Brand: :
Altera
Maximum Operating Frequency: :
200 MHz
Moisture Sensitive: :
Yes
Description

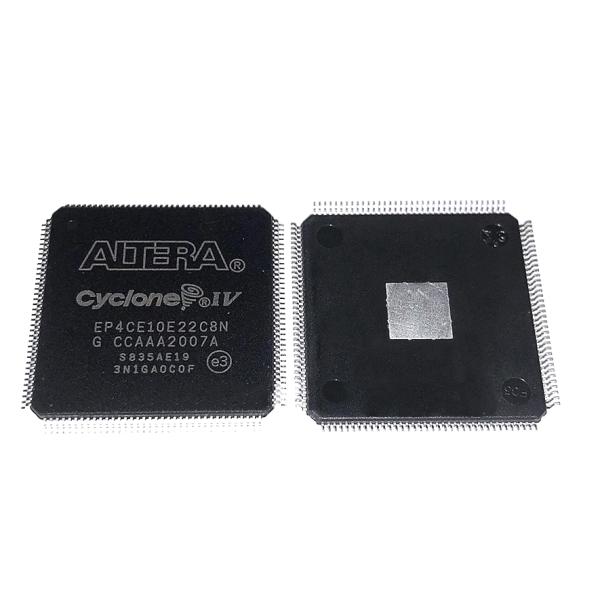

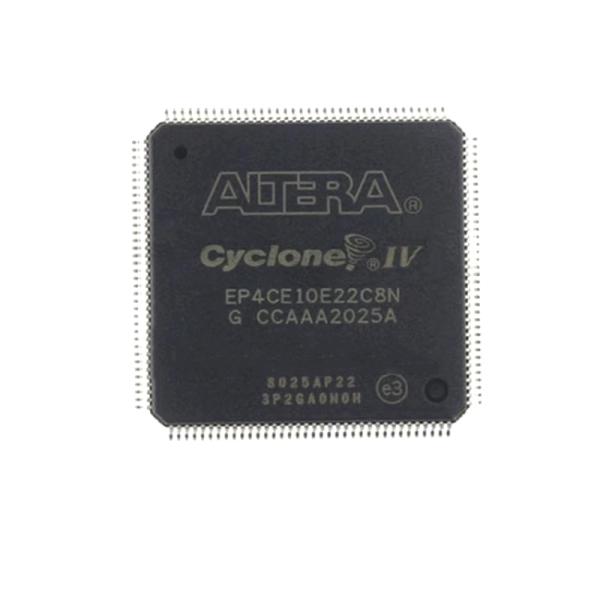

Altera FPGA Cyclone IV E series programmable Logic Device CPLD EP4CE10E22C8N


Absolute Maximum Ratings
Absolute maximum ratings define the maximum operating conditions for Cyclone IV
devices. The values are based on experiments conducted with the device and
theoretical modeling of breakdown and damage mechanisms. The functional
operation of the device is not implied at these conditions. Table 1–1 lists the absolute
maximum ratings for Cyclone IV devices.
c Conditions beyond those listed in Table 1–1 cause permanent damage to the device.
Additionally, device operation at the absolute maximum ratings for extended periods
of time have adverse effects on the device.

Maximum Allowed Overshoot or Undershoot Voltage
During transitions, input signals may overshoot to the voltage shown in Table 1–2 and
undershoot to –2.0 V for a magnitude of currents less than 100 mA and for periods
shorter than 20 ns. Table 1–2 lists the maximum allowed input overshoot voltage and
the duration of the overshoot voltage as a percentage over the lifetime of the device.
The maximum allowed overshoot duration is specified as a percentage of high-time
over the lifetime of the device.

A DC signal is equivalent to 100% duty cycle. For example, a signal that overshoots to
4.3 V can only be at 4.3 V for 65% over the lifetime of the device; for a device lifetime
of 10 years, this amounts to 65/10ths of a year

Figure 1–1 shows the methodology to determine the overshoot duration. The
overshoot voltage is shown in red and is present on the input pin of the Cyclone IV
device at over 4.3 V but below 4.4 V. From Table 1–2, for an overshoot of 4.3 V, the
percentage of high time for the overshoot can be as high as 65% over a 10-year period.
Percentage of high time is calculated as ([delta T]/T) × 100. This 10-year period
assumes that the device is always turned on with 100% I/O toggle rate and 50% duty
cycle signal. For lower I/O toggle rates and situations in which the device is in an idle
state, lifetimes are increased.

Altera
Product Category: FPGA - Field Programmable Gate Array
RoHS:
EP4CE10 Cyclone IV E
10320 LE
414 kbit
91 I/O
1.15 V
1.25 V
0 C
+ 85 C
SMD/SMT
EQFP-144
Tray
Brand: Altera
Maximum Operating Frequency: 200 MHz
Moisture Sensitive: Yes
Number of Logic Array Blocks - LABs: 645 LAB
Operating Supply Voltage: 1.2 V
Product Type: FPGA - Field Programmable Gate Array

60
Subcategory: Programmable Logic ICs
Total Memory: 414 kbit
Tradename: Cyclone IV
Part # Aliases: 972456
Unit Weight: 0.038801 oz

Altera FPGA Cyclone CPLD PLD IV E Series EP4CE10E22C8N

Altera FPGA Cyclone CPLD PLD IV E Series EP4CE10E22C8N

Altera FPGA Cyclone CPLD PLD IV E Series EP4CE10E22C8N
