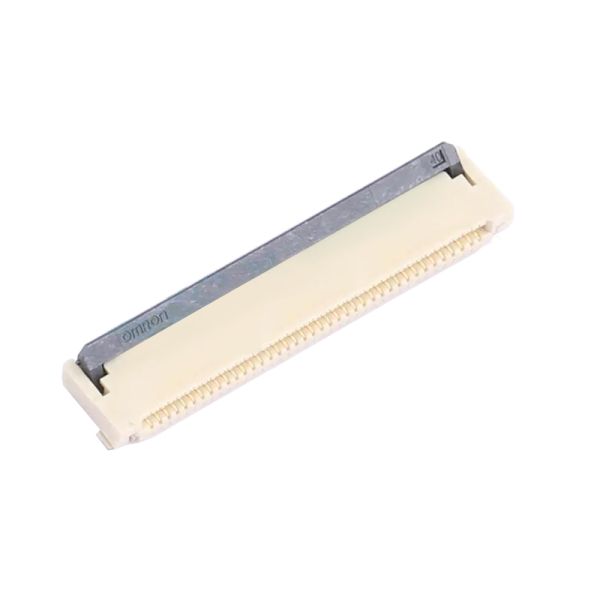

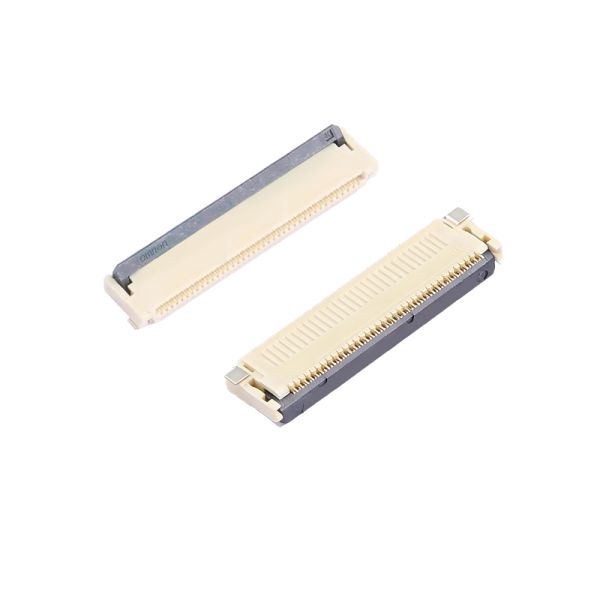

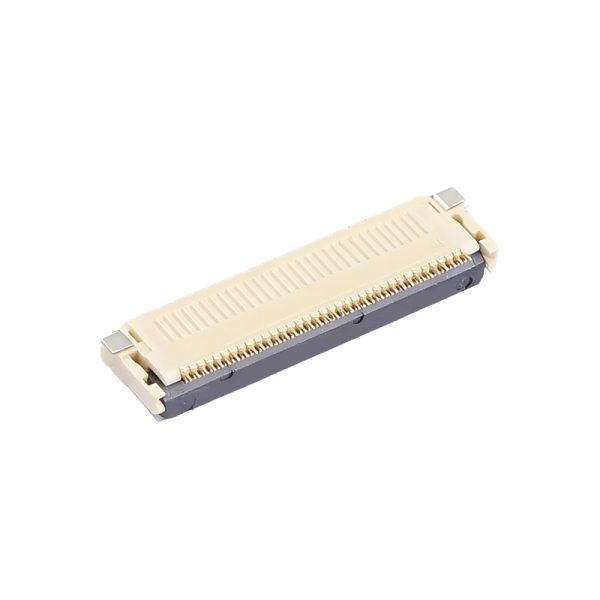

XF2M-4015-1A FFC & FPC Connector with 0.5 mm Pitch 40 Position Right Angle SMT Board Mount
XF2M-4015-1A FFC & FPC Connector with 0.5 mm Pitch 40 Position Right Angle SMT Board Mount
XF2M-4015-1A FFC & FPC Connector with 0.5 mm Pitch 40 Position Right Angle SMT Board Mount
XF2M-4015-1A FFC & FPC Connector with 0.5 mm Pitch 40 Position Right Angle SMT Board Mount
XF2M-4015-1A FFC & FPC Connector with 0.5 mm Pitch 40 Position Right Angle SMT Board Mount
XF2M-4015-1A FFC & FPC Connector with 0.5 mm Pitch 40 Position Right Angle SMT Board Mount
Specifications
Brand Name :
OMRON
Model Number :
XF2M-4015-1A
Certification :
rohs
Place of Origin :
CN
MOQ :
1
Price :
consult with
Payment Terms :
T/T,Western Union
Supply Ability :
100000
Delivery Time :
5-8days
Packaging Details :
T/R
Product Category: :
FFC & FPC Connectors
Product: :
Board Mount
Number of Positions: :
40 Position
Pitch: :
0.5 mm
Termination Style: :
SMD/SMT
Mounting Angle: :
Right Angle
Description
XF2M-4015-1A FFC & FPC Connectors .5mm Rotary BackLock SMT Dual 40P Adhesv
Product Features
  • Models available with 0.5-mm or 1.0-mm pitch.
  • Models available with dual-sided contacts or upper sided.
    (Models with upper sided come only with a 0.5-mm pitch.)
  • Models available with gold or Tin-plated.
    (Tin-plated is available only with models with dual-sided contacts.)
  • Models with 80 pins (multiple type) available with 0.5-mm pitch.
  • Applicable FPC/FFC thickness of 0.3 mm.
  • Halogen Free (*)
  • See the "Standards certification / conformity list" for information on
    conformity to certification standards.
    * OMRON uses the following standard to determine halogen-free construction: 900 ppm
    max. for Br, 900 ppm max. for Cl, and 1,500 ppm max. for Br+Cl.
Ratings and Specifications
Rated current 0.5 A AC/DC
Rated voltage 50 V AC/DC
Contact resistance 50 mΩ max. (at 20 mV DC max., 100 mA max.)
Insulation resistance 100 MΩ min. (at 250 V DC)
Dielectric strength 250 V AC for 1 min. (leakage current: 1 mA max.)
Insertion durability Gold-plated: 20 times
Tin-plated: 10 times
Ambient operating temperature −30 to 85 °C (With no icing or condensation)

XF2M-4015-1A FFC & FPC Connector with 0.5 mm Pitch 40 Position Right Angle SMT Board Mount

XF2M-4015-1A FFC & FPC Connector with 0.5 mm Pitch 40 Position Right Angle SMT Board MountXF2M-4015-1A FFC & FPC Connector with 0.5 mm Pitch 40 Position Right Angle SMT Board Mount

Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions
How to obtain the price?

We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.

What is your delivery time?

Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.

What are your payment terms?

Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.

What are the shipping options?

Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
