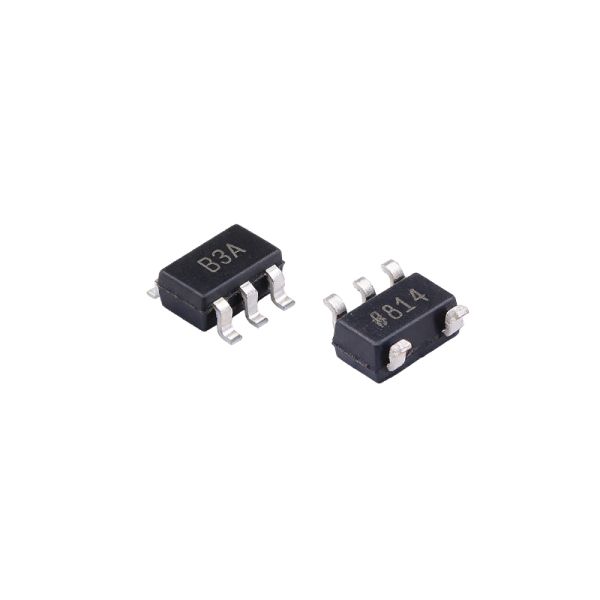

AD8605ARTZ-REEL7 Precision Amplifier with 10 MHz Gain Bandwidth 20 uV Input Offset Voltage and 2.7 V to 5.5 V Single-Supply CMOS Rail-Rail Op Amp
AD8605ARTZ-REEL7 Precision Amplifier with 10 MHz Gain Bandwidth 20 uV Input Offset Voltage and 2.7 V to 5.5 V Single-Supply CMOS Rail-Rail Op Amp
AD8605ARTZ-REEL7 Precision Amplifier with 10 MHz Gain Bandwidth 20 uV Input Offset Voltage and 2.7 V to 5.5 V Single-Supply CMOS Rail-Rail Op Amp
AD8605ARTZ-REEL7 Precision Amplifier with 10 MHz Gain Bandwidth 20 uV Input Offset Voltage and 2.7 V to 5.5 V Single-Supply CMOS Rail-Rail Op Amp
AD8605ARTZ-REEL7 Precision Amplifier with 10 MHz Gain Bandwidth 20 uV Input Offset Voltage and 2.7 V to 5.5 V Single-Supply CMOS Rail-Rail Op Amp
AD8605ARTZ-REEL7 Precision Amplifier with 10 MHz Gain Bandwidth 20 uV Input Offset Voltage and 2.7 V to 5.5 V Single-Supply CMOS Rail-Rail Op Amp
Specifications
Brand Name :
ADI
Model Number :
AD8605ARTZ-REEL7
Certification :
rohs
Place of Origin :
CN
MOQ :
1
Price :
consult with
Payment Terms :
T/T,Western Union
Supply Ability :
100000
Delivery Time :
5-8days
Packaging Details :
T/R
GBP - Gain Bandwidth Product: :
10 MHz
SR - Slew Rate: :
5 V/us
Vos - Input Offset Voltage: :
20 uV
Ib - Input Bias Current: :
250 pA
Supply Voltage - Max: :
5.5 V
Supply Voltage - Min: :
2.7 V
Description
AD8605ARTZ-REEL7 Precision Amplifiers SINGLE, PRECISION CMOS RAIL-RAIL OP AMP
FEATURES
  • Low offset voltage: 65 µV maximum
  • Low input bias currents: 1 pA maximum
  • Low noise: 8 nV/√Hz
  • Wide bandwidth: 10 MHz
  • High open-loop gain: 120 dB
  • Unity gain stable
  • Single-supply operation: 2.7 V to 5.5 V
  • MicroCSP™
APPLICATIONS
  • Photodiode amplification
  • Battery-powered instrumentation
  • Multipole filters
  • Sensors
  • Barcode scanners
  • Audio
NOISE PERFORMANCE
Parameter Symbol Conditions Min Typ Max Unit
Peak-to-Peak Noise en p-p f = 0.1 Hz to 10 Hz 2.3 3.5 µV p-p
Voltage Noise Density en f = 1 kHz 8 12 nV/√Hz
Voltage Noise Density en f = 10 kHz 6.5 nV/√Hz
Current Noise Density in f = 1 kHz 0.01 pA/√Hz
AD8605ARTZ-REEL7 Precision Amplifier with 10 MHz Gain Bandwidth 20 uV Input Offset Voltage and 2.7 V to 5.5 V Single-Supply CMOS Rail-Rail Op AmpAD8605ARTZ-REEL7 Precision Amplifier with 10 MHz Gain Bandwidth 20 uV Input Offset Voltage and 2.7 V to 5.5 V Single-Supply CMOS Rail-Rail Op AmpAD8605ARTZ-REEL7 Precision Amplifier with 10 MHz Gain Bandwidth 20 uV Input Offset Voltage and 2.7 V to 5.5 V Single-Supply CMOS Rail-Rail Op Amp
Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
