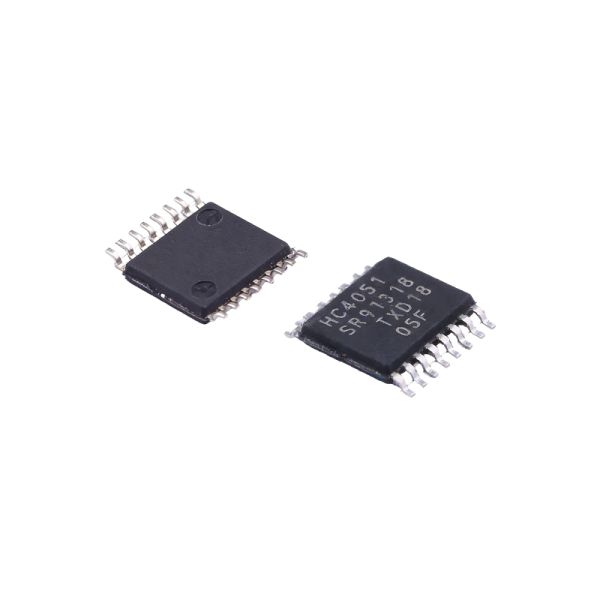

74HC4051PW 8 Channel Multiplexer Switch IC with Wide Analog Input Voltage Range and Low ON Resistance in TSSOP16 Package
74HC4051PW 8 Channel Multiplexer Switch IC with Wide Analog Input Voltage Range and Low ON Resistance in TSSOP16 Package
74HC4051PW 8 Channel Multiplexer Switch IC with Wide Analog Input Voltage Range and Low ON Resistance in TSSOP16 Package
74HC4051PW 8 Channel Multiplexer Switch IC with Wide Analog Input Voltage Range and Low ON Resistance in TSSOP16 Package
74HC4051PW 8 Channel Multiplexer Switch IC with Wide Analog Input Voltage Range and Low ON Resistance in TSSOP16 Package
74HC4051PW 8 Channel Multiplexer Switch IC with Wide Analog Input Voltage Range and Low ON Resistance in TSSOP16 Package
Specifications
Brand Name :
Nexperia
Model Number :
74HC4051PW,118
Certification :
rohs
Place of Origin :
CN
MOQ :
1
Price :
consult with
Payment Terms :
T/T,Western Union
Supply Ability :
100000
Delivery Time :
5-8days
Number of Channels: :
8 Channel
Temperature range :
-40 °C to +125 °C
Package / Case: :
TSSOP-16
On Time - Max: :
59 ns
Off Time - Max: :
49 ns
On Resistance - Max: :
180 Ohms
Description
74HC4051PW,118 Multiplexer Switch ICs 74HC4051PW TSSOP16
Features
  • Wide analog input voltage range from -5 V to +5 V
  • CMOS low power dissipation
  • High noise immunity
  • Complies with JEDEC standards
    • JESD8C (2.7 V to 3.6 V)
    • JESD7A (2.0 V to 6.0 V)
  • Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
  • Low ON resistance:
    • 80 Ω (typical) at VCC - VEE = 4.5 V
    • 70 Ω (typical) at VCC - VEE = 6.0 V
    • 60 Ω (typical) at VCC - VEE = 9.0 V
  • Logic level translation: to enable 5 V logic to communicate with ±5 V analog signals
  • Typical 'break before make’ built-in
  • ESD protection:
    • HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V
    • CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
  • Multiple package options
  • Specified from -40 °C to +85 °C and -40 °C to +125 °C
Pin Description
E
6 enable input (active LOW)
VEE
7 supply voltage
GND
8 ground supply voltage
S0, S1, S2
11, 10, 9 select input
Y0, Y1, Y2, Y3, Y4, Y5, Y6, Y7
13, 14, 15, 12, 1, 5, 2, 4 independent input or output
Z
3 common output or input
VCC
16 supply voltage
74HC4051PW 8 Channel Multiplexer Switch IC with Wide Analog Input Voltage Range and Low ON Resistance in TSSOP16 Package74HC4051PW 8 Channel Multiplexer Switch IC with Wide Analog Input Voltage Range and Low ON Resistance in TSSOP16 Package74HC4051PW 8 Channel Multiplexer Switch IC with Wide Analog Input Voltage Range and Low ON Resistance in TSSOP16 Package
