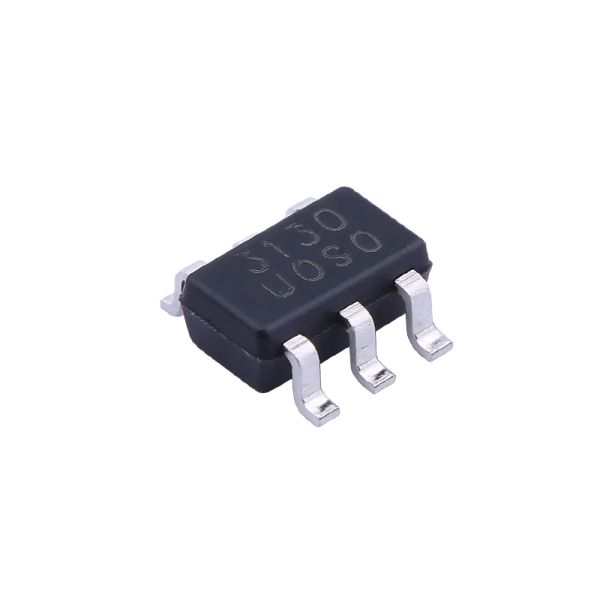

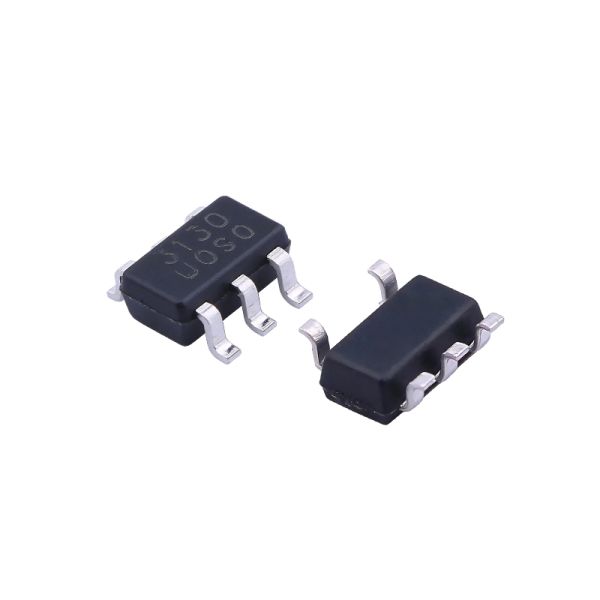

BRCL3130ME Lithium Battery Protection IC with 1.5uA Static Current Over-temperature Protection in SOT23-5 Package
BRCL3130ME Lithium Battery Protection IC with 1.5uA Static Current Over-temperature Protection in SOT23-5 Package
BRCL3130ME Lithium Battery Protection IC with 1.5uA Static Current Over-temperature Protection in SOT23-5 Package
BRCL3130ME Lithium Battery Protection IC with 1.5uA Static Current Over-temperature Protection in SOT23-5 Package
BRCL3130ME Lithium Battery Protection IC with 1.5uA Static Current Over-temperature Protection in SOT23-5 Package
BRCL3130ME Lithium Battery Protection IC with 1.5uA Static Current Over-temperature Protection in SOT23-5 Package
Specifications
Brand Name :
BLUE ROCKET
Model Number :
BRCL3130ME
Certification :
rohs
Place of Origin :
CN
MOQ :
1
Price :
consult with
Payment Terms :
T/T,Western Union
Supply Ability :
100000
Delivery Time :
5-8days
Packaging Details :
T/R
Static Current (Iq) :
1.5uA
operating voltage :
3.6V~6V
Charging saturation voltage :
4.3V
end-off voltage :
2.4V
operating temperature :
-40℃~+85℃
Number of battery cells :
1
Description

BRCL3130ME The BRCL3130ME series product is a high integration solution for lithium - lion/polymer battery protection.

Key Features
  • Integrate advanced power MOSFET with Equivalent of 65mQ Rps(oON)
  • Ultra - small SOT23 - 5 package
  • Over - temperature Protection; Overcharge Current Protection; Two - step Overcurrent Detection: Overdischarge Current; Load Short Circuiting
  • Charger detection function; OV battery charging function; delay times are generated inside; High - accuracy voltage detection
  • Low Current Consumption; Operation Mode: 2.8μA typ; Power - down Mode: 1.5μA typ ; RoHS Compliant and Lead (Pb) Free
Absolute Maximum Ratings
Parameter Symbol Value Unit
VDD input pin voltageVIN-0.3 to +6.0V
VM input pin voltageVVM-6.0 to +10V
Power DissipationPD400mW
Maximum Junction TemperatureTJ125℃
Lead TemperatureTL300℃
Operating Junction TemperatureTopr-40 to +85℃
Storage TemperatureTstg-55 to +150℃
Package Thermal ResistanceRθJA250℃/W
RθJc130℃/W
ESDESD2000V
BRCL3130ME Lithium Battery Protection IC with 1.5uA Static Current Over-temperature Protection in SOT23-5 Package BRCL3130ME Lithium Battery Protection IC with 1.5uA Static Current Over-temperature Protection in SOT23-5 Package BRCL3130ME Lithium Battery Protection IC with 1.5uA Static Current Over-temperature Protection in SOT23-5 Package
Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions

How to obtain the price?

We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.

What is your delivery time?

Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.

What are your payment terms?

Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.

What are the shipping options?

Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
