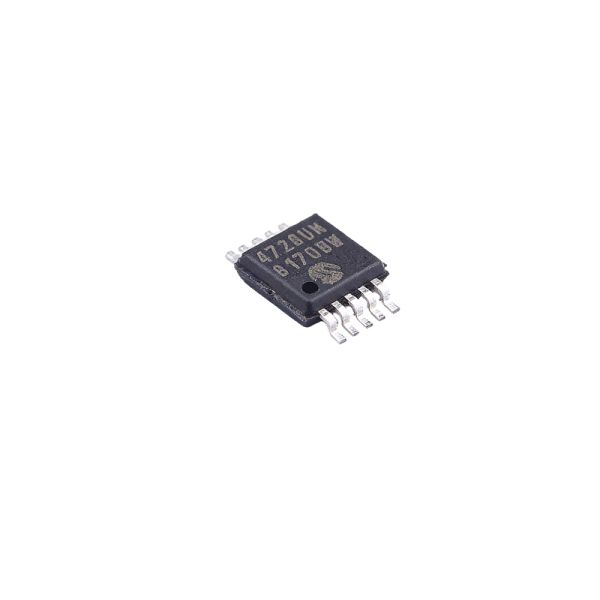

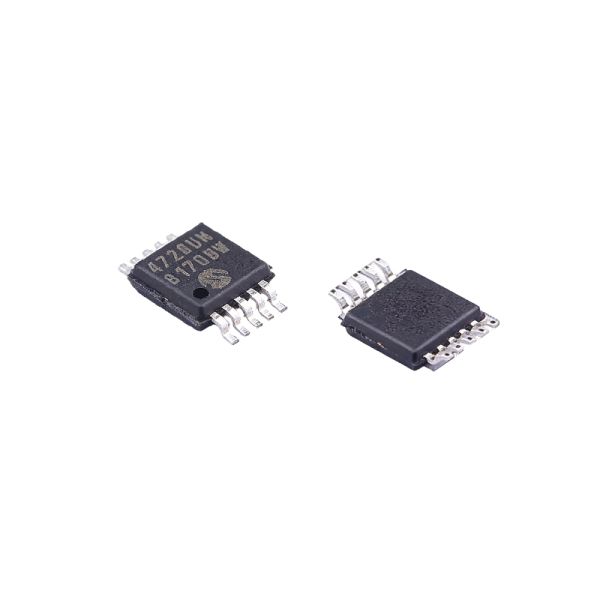

MCP4728-E/UN 12-bit Resolution Quad Channel Digital to Analog Converter with I2C Interface
MCP4728-E/UN 12-bit Resolution Quad Channel Digital to Analog Converter with I2C Interface
MCP4728-E/UN 12-bit Resolution Quad Channel Digital to Analog Converter with I2C Interface
MCP4728-E/UN 12-bit Resolution Quad Channel Digital to Analog Converter with I2C Interface
MCP4728-E/UN 12-bit Resolution Quad Channel Digital to Analog Converter with I2C Interface
MCP4728-E/UN 12-bit Resolution Quad Channel Digital to Analog Converter with I2C Interface
Specifications
Brand Name :
MICROCHIP
Model Number :
MCP4728-E/UN
Certification :
rohs
Place of Origin :
CN
MOQ :
1
Price :
consult with
Payment Terms :
T/T,Western Union
Supply Ability :
100000
Delivery Time :
5-8days
Packaging Details :
T/R
Resolution: :
12 bit
Number of Channels: :
4 Channel
Settling Time: :
6 us
Output Type: :
Voltage Buffered
Interface Type: :
2-Wire, I2C
Analog Supply Voltage: :
2.7 V to 5.5 V
Description
MCP4728-E/UN Digital to Analog Converters - DAC Quad 12-bit NV DAC with I2C interface
Features
  • 12-Bit Voltage Output DAC with Four Buffered Outputs
  • On-Board Nonvolatile Memory (EEPROM) for DAC Codes and I2C™ Address Bits
  • Internal or External Voltage Reference Selection
  • Output Voltage Range:
    • Using Internal VREF (2.048V):
      • 0.000V to 2.048V with Gain Setting = 1
      • 0.000V to 4.096V with Gain Setting = 2
    • Using External VREF (VDD):
      • 0.000V to VDD
  • ±0.2 Least Significant Bit (LSB) Differential Nonlinearity (DNL) (typical)
  • Fast Settling Time: 6 µs (typical)
  • Normal or Power-Down Mode
  • Low Power Consumption
  • Single-Supply Operation: 2.7V to 5.5V
  • I2C Interface:
    • Address bits: User Programmable to EEPROM
    • Standard (100 kbps), Fast (400 kbps) and High Speed (HS) Mode (3.4 Mbps)
  • 10-Lead MSOP Package
  • Extended Temperature Range: -40°C to +125°C
Electrical Specifications

Unless otherwise indicated, all parameters apply at VDD = +2.7V to 5.5V, VSS = 0V, RL =5kΩ, CL = 100 pF, GX = 1, TA = -40°C to +125°C. Typical values are at +25°C, VIH = VDD, VIL = VSS.

Parameter Symbol Min Typical Max Units Conditions
Power Requirements
Operating Voltage VDD 2.7 — 5.5 V
Supply Current with External Reference (VREF = VDD) (Note 1) IDD_EXT — 800 1400 µA VREF = VDD, VDD = 5.5V All 4 channels are in Normal mode.
— 600 — µA 3 channels are in Normal mode, 1 channel is powered down.
— 400 — µA 2 channels are in Normal mode, 2 channels are powered down.
— 200 — µA 1 channel is in Normal mode, 3 channels are powered down.
Power-Down Current with External Reference (VREF = VDD) IPD_EXT — 40 — nA All 4 channels are powered down.
Supply Current with Internal Reference (VREF = Internal) (Note 1) IDD_INT — 800 1400 µA VREF = Internal Reference VDD = 5.5V All 4 channels are in normal mode.
— 600 — µA 3 channels are in Normal mode, 1 channel is powered down.
— 400 — µA 2 channels are in Normal mode, 2 channels are powered down.
— 200 — µA 1 channel is in Normal mode, 3 channels are powered down.
Power-Down Current with Internal Reference IPD_INT — 45 60 µA All 4 channels are powered down. VREF = Internal Reference
