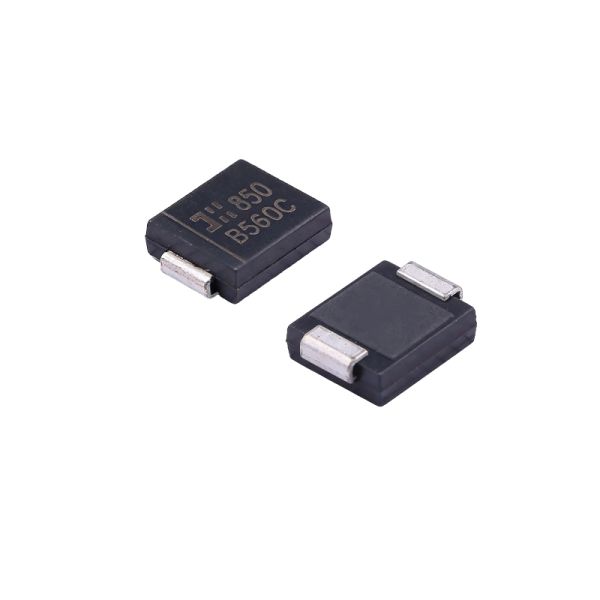

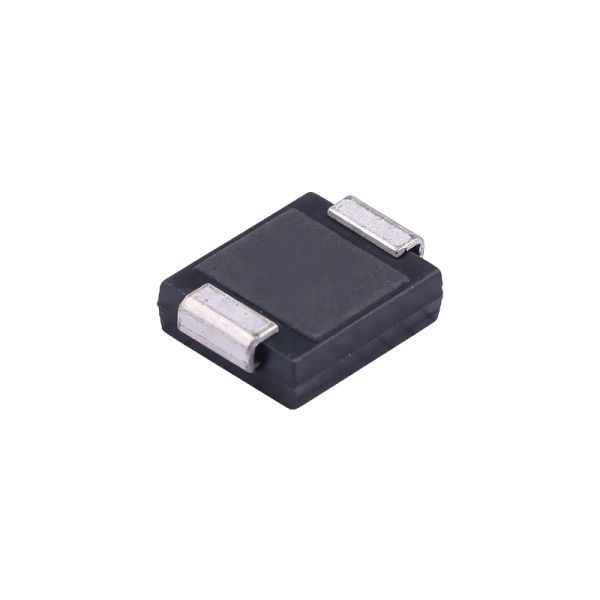

B560C-13-F Schottky Diode Rectifier with 60V Repetitive Reverse Voltage 5A Forward Current and Guard Ring Die Construction
B560C-13-F Schottky Diode Rectifier with 60V Repetitive Reverse Voltage 5A Forward Current and Guard Ring Die Construction
B560C-13-F Schottky Diode Rectifier with 60V Repetitive Reverse Voltage 5A Forward Current and Guard Ring Die Construction
B560C-13-F Schottky Diode Rectifier with 60V Repetitive Reverse Voltage 5A Forward Current and Guard Ring Die Construction
B560C-13-F Schottky Diode Rectifier with 60V Repetitive Reverse Voltage 5A Forward Current and Guard Ring Die Construction
B560C-13-F Schottky Diode Rectifier with 60V Repetitive Reverse Voltage 5A Forward Current and Guard Ring Die Construction
Specifications
Brand Name :
DIODES
Model Number :
B560C-13-F
Certification :
rohs
Place of Origin :
CN
MOQ :
1
Price :
consult with
Payment Terms :
T/T,Western Union
Supply Ability :
100000
Delivery Time :
5-8days
Packaging Details :
T/R
Mounting Style: :
SMD/SMT
Package / Case: :
SMC (DO-214AB)
Configuration: :
Single
Technology: :
Si
If - Forward Current: :
5 A
Vrrm - Repetitive Reverse Voltage: :
60 V
Description
B560C-13-F Schottky Diodes & Rectifiers 60V 5A
Features and Benefits
  • Guard Ring Die Construction for Transient Protection
  • Ideally Suited for Automated Assembly
  • Low Power Loss, High Efficiency
  • For Use in Low-Voltage, High-Frequency Inverters, Free Wheeling, and Polarity Protection Applications
  • Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
  • Halogen and Antimony Free. “Green" Device (Notes 3)
  • This part is qualified to JEDEC standards (as references in AEC-Q) for High Reliability.
    https://www.diodes.com/quality/product-definitions/
  • An automotive-compliant part is available under separate datasheet (B520CQ-B560CQ)
Mechanical Data
  • Package: SMC
  • Package Material: Molded Plastic. UL Flammability Classification Rating 94V-0
  • Moisture Sensitivity: Level 1 per J-STD-020
  • Terminals: Lead Free Plating (Matte Tin Finish). Solderable per MIL-STD-202, Method 208
  • Polarity: Cathode Band or Cathode Notch
  • Weight: 0.21 grams (Approximate)
Part Number Package Packing Qty. Carrier
B5xxC-13-F SMC 3,000 Tape & Reel
B560C-13-F Schottky Diode Rectifier with 60V Repetitive Reverse Voltage 5A Forward Current and Guard Ring Die Construction
B560C-13-F Schottky Diode Rectifier with 60V Repetitive Reverse Voltage 5A Forward Current and Guard Ring Die Construction B560C-13-F Schottky Diode Rectifier with 60V Repetitive Reverse Voltage 5A Forward Current and Guard Ring Die Construction
Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions
How to obtain the price?

We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.

What is your delivery time?

Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.

What are your payment terms?

Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.

What are the shipping options?

Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
