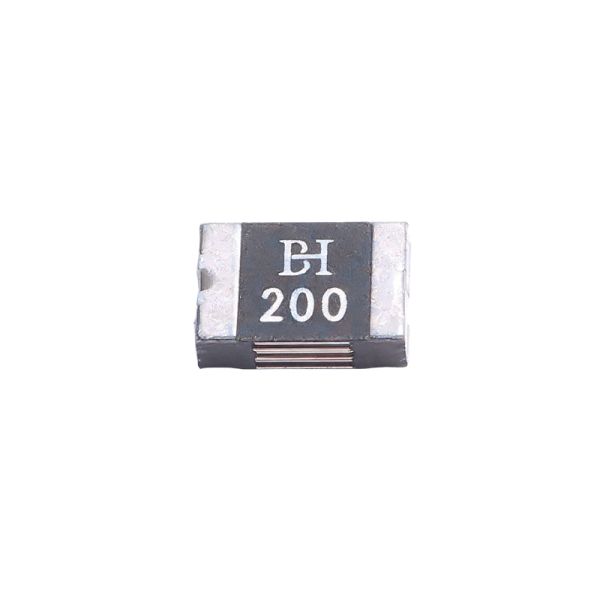

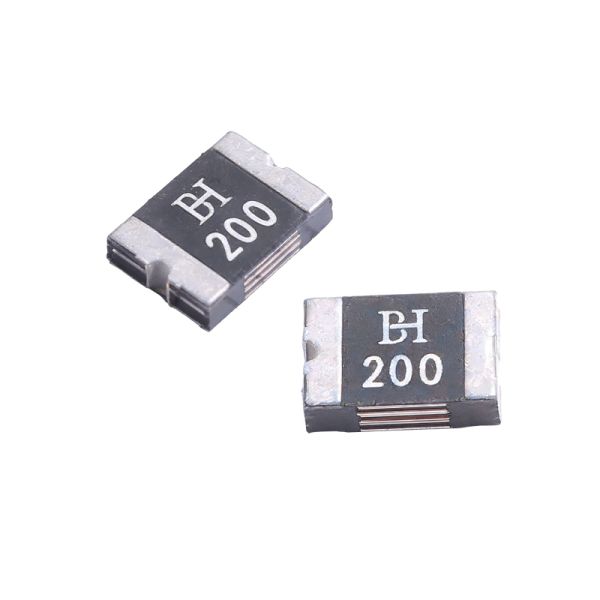

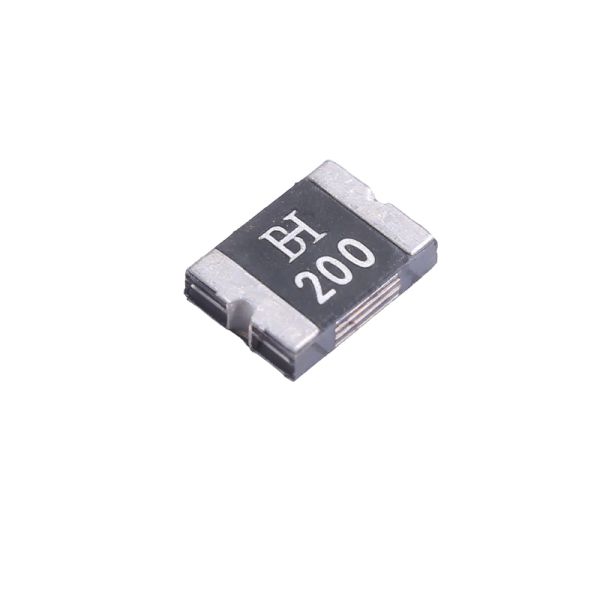

BSMD1812-200-30V Surface Mount PTC Device with 30V Pressure Resistance 40A Maximum Current and RoHS Compliant
BSMD1812-200-30V Surface Mount PTC Device with 30V Pressure Resistance 40A Maximum Current and RoHS Compliant
BSMD1812-200-30V Surface Mount PTC Device with 30V Pressure Resistance 40A Maximum Current and RoHS Compliant
BSMD1812-200-30V Surface Mount PTC Device with 30V Pressure Resistance 40A Maximum Current and RoHS Compliant
BSMD1812-200-30V Surface Mount PTC Device with 30V Pressure Resistance 40A Maximum Current and RoHS Compliant
BSMD1812-200-30V Surface Mount PTC Device with 30V Pressure Resistance 40A Maximum Current and RoHS Compliant
Specifications
Brand Name :
BHFUSE
Model Number :
BSMD1812-200-30V
Certification :
rohs
Place of Origin :
CN
MOQ :
1
Price :
consult with
Payment Terms :
T/T,Western Union
Supply Ability :
100000
Delivery Time :
5-8days
Packaging Details :
T/R
Pressure Resistance (Vmax) :
30V
Maximum current (Imax) :
40A
Maintain the current (Ihold) :
2A
Trip current (Itrip) :
4A
Power consumption (Pd) :
1W
Initial state resistance value (Rmin) :
20mΩ
Description
Features
  • Size 0.18*0.12 inch /4.5*3.2 mm
  • RoHS compliant, lead-free and halogen-free
  • Fast response to fault current
  • Low resistance
  • Low profile
  • Compatible with high temperature solders
Applications
  • Computer, Mobile phones, Multimedia
  • Automotive, Industrial controls, Telephony and broadband
  • Game machines, Portable electronics, Battery
Test Conditions
Test Conditions Resistance change
Passive aging +85°C, 1000 hours ±5%typical
Humidity aging +85°C, 85% R.H. , 168 hours ±5%typical
Thermal shock +85°C to -40°C, 20 times ±33%typical
Resistance to solvent MIL-STD-202,Method 215 No change
Vibration MIL-STD-202,Method 201 No change
BSMD1812-200-30V Surface Mount PTC Device with 30V Pressure Resistance 40A Maximum Current and RoHS CompliantBSMD1812-200-30V Surface Mount PTC Device with 30V Pressure Resistance 40A Maximum Current and RoHS CompliantBSMD1812-200-30V Surface Mount PTC Device with 30V Pressure Resistance 40A Maximum Current and RoHS Compliant
Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions
How to obtain the price?

We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.

What is your delivery time?

Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.

What are your payment terms?

Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.

What are the shipping options?

Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
