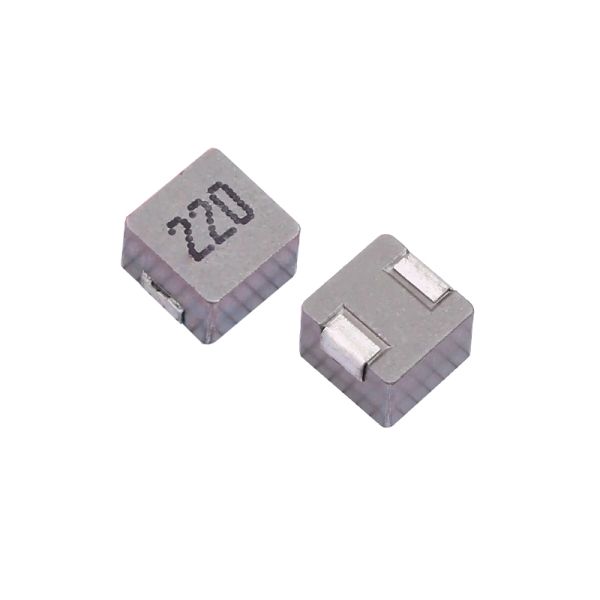

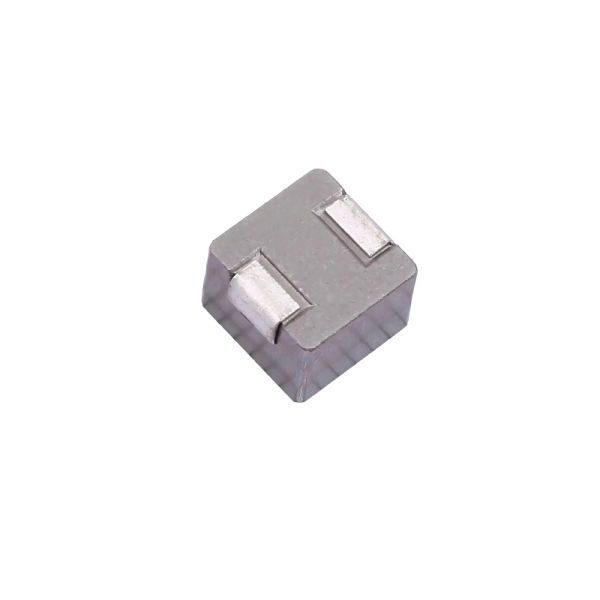

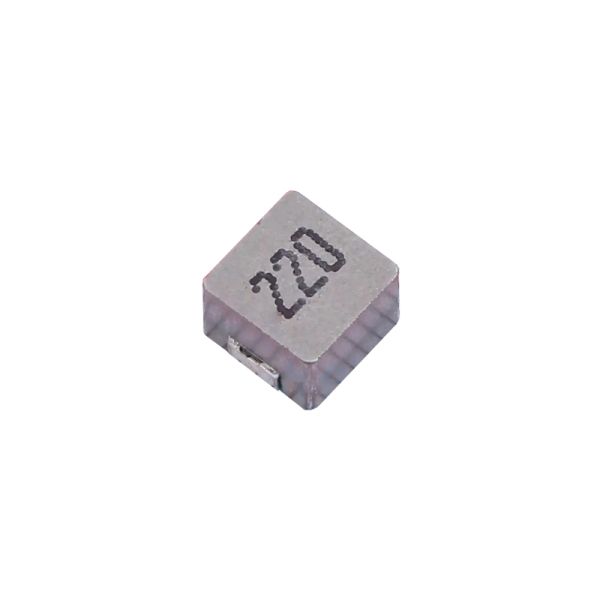

AAPS0650M220A 22uH Molding Power Inductor with 4.04A Saturation Current and AEC-Q200 Qualification
AAPS0650M220A 22uH Molding Power Inductor with 4.04A Saturation Current and AEC-Q200 Qualification
AAPS0650M220A 22uH Molding Power Inductor with 4.04A Saturation Current and AEC-Q200 Qualification
AAPS0650M220A 22uH Molding Power Inductor with 4.04A Saturation Current and AEC-Q200 Qualification
AAPS0650M220A 22uH Molding Power Inductor with 4.04A Saturation Current and AEC-Q200 Qualification
AAPS0650M220A 22uH Molding Power Inductor with 4.04A Saturation Current and AEC-Q200 Qualification
Specifications
Brand Name :
Coilank
Model Number :
AAPS0650M220A
Certification :
rohs
Place of Origin :
CN
MOQ :
1
Price :
consult with
Payment Terms :
T/T,Western Union
Supply Ability :
100000
Delivery Time :
5-8days
Packaging Details :
T/R
Product Catalog :
Power Inductor
Inductive value :
22uH
Accuracy :
±20%
Saturation Current (Isat) :
4.04A
DC Resistance (DCR) :
138mΩ 2
Vehicle Gradeevel :
AEC-Q200
Description
AAPS0650M220A Molding Power Inductors 22uH ±20% 4.04A
Features
  • Qualified to AEC-Q200.
  • Alloy powder Inductor.
  • 100% lead (Pb)-free.
  • Lowest DCR/uH, in this package size.
  • Handles high transient current spikes without saturation.
  • Ultra low buzz noise, due to composite construction.
  • RoHS compliance.
  • Halogen Free.
Applications
  • Automotive applications.
Test Equipment and Conditions

All test data is referenced to 25℃ ambient.

Operating temperature range -55℃ to +155℃.(Including self - temperature rise)

DC current(Irms)that will cause an approximate△T of 40℃.

DC current(Isat)that will cause Lo to drop approximately 40%.

For AAPS04~07 size project ,absolute maximum voltage 60VDC;

Above AAPS10 size project, absolute maximum voltage 100VDC.

TYPE A B Max C Max D typ E typ F typ G typ H typ Q’TY/Reel
AAPS0412 4.2±0.3 4.8 1.2 2.0 0.8 5.2 2.5 2.2 3000
AAPS0420 4.2±0.3 4.8 2.0 2.0 0.8 5.2 2.5 2.2 3000
AAPS0515 5.2±0.3 5.8 1.5 2.2 1.2 5 2.5 2.2 3000
AAPS0518 5.2±0.3 5.8 1.8 2.2 1.2 6.0 2.5 2.2 2000
AAPS0530 5.2±0.3 5.8 3.0 2.2 1.2 6.0 2.5 2.2 2000
AAPS0615 6.6±0.3 7.7 1.5 3.0 1.6 8.4 3.5 3.7 2000
AAPS0618 6.6±0.3 7.7 1.8 3.0 1.6 8.4 3.5 3.7 1500
AAPS0624 6.6±0.3 7.7 2.4 3.0 1.6 8.4 3.5 3.7 1500
AAPS0630 6.6±0.3 7.7 3.0 3.0 1.6 8.4 3.5 3.7 1000
AAPS0650 6.6±0.3 7.7 5.0 3.0 1.7 8.4 3.5 3.6 1000
AAPS0754 7.2±0.3 8.2 5.4 3.0 2.0 9.0 3.5 2.6 500
AAPS0840 8.2±0.3 9.2 4.0 5 1.4 9.5 5.5 4 800
AAPS1030 10.0±0.5 11.5 3.0 3.0 2.0 13.6 4.1 5.4 1000
