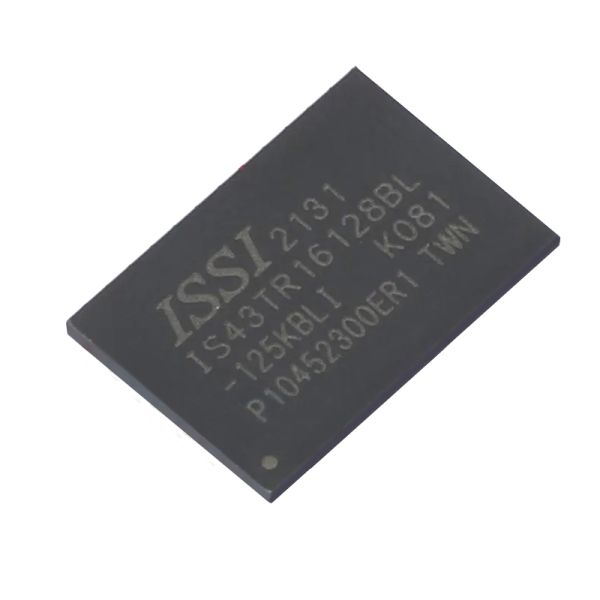

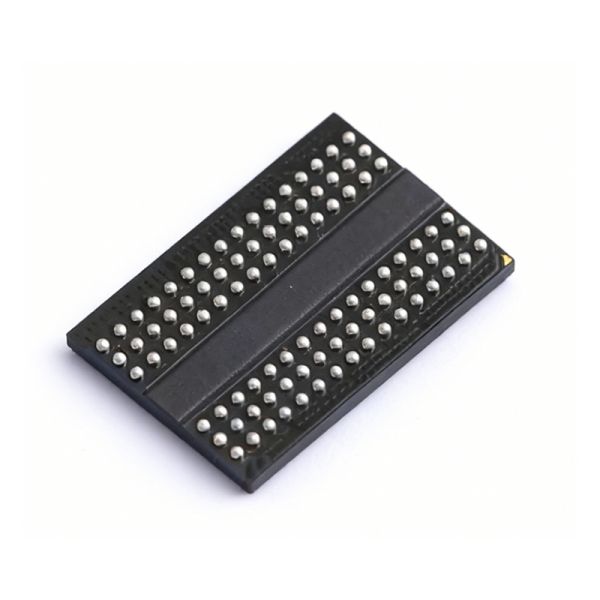

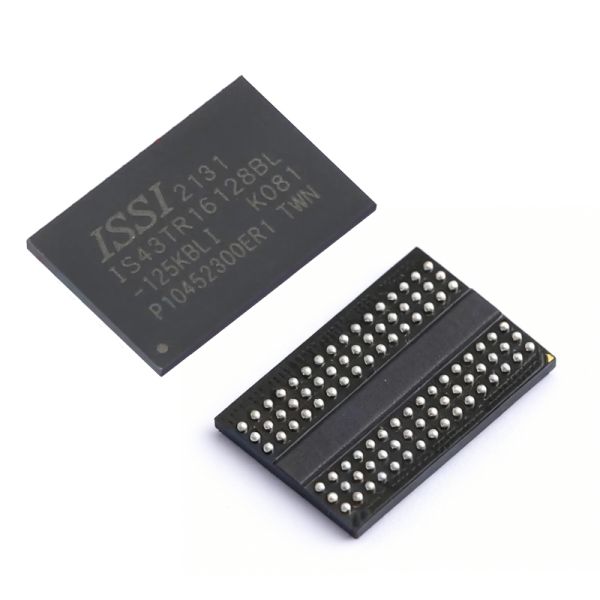

IS43TR16128BL-125KBLI 2GB DYNAMIC RANDOM ACCESS MEMORY BGA-96
IS43TR16128BL-125KBLI 2GB DYNAMIC RANDOM ACCESS MEMORY BGA-96
IS43TR16128BL-125KBLI 2GB DYNAMIC RANDOM ACCESS MEMORY BGA-96
IS43TR16128BL-125KBLI 2GB DYNAMIC RANDOM ACCESS MEMORY BGA-96
IS43TR16128BL-125KBLI 2GB DYNAMIC RANDOM ACCESS MEMORY BGA-96
IS43TR16128BL-125KBLI 2GB DYNAMIC RANDOM ACCESS MEMORY BGA-96
Specifications
Brand Name :
ISSI
Model Number :
IS43TR16128BL-125KBLI
Certification :
ROSH
Place of Origin :
TWN
MOQ :
1
Price :
consult
Payment Terms :
T/T,Western Union
Supply Ability :
10000
Delivery Time :
5-8DAY
Packaging Details :
T/R
Data Width :
8-bit
Package Type :
SOIC-28
Subcategory :
Memory & Data Storage
Capacity :
1GB
Memory Type :
DDR4 SDRAM
Access Time :
10ns
Manufacturer :
Example Semiconductor Inc.
Working Voltage :
2.7 V to 3.6 V
Speed :
DDR4-2400
Application :
Cache memory, buffer storage
Installation Method :
Surface mount installation
Operating Temperature :
0°C to 85°C
Operating Frequency :
100MHz
Refresh Count :
8K
Interface :
SATA III
Description
IS43/46TR16128B, IS43/46TR16128BL,IS43/46TR82560B, IS43/46TR82560BL

256Mx8, 128Mx16 2Gb DDR3 SDRAM

FEATURES
  • Standard Voltage: VDD and VDDQ = 1.5V ± 0.075V
  • Low Voltage (L): VDD and VDDQ = 1.35V + 0.1V, -0.067V - Backward compatible to 1.5V
  • High speed data transfer rates with systemfrequency up to 1066 MHz
  • 8 internal banks for concurrent operation
  • 8n-Bit pre-fetch architecture
  • Programmable CAS Latency
  • Programmable Additive Latency: 0, CL-1,CL-2
  • Programmable CAS WRITE latency (CWL) basedon tCK
  • Programmable Burst Length: 4 and 8
  • Programmable Burst Sequence: Sequential orInterleave
  • BL switch on the fly
  • Auto Self Refresh(ASR)
  • Self Refresh Temperature(SRT)
  • Refresh Interval:
    • 7.8 us (8192 cycles/64 ms) Tc= -40°C to 85°C
    • 3.9 us (8192 cycles/32 ms) Tc= 85°C to 105°C
  • Partial Array Self Refresh
  • Asynchronous RESET pin
  • TDQS (Termination Data Strobe) supported (x8only)
  • OCD (Off-Chip Driver Impedance Adjustment)
  • Dynamic ODT (On-Die Termination)
  • Driver strength : RZQ/7, RZQ/6 (RZQ = 240 Ω)
  • Write Leveling
  • Up to 200 MHz in DLL off mode
  • Operating temperature:
    • Commercial (TC = 0°C to +95°C)
    • Industrial (TC = -40°C to +95°C)
    • Automotive, A1 (TC = -40°C to +95°C)
    • Automotive, A2 (TC = -40°C to +105°C)
OPTIONS
  • Configuration:
    • 256Mx8
    • 128Mx16
  • Package:
    • 96-ball BGA (9mm x 13mm) for x16
    • 78-ball BGA (8mm x 10.5mm) for x8
ADDRESS TABLE
Parameter 256Mx8 128Mx16
Row Addressing A0-A14 A0-A13
Column Addressing A0-A9 A0-A9
Bank Addressing BA0-2 BA0-2
Page size 1KB 2KB
Auto PrechargeAddressing A10/AP A10/AP
BL switch on the fly A12/BC# A12/BC#
SPEED BIN
Speed Option 15H 125K 107M 093N Units
JEDEC Speed Grade DDR3-1333H DDR3-1600K DDR3-1866M DDR3-2133N
CL-nRCD-nRP 9-9-9 11-11-11 13-13-13 14-14-14 tCK
tRCD,tRP(min) 13.5 13.75 13.91 13.09 ns
