| Size | Reference Module Brightness | Backlight Brightness | Power Board Model | Notes |
|---|---|---|---|---|
| 43" | 1500 nits | 35000 | MP330S-C | Interference with speaker; structural redesign required |
| 55" | 1500 nits | 30000 | MP330S-C | |
| 65" | 1500 nits | 30000 | MP361S-C2 | Power default: 0.35A per channel |
| 75" | 1500 nits | 30000 | MP500TL-3Q64-H1 | Power default: 0.5A per channel |
| 86" | 1500 nits | 30000 | MP361S-C2*2pcs | Power default: 0.35A per channel |

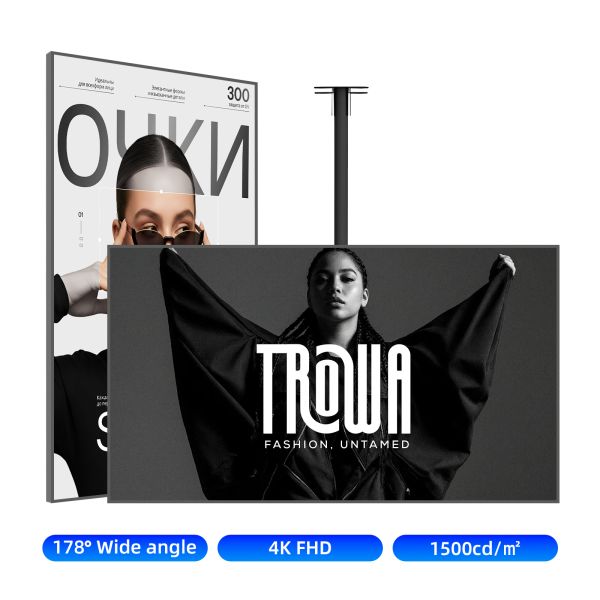

Key Technical Specifications (High-Brightness Model):
Brightness: 1500 cd/m² (nits)
Resolution: 4K Ultra HD (3840 x 2160)
Display Ratio: 16:9
Viewing Angle: 178° (H/V)
Operating System: Android 11
Processor: Quad-core RK3566, up to 1.8GHz
Memory: 2GB RAM + 32GB Flash
Connectivity: Wi-Fi 6 (802.11ax), Bluetooth 5.0, RJ45 Ethernet, USB
Audio: 2 x 10W Stereo Speakers
Power Supply: 100-240V AC, 50/60Hz
Mounting: Standard VESA compatible (wall mount bracket included)

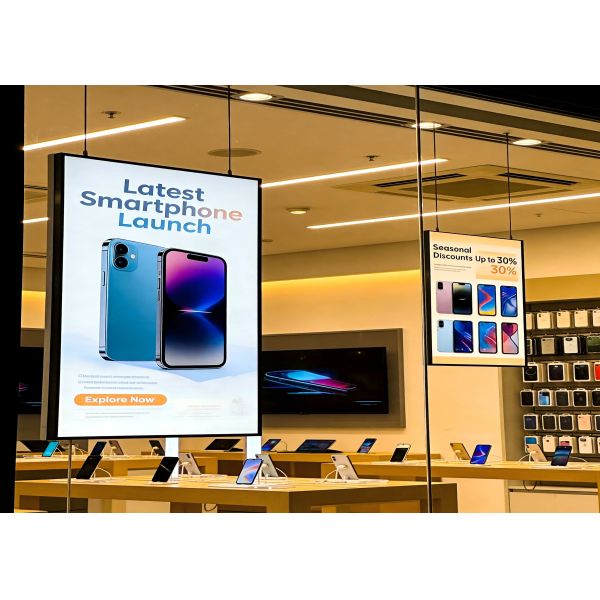

Ultra-High Brightness (1500 nits): Ensures excellent visibility even in brightly lit outdoor or storefront environments.

4K Ultra HD Resolution: Delivers sharp, detailed images and videos.

Ultra-Narrow Bezel (6.9mm): Modern aesthetic, ideal for creating seamless video walls or cleaner individual displays.

Multiple Mounting Options: Supports wall mounting for easy installation in window displays.

Android Smart System: Allows for flexible content management and app-based functionality.

A: Absolutely. The 1500 nits brightness is specifically designed to combat direct sunlight and bright indoor lighting.
A: Yes. The built-in Android OS allows you to install apps like YouTube, web browsers, or digital signage software for streaming and scheduled content.
A: They are designed for indoor or semi-protected outdoor use (like under an awning). They are not fully waterproof for exposed outdoor installations.
