86 Interactive Smart Board Touch Screen Flat Panel Display Android 14
86 Interactive Smart Board Touch Screen Flat Panel Display Android 14
Specifications
Model Number :
5286E
Certification :
CE CCC FCC RoHS ISO9001
Place of Origin :
China
MOQ :
1
Price :
$ 814 - 897 / Unit
Payment Terms :
D/A,L/C,D/P,T/T,Western Union
Supply Ability :
Over 8000 Units / Month
Delivery Time :
3-15 Work Days
Packaging Details :
Standard Carton with Foam Cushioning
Brand Name :
YOMURA
Size :
86 INCH
Contrast Ratio :
6000:1
Chromatic Number :
8Bit 1.07B
Resolution :
3840x2160 UHD
sRGB :
96%
Refresh Rate :
60Hz
Backlight Type :
DLED
Input Voltage :
AC 100-240V 50-60Hz
Rated Power :
≦425W (contain ops pc)
Language :
Multilingual
Description
86" Interactive Smart Board Touch Screen Flat Panel Display Android 14

Designed as a flagship interactive smart board for modern meeting rooms, lecture halls, training centers, and smart exhibition spaces, it integrates ultra‑HD 4K display, precise infrared touch, high‑performance Android system, and modular PC options. It replaces the traditional complex setup of “projector + whiteboard + audio system,” offering users an all‑in‑one, integrated platform for efficient collaboration and presentation.

Detailed Specifications & Features

86

Display Unit:

  • Panel: 86‑inch A+ grade industrial LCD with HVA technology.
  • Brightness: 450 cd/m², paired with 4mm anti‑glare glass to effectively reduce ambient light interference.
  • Color: 96% sRGB color gamut coverage for true, vibrant colors.

86

Interactive System:

  • Touch Technology: High‑precision infrared touch frame with strong anti‑light interference.
  • Operating System: Native Android 14/13, open system supporting free APK installation.

86

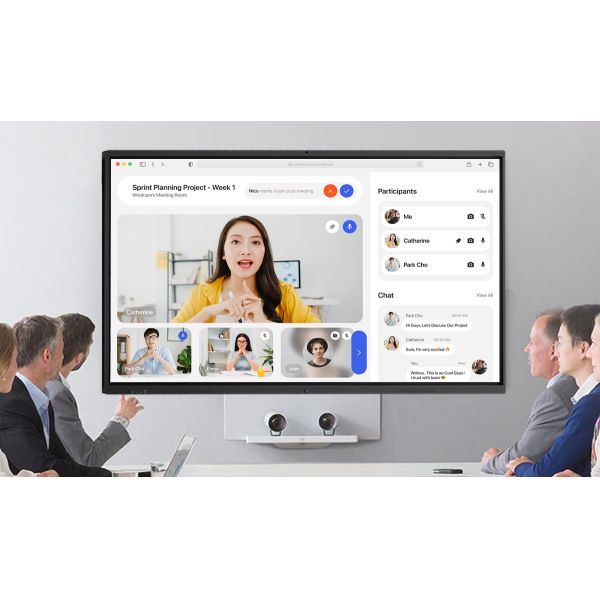

Conference & Audio:

  • Built‑in Camera: 48‑MP, wide‑angle lens.
  • Built‑in Microphone: 8‑array microphone with far‑field pickup and noise reduction.
  • Built‑in Speakers: 2 × 10W for clear audio projection.

86

Connectivity & Ports:

  • Standard Ports: Multiple HDMI 2.0, USB 3.0, Type‑C, Gigabit RJ45, RS232, etc.
  • Wireless: Dual‑band Wi‑Fi, Bluetooth 5.4, supports wireless screen casting.

86

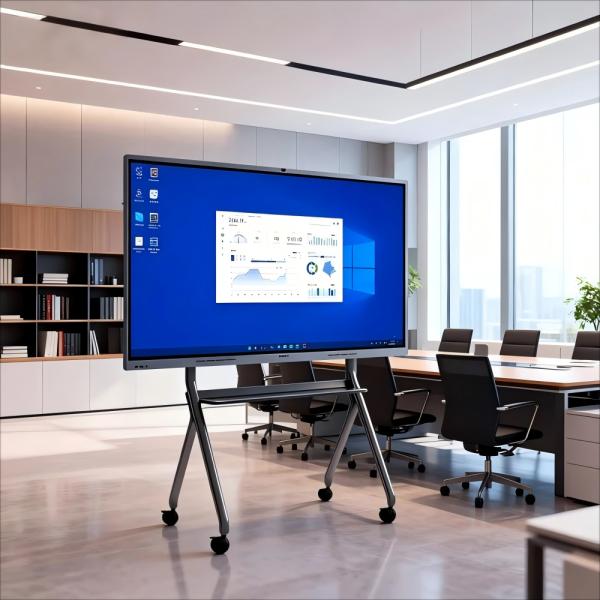

Design & Installation:

  • Appearance: Ultra‑narrow bezel, full‑metal body, optional black/white/silver finish.
  • Installation: Supports wall‑mount (VESA 800×400mm), mobile stand, floor stand.
Configuration Options (Comparison Table)

To meet different budgets and performance needs, we offer three Android core configurations:

Feature Standard Edition Advanced Edition (Recommended) Premium Edition
Core Chip MTK9679 311D2 RK3588
CPU Architecture Quad‑core Cortex‑A73 Octa‑core (A73 + A53) Octa‑core (A76 + A55)
RAM 4GB 8GB 16GB
Storage 32GB 128GB 256GB
Network Dual‑band Wi‑Fi Wi‑Fi 6 Wi‑Fi 6
OS Android 14.0 Android 14.0 Android 13.0
Use Cases Basic display, routine meetings Mainstream meeting rooms/classrooms, smooth multi‑tasking Large conferences, high‑end teaching, complex applications
Our Recommendation Cost‑effective entry option Best balance of performance and price Future‑proof investment, top‑tier performance

Windows OPS PC module is optional, supporting various configurations from i5 to i7, enabling dual‑system switching.
