43 - 86 Inch Ultra Thin Android Smart 4K LCD Digital Signage Displays

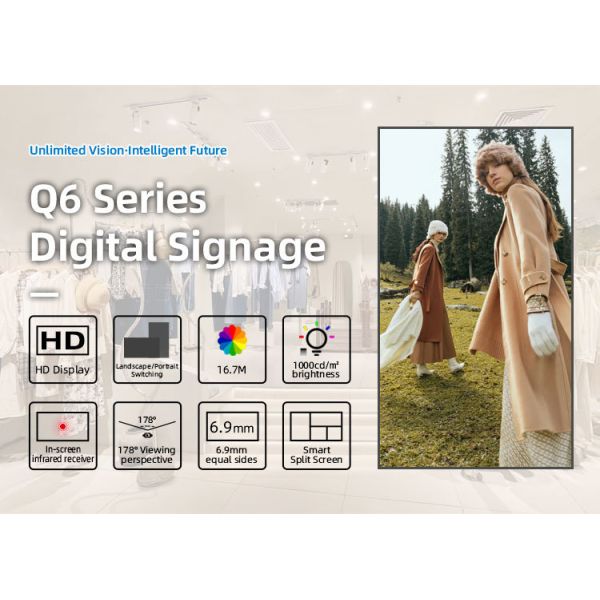

Ultra-Thin Smart Digital Signage – a versatile range of high-performance Android displays designed for professional commercial applications. Available in five sizes (43", 55", 65", 75", and 86"), each model combines a stunning 4K UHD display with a powerful Android 11 smart system, all housed in an ultra-slim, sleek chassis. Perfect for retail advertising, corporate communications, hospitality, education, and control rooms, the Q6 Series delivers outstanding visual impact, reliability, and smart functionality out of the box.
| Feature | Specifications |
|---|---|
| Display Size | 43″ / 55″ / 65″ / 75″ / 86″ |
| Resolution | 3840 * 2160 (4K UHD) |
| Aspect Ratio | 16:9 |
| Brightness | 1000 cd/m² |
| Contrast Ratio | 1200:1 (43″, 55″) / 1300:1 (65″, 75″, 86″) |
| Viewing Angle | 178° (H/V) |
| Backlight Type | DLED (Local Dimming supported) |
| Bezel Width | 6.9mm four-sided equal ultra-narrow bezel |
| Panel Type | A-Si TFT LCD |
| Operating System | Android 11 |
| Memory | 2GB RAM |
| Storage | 32GB Flash |
| Connectivity | 10/100 Ethernet, Wi-Fi 6 (2.4G/5G), Bluetooth 5.0 |
| Audio Output | 2 * 10W Speakers |
| USB Ports | 1 * USB 3.0 HOST, 1 * USB 2.0 OTG |
| Power Input | 100–240V AC, 50/60Hz |
| Power Consumption | ≤190W (43″) – ≤548W (86″) |
| Standby Power | ≤0.5W |
| Operating Temperature | -20℃ to 60℃ |
| Operating Humidity | 10% to 80% RH |
| Chassis Thickness | Approx. 63–66mm (Ultra-slim design, wall-mount friendly) |
| Mounting | Wall mount (bracket included) |
| Screen Rotation | Software-supported: 0°, 90°, 180°, 270° |
| Package Contents | Display unit, wall mount bracket, remote control, power cable, user manual |






Key Features
Crystal-clear 3840 x 2160 resolution with 16.7M colors, 1200:1/1300:1 contrast ratio, and 178° wide viewing angles ensures vibrant, sharp content from any vantage point.

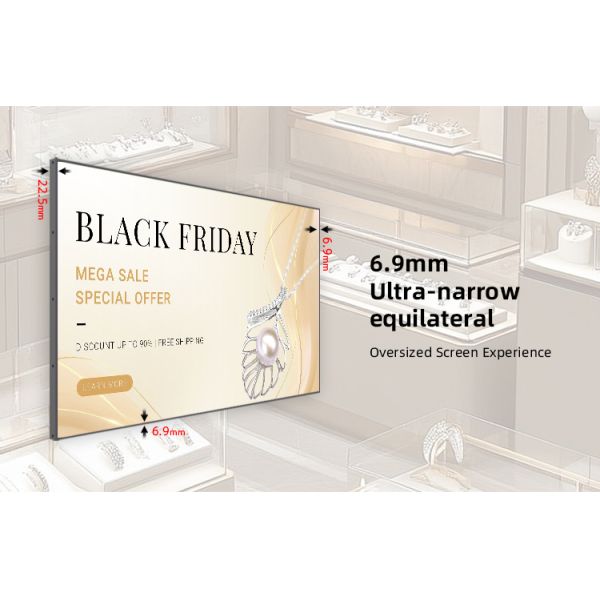

Features a uniform 6.9mm ultra-narrow bezel on all four sides for a seamless multi-screen viewing experience. The ultra-thin profile (as slim as 62.3mm) with OD12 backlight design allows for flush wall mounting and a modern, elegant appearance.
Standard 1000 cd/m² high brightness ensures clear visibility even in well-lit environments. Advanced DLED backlight with optional Local Dimming and uniformity enhancement provides consistent, high-quality illumination.
Powered by a quad-core RK3566 CPU (up to 1.8GHz) and Mali-G52 GPU, running Android 11. Supports installation of various apps for digital signage, streaming, and interactive content.
Comprehensive I/O includes USB 3.0, USB 2.0 OTG, and supports wired LAN (10/100M Ethernet) along with dual-band Wi-Fi (2.4GHz/5GHz, Wi-Fi 6 ready) and Bluetooth 5.0 for flexible content deployment and device pairing.
Includes a standard VESA wall mount. Supports software-based screen rotation (0°, 90°, 180°, 270°) for portrait or landscape orientation to fit any installation need.
Designed for 24/7 operation with a lifespan of up to 30,000 hours. Stable performance across a wide operating temperature range (0°C to 50°C).
