Specifications
Brand Name :
IDP
Model Number :
ID461AF
Certification :
CE,Rohs,FCC,CCC etc
Place of Origin :
China
MOQ :
1-100pcs
Price :
To be checked
Payment Terms :
T/T
Supply Ability :
1000pieces/3 weeks
Delivery Time :
1 – 7 working days
Packaging Details :
standard export package
Size :
46inch
Native Resolution :
1920X1080
Aspect Ratio :
16:9
Surface :
Antiglare
Active Area :
1018.08(H) x 572.67(V) mm
Dot Pitch :
0.17675(H) x 0.53025(V) mm
Brightness :
2500cd/m²
Contrast Ratio :
4000:1
Display Colors :
16.7M(8-bit)
Response Time :
6ms
View Angle :
89/89/89/89(L/R/U/D)
Frequency :
60Hz
Description

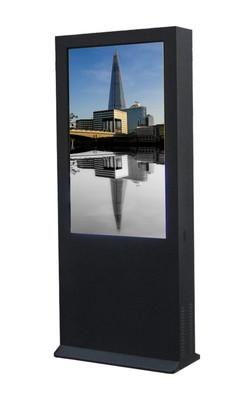

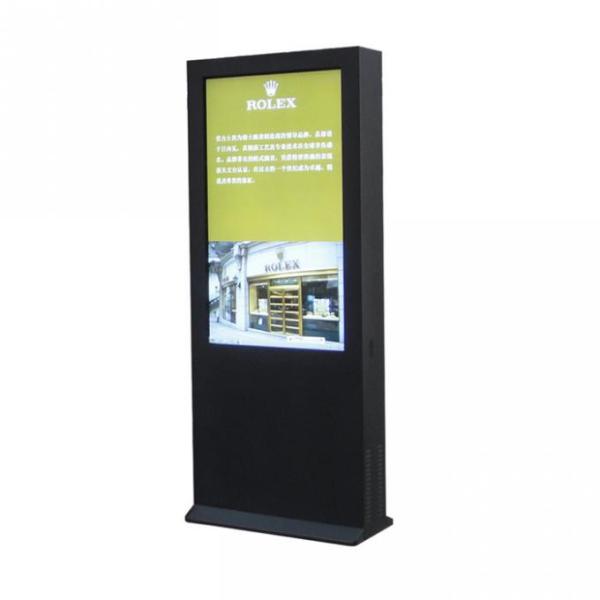

High Brightness 2500Cd/M2 Network Digital Signage Outdoor 46 Inch Floor Standing

At the beginning people went to change the advertisement in each high outdoor brightness digital signage(device, hereinafter) one by one. Assuming there are 800 devices, it will be time-and-labor consuming. In order to solve this problem, one embedded solution came out. It connected the devices together to a server by wifi – network lcd advertising display. Actually it was not good enough, especially when the wifi signal is weak or there are too many devices.

With the improvement and popularization of Android OS, the light of real network freestanding digital kiosk appeared. The Android digital signage(device, hereinafter) is a perfect solution for remotely management. First Connect the devices to the internet either by wifi, LAN or 3G. Second open your pc and deliver the advertisement to the devices easily, no matter where the devices locate. The stable Android OS makes the device work 7/24 hours safe and sound.

What’s more, the Android floor standing system network provides an access to users which make it possible to customize personalized applications. Users can define their own styles advertisement.

Main features:

1. Auto play back advertisement after power on, no need operation manually.

2. Support split screen, one screen window is divided into several sections for different usages.

3. Scrolling message, the pre-set message can be displayed.

4. Play HD 1080P videos and pictures.

5. Remotely manage devices in different locations by internet(*).

6. Support online video dreaming(*).

7. Easy upgraded if the advertisement business layout changes(*).

8. Support more apps with the upgrade of Android OS(*).

9. Optional function:PCAP touch, 4G, printer, camera, high brightness, real 4k, customized Android applications(*)

10. OEM/ODM service: digital signage enclosure, functions etc.

11. Available size:22 inch, 24 inch, 26 inch, 32 inch, 42 inch, 46 inch, 47 inch, 55 inch, 65 inch, 70 inch, 75 inch.

High Brightness 2500Cd/M2 Network Digital Signage Outdoor 46 Inch Floor Standing

Specifications:

Parameters
Panel Data Panel Brand For Samsung/LG
Size 46 inch
Native Resolution 1920x1080
Aspect Ratio 16:9
Surface Antiglare
Active Area 1018.08(H) x 572.67(V) mm
Dot Pitch 0.17675(H) x 0.53025(V) mm
Brightness 500cd/m2
Contrast Ratio 4000:1
Display Colors 16.7M
Response Time 6ms
View Angle 89/89/89/89(L/R/U/D)
Frequency 60Hz
Network Data(*) Android ARM Cortex-A7 Dual Core
RAM 1GB
Land flash 4GB
OS Android 4.1/4.2 or above
Video decoding HD H.264 2160p video decoding
Multi-format FHD(1920x1080P) video decoding
Audio Integrated HI-FI 100dB Audio Codec
Picture format JPG, PNG, JPEG...
TXT YES
Main I/O HDMI x1, VGA x1, SD/TF slot x1, USB x2, RJ45 x1
WiFi Built-in Wifi(802.11b/g/n)
General Information Image Resolution 5000 x 5000 px Max
Video Resolution 1920 x 1080p Max
Color Silver, Black, White or Customized
Material Fine Aluminum + Tempered Glass
Speaker 10W x2
Remote Control IR Remote Control
Menu Language English, Germany, Russian, French and Spanish etc
Power Supply AC 110 ~ 240V
Operation Temperature 0 ℃~40℃
Operation Humidity 20% ~ 80%
Operating Altitude 0~3,000 meters
Storage Temperature -20 ℃~60℃
Storage Humidity 0 ~ 90%
Installation Floor Stand

Applications:

  • Business shops: Shopping mall, supermarket, chain stores, cooperate building, hotel and restaurant etc.
  • Government or non-profit organization: bank, security department, insurance company, government, book stores, museum and school etc.
  • Entertainment: cinema, cafe shop, gym, scenic spot and bars etc.
  • Traffic department: metro station, bus, taxi, gas station and airport etc.

High Brightness 2500Cd/M2 Network Digital Signage Outdoor 46 Inch Floor Standing

Remarks: 1. (*) means the functions are for network version.

2. The specification is subject to change without notice in advance.
