3.5mm High Brightness 4k Seamless LCD Screen Splicing 3x3 Ad Player
3.5mm High Brightness 4k Seamless LCD Screen Splicing 3x3 Ad Player
3.5mm High Brightness 4k Seamless LCD Screen Splicing 3x3 Ad Player
3.5mm High Brightness 4k Seamless LCD Screen Splicing 3x3 Ad Player
Specifications
Brand Name :
IDP
Model Number :
ID55BS
Certification :
CE,Rohs,FCC,CCC etc
Place of Origin :
China
MOQ :
1-100pcs
Price :
TBC
Payment Terms :
T/T
Supply Ability :
1000pieces/3 weeks
Delivery Time :
1 – 7 working days
Packaging Details :
standard export package
Product name :
3.5mm High Brightness 4k Seamless Splicing Screen 3x3 Ad Player
Aspect Ratio :
16:9
Surface :
Antiglare
Active Area :
1209.6(H) X 680.4(V) mm
Dot Pitch :
0.210(H) X 0.630(V) mm
Brightness :
700cd/m2
Contrast Ratio :
4000:1
Display Colors :
16.7M
Response Time :
8ms
View Angle :
89/89/89/89(L/R/U/D)
Resolution :
3840X2160
Bezel to Bezel width :
3.5mm
Description

3.5mm High Brightness 4k Seamless Splicing Screen 3x3 Ad Player

Free shipping digital signage accessories for spare parts.

LCD splicing wall currently accounts for a large proportion of the video display market. According to different industries, the requirements of users are becoming higher and higher. The built-in function of the LCD splicing wall is becoming more and more powerful. The TV wall processor can combine multiple physical outputs into an ultra-high-resolution display output after resolution superposition, but the screen wall forms a logic display screen with ultra-high resolution, ultra-high brightness, and super large display scale, Complete the display functions of multiple signal sources (network signal, RGB signal, and video signal) in various ways such as windowing, moving and blooming on the screen wall. Multi signal access (NTSC, pal, 480i, 576i, 720I, 1080i, 1080p), m * n full-screen display, split-screen single signal display, any combination of single signal splicing display.

Main Features of 3.5mm High Brightness 4k Seamless Splicing Screen 3x3 Ad Player:

1. LG / Samsung panel.
2. High contrast and high brightness.
3. 24/7/365 each year, long lifetime.
4. Super-narrow seamless LCD video wall, gap(between two displays) is from the original tens of millimeters to current millimeters levers as 5.5mm, 5.3mm, 3.5mm, 1.8mm, and 1.7mm.

8. The brightness is uniform and the image is stable without flickering

Because every point of LCD keeps that color and brightness after receiving the signal, unlike CRT, which needs to refresh pixel points constantly. Therefore, the LCD has uniform brightness, high image quality, and absolutely no flicker.

9. Splicing method is optional

The splicing quantity of the LCD splicing wall can be arbitrarily selected (row (m)) × Column (n)), and the size of the screen can also be selected to meet the needs of different applications.

10. Flexible splicing display combination function

Personalized design can be carried out according to the requirements of different users, and functions such as single-screen display, whole screen display, arbitrary combination display, image roaming, image superpositions, and so on can be selected.

11. Advanced screen parameters and functions

In view of the possible inconsistency of parameters between the LCD screen and the driving circuit used in the LCD splicing curtain wall, the LCD splicing wall system has the adjustment functions of brightness, contrast, chroma, and white balance. After debugging, the parameters are automatically saved, so as to ensure the color consistency and brightness uniformity of the whole splicing screen.

12. Environmental protection and health

Compared with the rear projection (including CRT rear projection, DLP, etc.) splicing wall, the LCD splicing wall has low calorific value, no radiation, no flicker, no eye injury, and no harmful substances (such as lead, mercury, cadmium, and chromium). It is a new generation of environmental protection and health splicing wall.

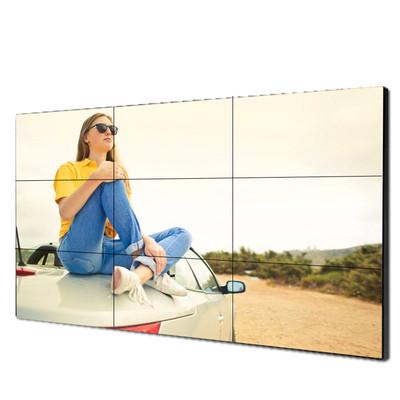

Pictures of 3.5mm High Brightness 4k Seamless Splicing Screen 3x3 Ad Player:
3.5mm High Brightness 4k Seamless LCD Screen Splicing 3x3 Ad Player3.5mm High Brightness 4k Seamless LCD Screen Splicing 3x3 Ad Player

Specifications of 3.5mm High Brightness 4k Seamless Splicing Screen 3x3 Ad Player:

Panel Data

Panel

 55" full new original Samsung Panel(DID)

Native Resolution

 3840X2160

Display colors

 16.7M

Brightness

 700cd/m2

Contrast Ratio

 4000:1

Dot Pitch

 0.210(H) X 0.630(V) mm

Display Area

 1209.6(H) X 680.4(V) mm

Bezel-to-bezel width

 3.5mm

View Angle

 89/89/89/89(L/R/U/D)

Response Time

 8ms

Suitable operation time

 18 hours per day
Basic spec Main Input Interfaces

VGA x 1

HDMI x 1

DVI x 1

BNC x 1

RJ45 x 1
Main Output interface

RS232 x 2

BNC x 1
Customizable

Customized functions are ready according to specific requirements.
Color

Silver, Black, White or Customized
Power Supply

AC 100 ~ 240V, 50/60 Hz
Operation Temperature

0 ℃~50℃
Operation Humidity

10% ~ 90% RH
Storage Temperature

-20℃~60℃

Remarks:

1.The specification is subject to change without notice in advance.

2.Free shipping digital signage accessories for spare parts.

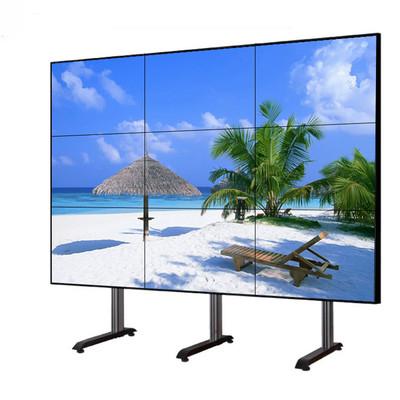

Other related pictures of 3.5mm High Brightness 4k Seamless Splicing Screen 3x3 Ad Player:

3.5mm High Brightness 4k Seamless LCD Screen Splicing 3x3 Ad Player
