1.7mm Ultra Thin Seamless LCD Video Wall Narrow Edge 700nits
1.7mm Ultra Thin Seamless LCD Video Wall Narrow Edge 700nits
1.7mm Ultra Thin Seamless LCD Video Wall Narrow Edge 700nits
1.7mm Ultra Thin Seamless LCD Video Wall Narrow Edge 700nits
1.7mm Ultra Thin Seamless LCD Video Wall Narrow Edge 700nits
1.7mm Ultra Thin Seamless LCD Video Wall Narrow Edge 700nits
1.7mm Ultra Thin Seamless LCD Video Wall Narrow Edge 700nits
1.7mm Ultra Thin Seamless LCD Video Wall Narrow Edge 700nits
Specifications
Brand Name :
IDP
Model Number :
ID46BU
Certification :
CE,Rohs,FCC,CCC etc
Place of Origin :
China
MOQ :
1-100pcs
Price :
TBC
Payment Terms :
T/T
Supply Ability :
1000pieces/3 weeks
Delivery Time :
1 – 7 working days
Packaging Details :
standard export package
Product name :
1.7mm Ultra-thin narrow edge Seamless LCD Video Wall 700nits
Aspect Ratio :
16:9
Surface :
Antiglare
Active Area :
1018.08(H)×572.67(V) mm
Dot Pitch :
0.17675(H) × 0.53025(V) mm
Brightness :
700cd/m2
Contrast Ratio :
4000:1
Display Colors :
16.7M
Response Time :
8ms
View Angle :
89/89/89/89(L/R/U/D)
Frequency :
60Hz
Bezel to Bezel width :
1.7mm
Description

1.7mm Ultra-thin narrow edge Seamless LCD Video Wall 700nits

LCD splicing wall currently accounts for a large proportion of the video display market. According to different industries, the requirements of users are becoming higher and higher. The built-in function of the LCD splicing wall is becoming more and more powerful. The TV wall processor can combine multiple physical outputs into an ultra-high-resolution display output after resolution superposition, but the screen wall forms a logic display screen with ultra-high resolution, ultra-high brightness, and super large display scale, Complete the display functions of multiple signal sources (network signal, RGB signal, and video signal) in various ways such as windowing, moving and blooming on the screen wall. Multi signal access (NTSC, pal, 480i, 576i, 720I, 1080i, 1080p), m * n full-screen display, split-screen single signal display, any combination of single signal splicing display.

Main Features of 1.7mm Ultra-thin narrow edge Seamless LCD Video Wall 700nits:

1. Our panels are imported from LG / Samsung.
2. The brightness of this display can reach 700nits.
3. The LCD has a contrast of 4000:1.
4. LCD can achieve 92% high color saturation.
5. The horizontal and vertical display angles can reach 178 °.
6. Support continuous use in 7x24 hours.
7. LCD is the representative of a flat panel display device, which is a real flat panel display
8. The thickness of the left and upper frames of the LCD splicing unit is 4.3mm; The thickness of the right and lower frames is 2.4mm; The thickness of the integrated splicing frame is only about 7mm! It can bring perfect visual enjoyment to splicing users.
9. The brightness is uniform, and the image is stable and does not flicker
LCD has uniform brightness, high image quality, and absolutely no flicker.
10. Flexible splicing display combination function
Single screen display, full-screen display, any combination display, and other functions can be selected according to the requirements of different users.

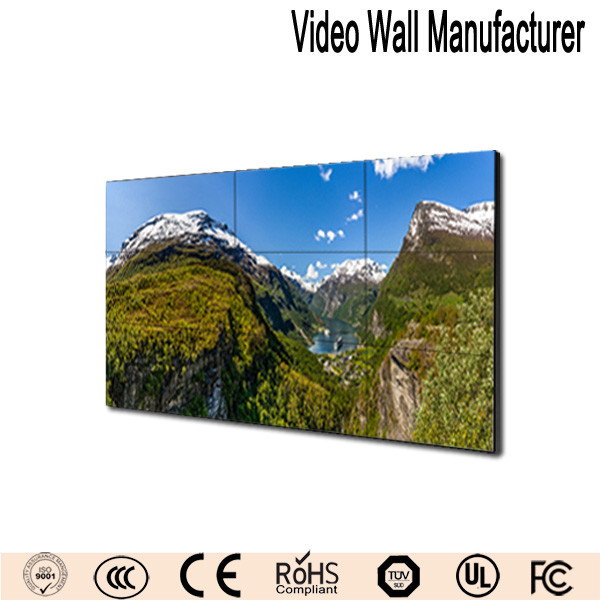

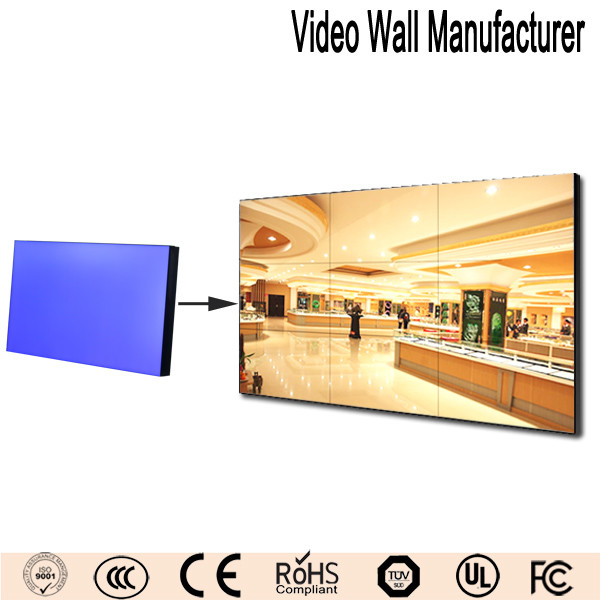

Pictures of 1.7mm Ultra-thin narrow edge Seamless LCD Video Wall 700nits:
1.7mm Ultra Thin Seamless LCD Video Wall Narrow Edge 700nits
1.7mm Ultra Thin Seamless LCD Video Wall Narrow Edge 700nits

Specifications of 1.7mm Ultra thin narrow edge Seamless LCD Video Wall 700nits:

Panel Data

Panel

 46" full new original Samsung Panel(DID)

Native Resolution

 1920X1080

Display colors

 16.7M

Brightness

 700cd/m2

Contrast Ratio

 4000:1

Dot Pitch

 0.17675(H) × 0.53025(V) mm

Display Area

 1018.08(H)×572.67(V) mm

Bezel-to-bezel width

 1.7mm

View Angle

 89/89/89/89(L/R/U/D)

Response Time

 8ms

Suitable operation time

 18 hours per day
Basic spec Main Input Interfaces

VGA x 1

HDMI x 1

DVI x 1

BNC x 1

RJ45 x 1
Main Output interface

RS232 x 2

BNC x 1
Customizable

Customized functions are ready according to specific requirements.
Color

Silver, Black, White or Customized
Power Supply

AC 100 ~ 240V, 50/60 Hz
Operation Temperature

0 ℃~50℃
Operation Humidity

10% ~ 90% RH
Storage Temperature

-20℃~60℃

Remarks: The specification is subject to change without notice in advance.

Other related pictures of 1.7mm Ultra-thin narrow edge Seamless LCD Video Wall 700nits:

1.7mm Ultra Thin Seamless LCD Video Wall Narrow Edge 700nits

FAQ for 1.7mm Ultra-thin narrow edge Seamless LCD Video Wall 700nits:

FAQ for Outdoor Digital Signage Solutions For Gas Stations Advertising:


Q: How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after delivery .


Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days or depend on the size and quantities of your order.


Q: What brand of screen are you using?
A: We are using Samsung, LG, and Samsung screens.


Q: Do you have your own enclosure factory?
A: Yes we do have our own enclosure factory, and we have the excellent structural Engineer, we hope to provide you with the excellent screen and shape, so OEM is also welcome.


Q: Do you give any discount?
A: We are Manufacturer, so we are able to give you the excellent price and excellent service at the same time.


Q: What payment methods does your company accept?
A: We accept most of the payment methods, but mainly accept T/T, Western Union, Paypal, and Money Gram
