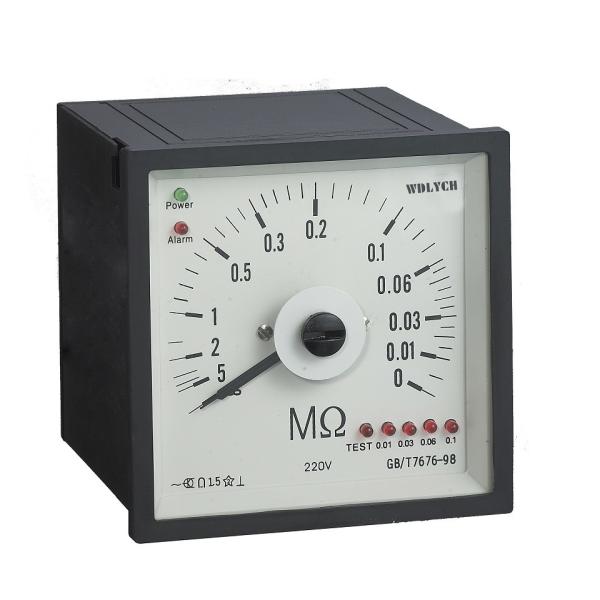

Double Structure Insulation Monitor , Insulation Resistance Monitor Moving Coil Structure
Double Structure Insulation Monitor , Insulation Resistance Monitor Moving Coil Structure
Specifications
Brand Name :
WDLYCH
Model Number :
WDZ96D-BMΩ
Certification :
ISO9001, CE, CCS
Place of Origin :
Wuhan, Hubei, China Mainland
MOQ :
5PCS
Price :
Negotiable
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
3,000PCS/Month
Delivery Time :
7 Working Days
Packaging Details :
Inner color box with outer export carton
Product Name :
AC Net Insulation Monitor
Application :
Marine Type
Measurement :
Insulation Resistance
Material :
ABS Plastic Shell Housing
Color :
Black+White
Display :
Analog Only
Structure :
Moving Coil
Accuracy Class :
1.5
Indicating Angle :
90 degree
Standard :
IEC60092-50
Warranty :
18 months
Description



Double Structure Insulation Monitor , Insulation Resistance Monitor Moving Coil Structure

1. Quick Overview:

This type of meters are analog electric measuring instruments, widely used for measuring AC/DC current, voltage, frequency, power,power factor, insulation resistance and synchronous indicating in AC/DC transmitting & distributing power system, switchboard, other electric & non-electric instruments.
Our 96*96mm & 72*72mm squre meter, and 110*110mm, 80*80mm are round type meter improved in structure, material, seals according to environmental conditions & demands in marine industry, which let our meter have the ability of not only advanced technology, reasonable structure, good quality, but also good appearance, light weight, anti-mechanical force and different climate.

2. Technical Parameter And Standards:


Double Structure Insulation Monitor , Insulation Resistance Monitor Moving Coil Structure

ItemTechnical DataStandards
Technical StandardGB/T7676-1998IEC60092-50
Environmental StandardGB8355-1987IEC92-504-74
Safety Standard GB4793-20IEC61010
Working Temperature-40-65℃
Temperature Infulence -13-33℃, 100% comply with accuracy class
Indicating Angle240°-270º (Synchroscope meter: 360º)
Color of Shell Black/white,board frame, terminal plate: black
Color of Dial PlateBlack/white(other colors are available)
Mounting Vertical Installation
Dimension 110*110mm, 80*80mm
96*96mm, 72*72mm, 48*48mm
OvershootLess than 20% when scale reaches to 2/3
Insulation WithstandCircuit& shell: AC2600V/1 min(Water area)
Vibration Resistance24.5m/s2
Impact Resistance147m/s2
Material Shell/terminal board: ABS; Cover: Transparent Glass


​

3. Ordering Code

Double Structure Insulation Monitor , Insulation Resistance Monitor Moving Coil Structure

4. Our Certificates


Double Structure Insulation Monitor , Insulation Resistance Monitor Moving Coil StructureDouble Structure Insulation Monitor , Insulation Resistance Monitor Moving Coil Structure


5. Using Instructions:

Monitoring the insulation resistance of ungrounded power network. When insulation resistance is lower than the preset value, alarm release.
Based on principle method, the net insulation monitor can be divided into following catagories:
a) . Monitor with measuring system, called integrated net insulation monitor, can be customized with self-dection function.
b). Monitor and measuring system are separated, called separated net insulation monitor.
c). Monitor the insulation resistance of two ungrounded power network at the same time, using integrated double circuit net insulation monitor.
