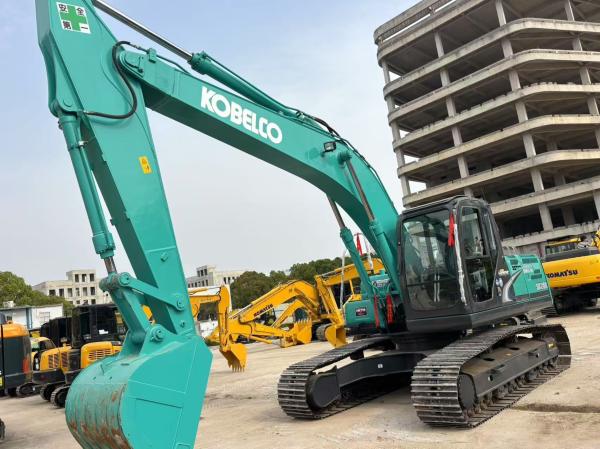

Used Kobelco SK200 Excavator 20.7T with 118kW Engine
Used Kobelco SK200 Excavator 20.7T with 118kW Engine
Used Kobelco SK200 Excavator 20.7T with 118kW Engine
Used Kobelco SK200 Excavator 20.7T with 118kW Engine
Used Kobelco SK200 Excavator 20.7T with 118kW Engine
Used Kobelco SK200 Excavator 20.7T with 118kW Engine
Used Kobelco SK200 Excavator 20.7T with 118kW Engine
Used Kobelco SK200 Excavator 20.7T with 118kW Engine
Used Kobelco SK200 Excavator 20.7T with 118kW Engine
Used Kobelco SK200 Excavator 20.7T with 118kW Engine
Used Kobelco SK200 Excavator 20.7T with 118kW Engine
Used Kobelco SK200 Excavator 20.7T with 118kW Engine
Specifications
Brand Name :
Kobelco
Model Number :
SK200
Certification :
ISO CE etc.
Place of Origin :
Japan
MOQ :
1
Price :
negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
9999
Delivery Time :
7 Days
Packaging Details :
20"/40" Container/Flat Rack/ Bulk Cargo / Ro-Ro Shipping for safety of your goods, professional, environmental and friendly packaging services will be provided for your selection.
Operating Weight :
20,700 kg
Transport Dimensions (Length×Width×Height) :
9.60×2.8×3.06 m
Refilling Capacities - Fuel Tank :
320 L
Refilling Capacities - Hydraulic Oil Tank :
140 (244) L
Engine Rated Power Output :
118 kW
Engine Rated Torque :
592 Nm
Bucket Digging Force :
157 kN
Arm Crowding Force :
112 kN
Max. Pump Flow :
2×220 + 20 L/min
Standard Auxiliary :
N & B + tilt piping
Max. Digging Depth :
6.7 m
Max. Digging Reach :
9.9 m
Max. Vertical Digging Depth :
6.16 m
Cab Strength :
Equivalent to ISO 10262 - 1998 Class 1
Air - conditioning :
Automatic air - conditioning (with internal air circulation, external air intake mechanical type, and air outlets set at the rear and upward)
Seat :
Suspension - type seat with fully reclining movable structure, two - way sliding function, adjustable - angle armrests, headrest, and safety belt
Control Mode :
H/S/Eco mode, power boost function, free switching between 1st/2nd speed travel (equipped with automatic deceleration device), and automatic standby stop
Bucket Capacity :
0.8 m³, 0.93 m³, 1.0 m³ (optional)
Arm Length :
2.4 m, 2.94 m (optional)
Boom Length :
5.65 m (optional)
Track Width :
600 mm, 800 mm (optional)
Ground Contact Pressure (600 mm Track) :
46 kPa (0.47 kgf/cm²)
Ground Contact Pressure (800 mm Track) :
36 kPa (0.37 kgf/cm²)
Hydraulic Oil Filter Element Clogging Detection Device :
Yes
Air Filter :
Dual - filter - type air filter
Work Machine Management System :
Yes (monitoring system)
Description

Product Description

The used Kobelco SK200 is a robust and reliable excavator designed for various construction and earthmoving tasks. With a solid operating weight of 20,700 kg, it offers stability and power to handle demanding jobs. Its transport dimensions (9.60×2.8×3.06 m) make it suitable for transportation between job sites.

Features & Characteristics

  • Powerful Engine: Equipped with an engine delivering 118 kW rated power output and 592 Nm rated torque, ensuring efficient performance.
  • Impressive Digging Capabilities: Boasts a max digging depth of 6.7 m, max digging reach of 9.9 m, and max vertical digging depth of 6.16 m, making it versatile for different excavation needs.
  • Strong Digging Forces: Bucket digging force of 157 kN and arm crowding force of 112 kN enable it to handle tough materials.
  • Comfortable Cab: Features a suspension - type seat with various adjustments, automatic air conditioning, and meets ISO 10262 - 1998 Class 1 for cab strength.
  • Flexible Controls: Offers H/S/Eco modes, power boost function, and easy switching between travel speeds.

Advantages

  • Reliability: Kobelco is a trusted brand, and the SK200 model is known for its durability.
  • Performance: Balances power and efficiency to get the job done effectively.
  • Versatility: Optional bucket capacities (0.8 m³, 0.93 m³, 1.0 m³), arm lengths (2.4 m, 2.94 m), and track widths (600 mm, 800 mm) allow customization for different tasks.
  • Comfort: The well - designed cab ensures operator comfort during long working hours.
  • Safety: Equipped with safety features like a safety belt and a strong cab structure.

Parameter Table

Parameter Value
Operating Weight 20,700 kg
Transport Dimensions (Length×Width×Height) 9.60×2.8×3.06 m
Refilling Capacities - Fuel Tank 320 L
Refilling Capacities - Hydraulic Oil Tank 140 (244) L
Engine Rated Power Output 118 kW
Engine Rated Torque 592 Nm
Bucket Digging Force 157 kN
Arm Crowding Force 112 kN
Max. Pump Flow 2×220 + 20 L/min
Standard Auxiliary N & B + tilt piping
Max. Digging Depth 6.7 m
Max. Digging Reach 9.9 m
Max. Vertical Digging Depth 6.16 m
Cab Strength Equivalent to ISO 10262 - 1998 Class 1
Air - conditioning Automatic air - conditioning (with internal air circulation, external air intake mechanical type, and air outlets set at the rear and upward)
Seat Suspension - type seat with fully reclining movable structure, two - way sliding function, adjustable - angle armrests, headrest, and safety belt
Control Mode H/S/Eco mode, power boost function, free switching between 1st/2nd speed travel (equipped with automatic deceleration device), and automatic standby stop
Bucket Capacity 0.8 m³, 0.93 m³, 1.0 m³ (optional)
Arm Length 2.4 m, 2.94 m (optional)
Boom Length 5.65 m (optional)
Track Width 600 mm, 800 mm (optional)
Ground Contact Pressure (600 mm Track) 46 kPa (0.47 kgf/cm²)
Ground Contact Pressure (800 mm Track) 36 kPa (0.37 kgf/cm²)
Hydraulic Oil Filter Element Clogging Detection Device Yes
Air Filter Dual - filter - type air filter
Work Machine Management System Yes (monitoring system)
