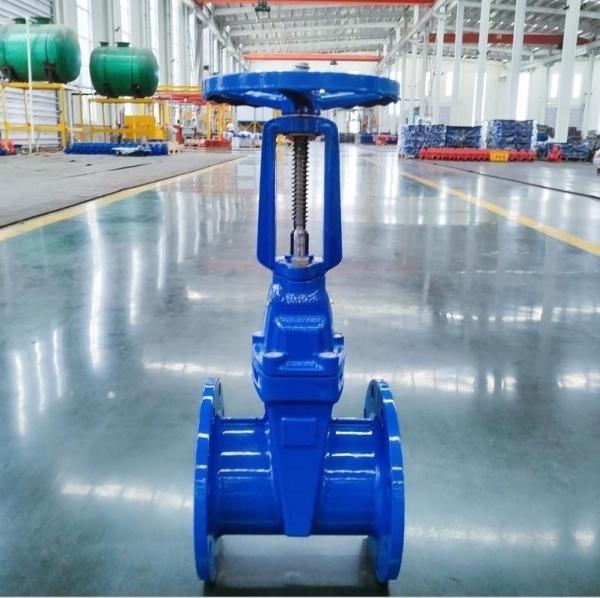

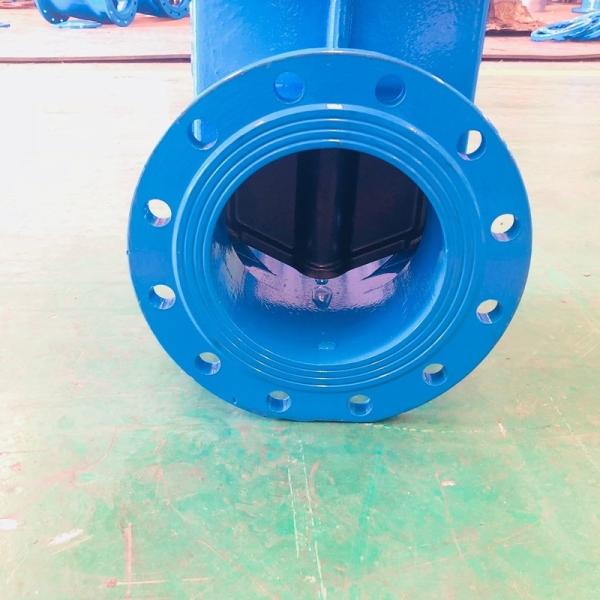

DIN3352 F4 Elastic Seat Rising Stem Valve DN100 Gate Valve Cast Iron
DIN3352 F4 Elastic Seat Rising Stem Valve DN100 Gate Valve Cast Iron
DIN3352 F4 Elastic Seat Rising Stem Valve DN100 Gate Valve Cast Iron
DIN3352 F4 Elastic Seat Rising Stem Valve DN100 Gate Valve Cast Iron
DIN3352 F4 Elastic Seat Rising Stem Valve DN100 Gate Valve Cast Iron
DIN3352 F4 Elastic Seat Rising Stem Valve DN100 Gate Valve Cast Iron
Specifications
Place of Origin :
China
Brand Name :
JHY
Model Number :
JHY-GV-GS
Packaging Details :
Standard export packing, plastic bag, woven bag, wooden case, or as required.
MOQ :
10 Piece
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10 Pieces 5~8 days
Delivery Time :
3~8 work days
Warranty :
3 years
Temperature of Media :
Medium Temperature
Media :
Water
Standard or Nonstandard :
Standard
Usage :
Water Oil Gas
Product name :
Gate valve
Operation :
Hand Wheel
Color :
Red，blue
Description
Cast Iron DIN3352 F4 Soft Sealing Elastic Seat DN100 Rising Stem Gate Valve
Product Description
Rising stem gate valves are commonly used in various industries, including oil and gas, water treatment, power generation, chemical processing, and more. They are suitable for applications where precise control, visual indication of valve status, and reliable sealing performance are required.

  1. Bonnet arrangement: Rising stem gate valves typically feature a bonnet that houses the stem and provides a seal to prevent leakage. The bonnet can be of different designs, such as bolted bonnet, pressure seal bonnet, or welded bonnet, depending on the pressure and temperature requirements of the application.

  2. Bi-directional flow: Rising stem gate valves are designed to allow flow in both directions, making them suitable for applications where the flow direction may change.

  3. Tight shut-off: Rising stem gate valves are known for their ability to provide a tight shut-off when fully closed. The gate comes into contact with the seat, creating a seal that prevents any leakage.

Main Feature:
1. Ductile iron
2. EPDM, vulcanization pressure technology
3. Spray coating approved by WRAS
Product Name
Material
Valve Body
Ductile iron GGG50
Disc
Ductile iron, overall EPDM coating
Stem
45# chrome-plated steel
Seat
EPDM + GGG50
Coating
WRAS approved epoxy, at least 250 micron thick
DIN3352 F4 Elastic Seat Rising Stem Valve DN100 Gate Valve Cast Iron
DIN3352 F4 Elastic Seat Rising Stem Valve DN100 Gate Valve Cast Iron
DIN3352 F4 Elastic Seat Rising Stem Valve DN100 Gate Valve Cast Iron
Our company
DIN3352 F4 Elastic Seat Rising Stem Valve DN100 Gate Valve Cast Iron
Real certificate
DIN3352 F4 Elastic Seat Rising Stem Valve DN100 Gate Valve Cast Iron
DIN3352 F4 Elastic Seat Rising Stem Valve DN100 Gate Valve Cast Iron
DIN3352 F4 Elastic Seat Rising Stem Valve DN100 Gate Valve Cast Iron
DIN3352 F4 Elastic Seat Rising Stem Valve DN100 Gate Valve Cast Iron
CE WRAS ISO9001 ISO14001
FAQ

Q: How many factories do Jhy have?

A: Three factories under Jhy company: foundry factory, valve design factory, and valve manufacturing factory.

Q: What is Jhy core product?

A: No.1 in gate valve manufacturing, No.7 in Y strainers producing.

Q: What is special for Jhy valves?

A: Customization all you ask, as logo casting, packaging logo painting, specially for your business.

Q: What can I get from cooperating with Jhy?

1. Unique valves, with customized service.

2. Timely production and delivery, time is money.

3. Market protection service, long term business strategy.
