UNI-T UT683KIT UT682D Wire Tracer Automatically Identify Open Short Polarity Multi-function Target Cable Tester
UNI-T UT683KIT UT682D Wire Tracer Automatically Identify Open Short Polarity Multi-function Target Cable Tester
UNI-T UT683KIT UT682D Wire Tracer Automatically Identify Open Short Polarity Multi-function Target Cable Tester
UNI-T UT683KIT UT682D Wire Tracer Automatically Identify Open Short Polarity Multi-function Target Cable Tester
UNI-T UT683KIT UT682D Wire Tracer Automatically Identify Open Short Polarity Multi-function Target Cable Tester
UNI-T UT683KIT UT682D Wire Tracer Automatically Identify Open Short Polarity Multi-function Target Cable Tester
UNI-T UT683KIT UT682D Wire Tracer Automatically Identify Open Short Polarity Multi-function Target Cable Tester
UNI-T UT683KIT UT682D Wire Tracer Automatically Identify Open Short Polarity Multi-function Target Cable Tester
UNI-T UT683KIT UT682D Wire Tracer Automatically Identify Open Short Polarity Multi-function Target Cable Tester
UNI-T UT683KIT UT682D Wire Tracer Automatically Identify Open Short Polarity Multi-function Target Cable Tester
UNI-T UT683KIT UT682D Wire Tracer Automatically Identify Open Short Polarity Multi-function Target Cable Tester
UNI-T UT683KIT UT682D Wire Tracer Automatically Identify Open Short Polarity Multi-function Target Cable Tester
Specifications
Brand Name :
UNI-T
Model Number :
UT682D
Certification :
-
Place of Origin :
-
MOQ :
1
Price :
USD125/PC
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000
Delivery Time :
in stock
Product name :
UT683KIT
Headset jack :
3.5mm
Model :
Wire Tracer
customized support :
OEM, ODM
Description

Specifications of UT682 Series Wire Tracker/Tone and Probe

Specifications Range UT682 UT682D
Wire tracking features Wire types LAN cabletelephone linecoaxial cableelectric wire Telephone linetwisted-
pairelectric wire
Indication light for signal strength √
Live switchboard wire tracing √
Switchboard wire tracing distance ≥100m
Telephone lines tracking distance ≥3000m ≥3000m
Unshielded cables tracking distance ≥320m
Shielded cables tracking distance ≥320m
Open and short circuit test √
Polarity indication for
telelphone lines		 DCV function, range:
±(5V~52V)		 √ √
Telephone lines and LAN cables distinction Jacks distinction √ √
Broken wire tracking √
Transmitter output voltage ≥12V peak-peak 8V DC with a new battery
Transmitter low battery indication 6.6V±0.5V
Transmitter power supply 9V battery √ √
Max transmitter working current 25mA
Headphone jack for receiver √
Receiver power supply 9V battery √ √
Max receiver standby current ~10mA √ √
Max receiver operating current <40mA (AC, RMS) √ √
Wire alignment Line sequence measurement 9 LEDs (LED1~LED8, LED_G) √
Line sequence measuring speed Fast and slow selectable √
LAN cable: shielded/unshielded indication √
Transmitter input
voltage protection		 52V DC 60V DC
Operating environment Operating temperature: 0~40℃; Storage temperature: -10~50℃
Operating humidity: 20~75%RH; Storage humidity: 10~90%RH; Altitude: ≤2000m
General Characterisitics
Product color Red and grey
Product net weight UT682: Transmitter-125g, receiver-153g; UT682D: Transmitter-150g, Receiver-130g
Product size UT682: Transmitter-125mm x 48mm x 28mm, receiver-195mm x 48mm x 30mm
UT682D: Transmitter-74mm x 68mm x 28mm, receiver-208mm x 47mm x 33mm

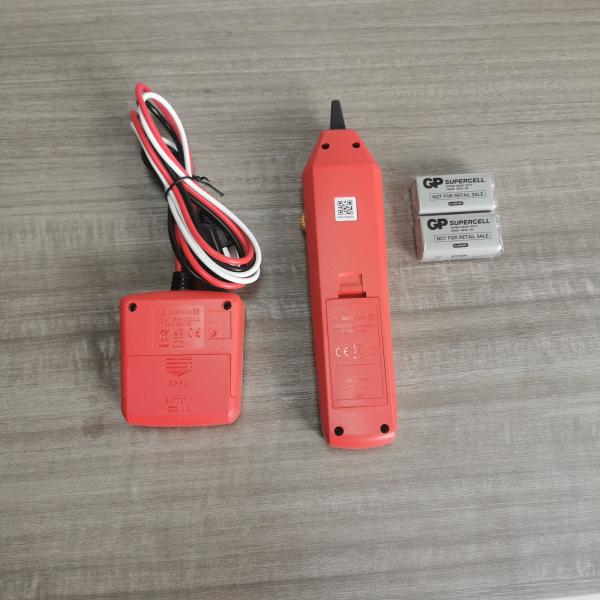

Standard accessories 9V battery x 2, RJ11 cable (UT682), RJ45 cable (UT682), RJ11 cable with alligator clips (UT682)
Standard individual packing Blister (UT682), carrying bag (UT682), gift box (UT682D), English manual
Standard quantity per carton UT682: 24pcs; UT682D: 20pcs
Standard carton measurement UT682: 575mm x 310mm x 430mm; UT682: 425mm x 265mm x 260mm
Standard carton gross weight UT682: 12.3kg; UT682D: 7.5kgUNI-T UT683KIT UT682D Wire Tracer Automatically Identify Open Short Polarity Multi-function Target Cable TesterUNI-T UT683KIT UT682D Wire Tracer Automatically Identify Open Short Polarity Multi-function Target Cable TesterUNI-T UT683KIT UT682D Wire Tracer Automatically Identify Open Short Polarity Multi-function Target Cable TesterUNI-T UT683KIT UT682D Wire Tracer Automatically Identify Open Short Polarity Multi-function Target Cable TesterUNI-T UT683KIT UT682D Wire Tracer Automatically Identify Open Short Polarity Multi-function Target Cable TesterUNI-T UT683KIT UT682D Wire Tracer Automatically Identify Open Short Polarity Multi-function Target Cable Tester
