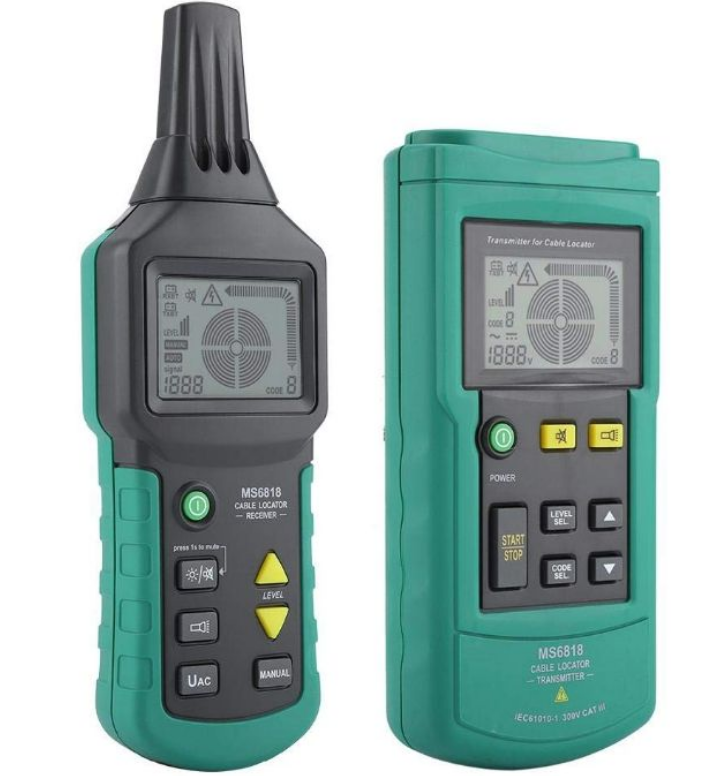

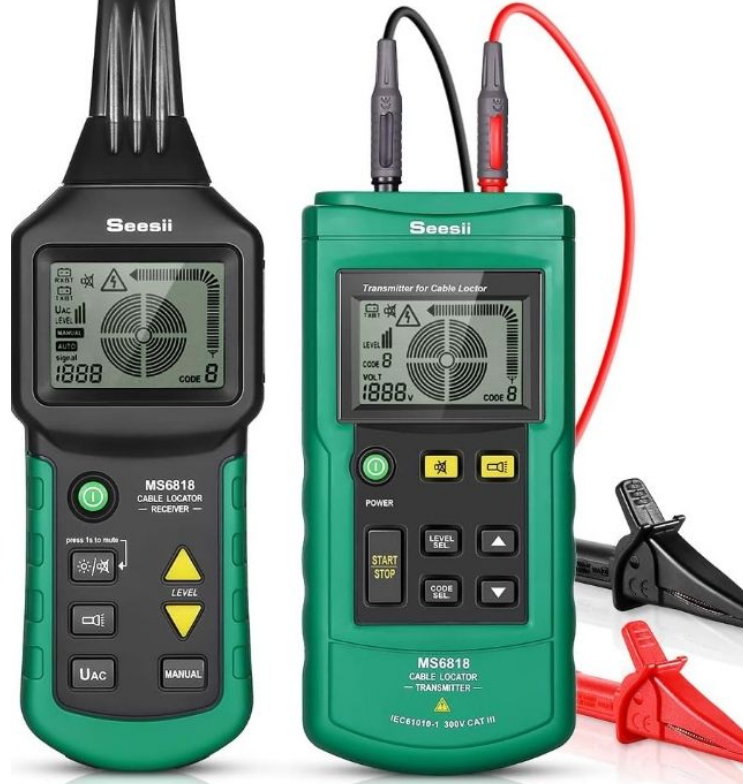

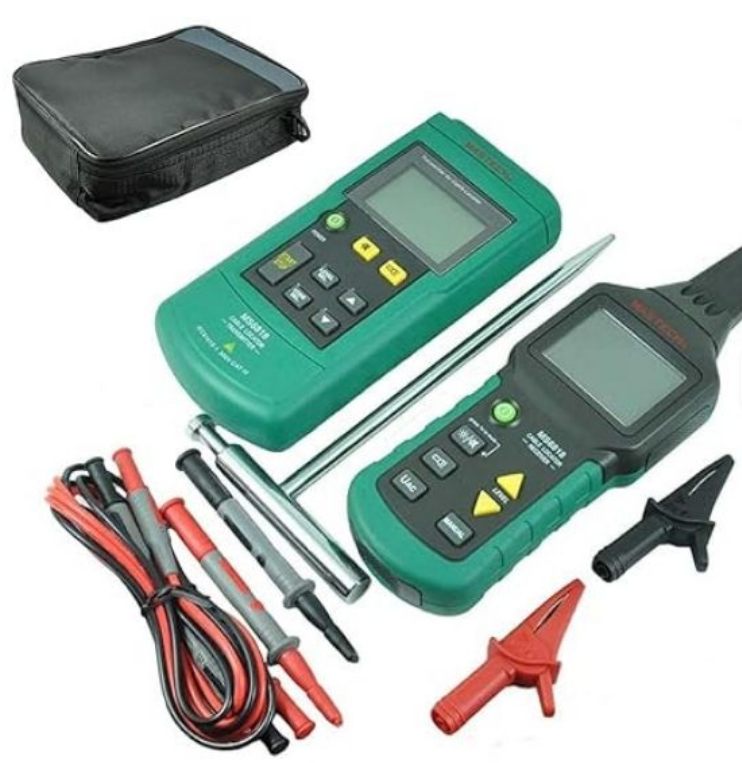

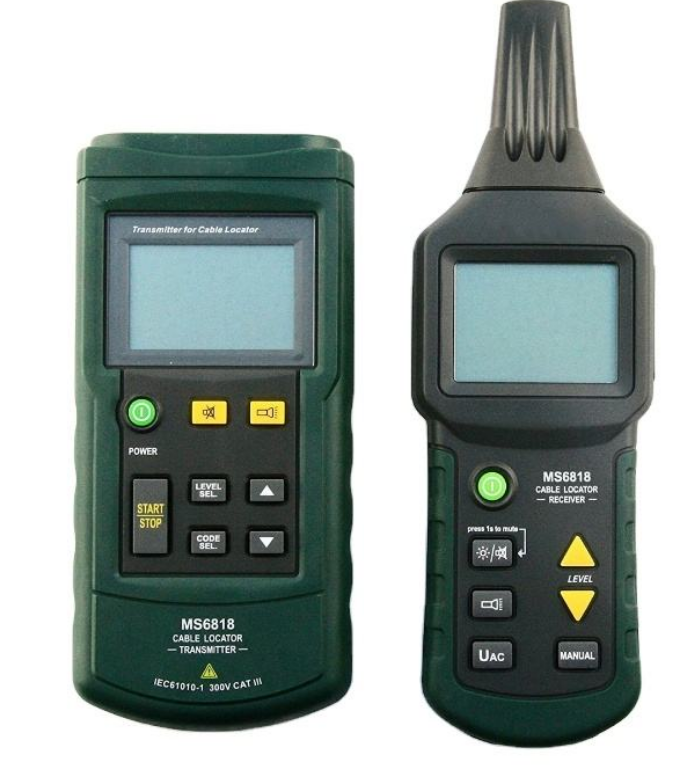

MASTECH MS6818 Cable Tracker: Advanced Cable Testing and Fault Location Device

The MASTECH MS6818 is a professional-grade cable tracker designed for identifying and tracking cables or wires within a group and diagnosing open or short circuits. With its robust construction and advanced features, the MS6818 ensures accurate and efficient troubleshooting for both professionals and DIY enthusiasts.

Key Features:

• Multifunctional Cable Tracking: Identify and trace cables and wires within a group, and diagnose faults such as open or short circuits.
• Sensitivity Adjustable: Allows users to adjust sensitivity for accurate cable detection in different environments.
• Backlight & Work light: Easy-to-read display in dim environments.
• Safety Certified: CAT III 300V certifications ensure safe operation.
• Additional Features: Includes a built-in speaker for audio feedback, LED indicators for visual confirmation, and auto power off.

Specifications:

• Technical Parameters of Transmitter
  • Output Signal: 125kHz
  • External Voltage: DC 12~400V/AC 12~400V(50~60Hz); ±2.5%
  • Fuse: F0.5A 1000V
  • Min/Max current: about 31mA/115A
• Technical Parameters of Receiver
  • Single pole: about 0~2m
  • Dual pole: about 0~0.5m
  • Single loop: line up to 2.5m
  • Depth of Tracking: The Depth of Tracking Depends on the Material and Specific Applications
  • Cable locating mode:
  • Min/Max current: about 32mA/89A

Benefits:

• Versatility: Suitable for a wide range of cable types and environments, providing reliable cable tracking and fault diagnosis.
• Ease of Use: User-friendly interface with adjustable sensitivity and data hold functions for convenience.
• Safety: CE, ETL, and RoHS certifications ensure safe and compliant operation in various testing environments.

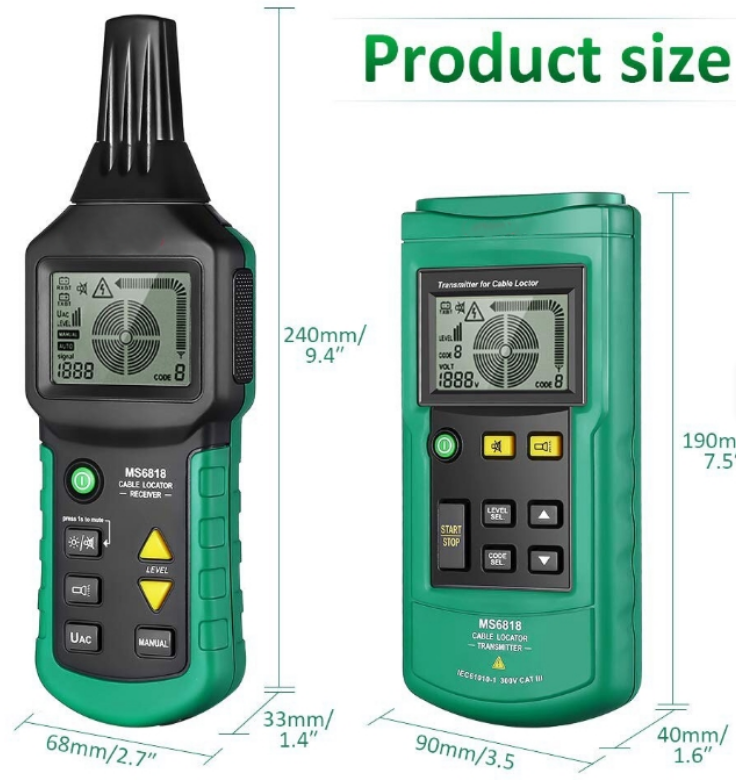

• Portability: Compact design and lightweight build make it easy to carry and use in various field conditions.
