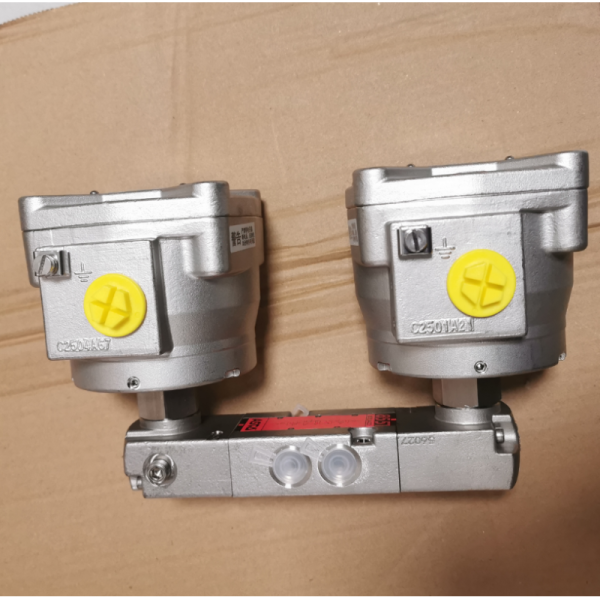

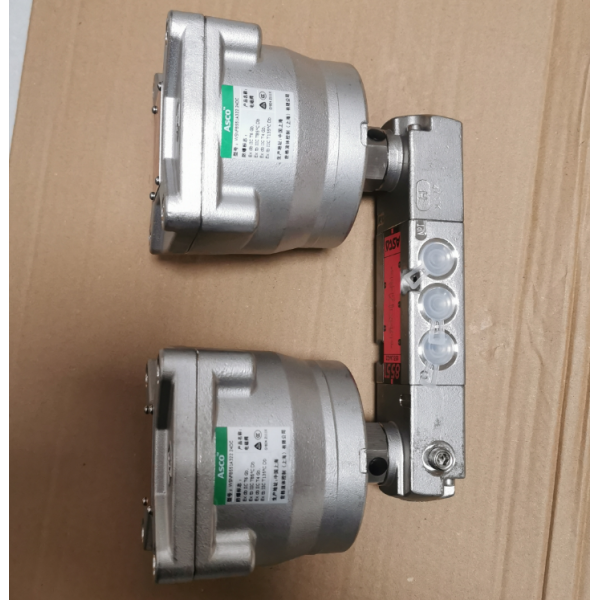

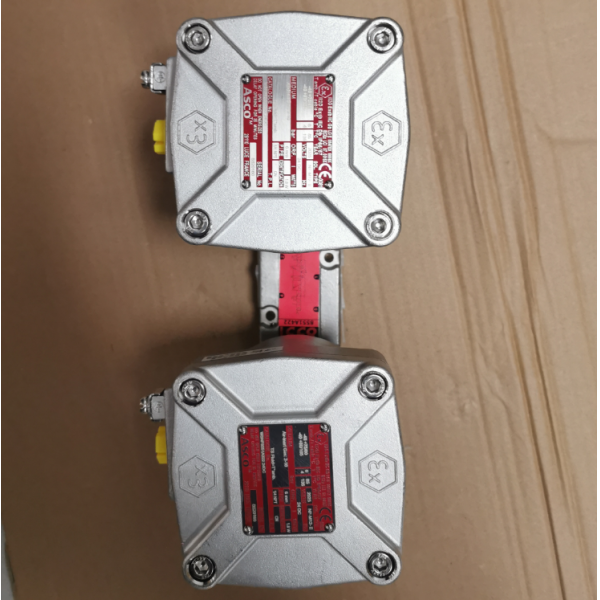

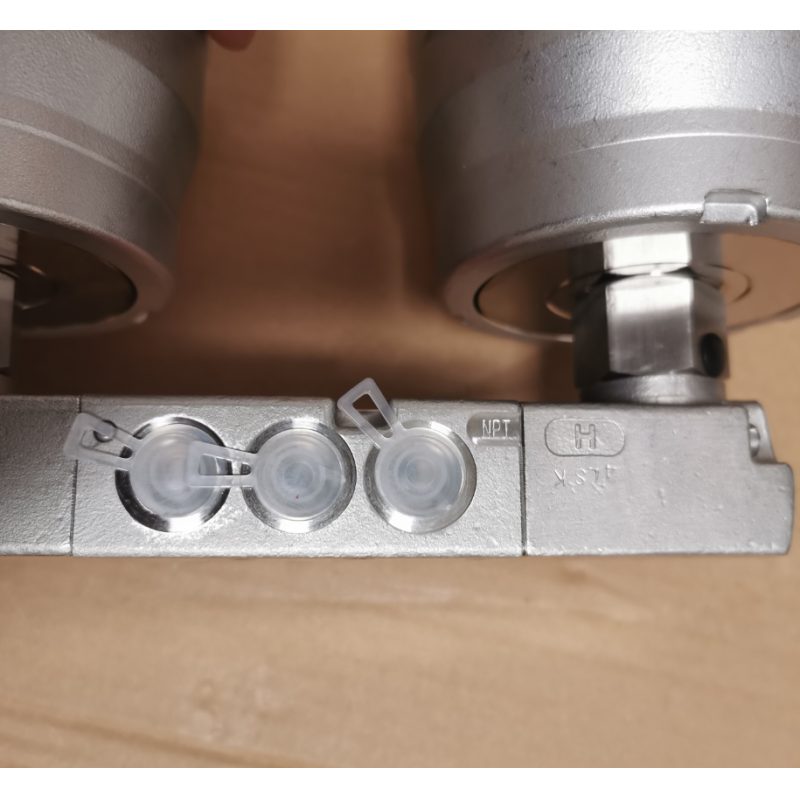

ASCO WSNF8551A322 24VDC Solenoid valve
ASCO WSNF8551A322 24VDC Solenoid valve
ASCO WSNF8551A322 24VDC Solenoid valve
ASCO WSNF8551A322 24VDC Solenoid valve
ASCO WSNF8551A322 24VDC Solenoid valve
ASCO WSNF8551A322 24VDC Solenoid valve
ASCO WSNF8551A322 24VDC Solenoid valve
ASCO WSNF8551A322 24VDC Solenoid valve
ASCO WSNF8551A322 24VDC Solenoid valve
ASCO WSNF8551A322 24VDC Solenoid valve
ASCO WSNF8551A322 24VDC Solenoid valve
ASCO WSNF8551A322 24VDC Solenoid valve
ASCO WSNF8551A322 24VDC Solenoid valve
ASCO WSNF8551A322 24VDC Solenoid valve
Specifications
Brand Name :
ASCO
Model Number :
WSNF8551A322
Certification :
-
Place of Origin :
China
MOQ :
1
Price :
US880/PC
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
10000
Delivery Time :
2weeks
Packaging Details :
Original
WARRANY :
1 YEAR
Product Weight :
6.73 kg
Min to Max Ambient Temperature :
-40 - 75 °C
Min to Max Fluid Temperature :
-40 - 80 °C
Description

ASCO WSNF8551A322 24VDC Solenoid valve

Specifications

Body Material:Stainless Steel

Flow (Cv) / Flow (Kv):0.87 / 0.75

Function:5/2 Solenoid Air Operated Return

Pipe/Port Type & Size:NPTF 1/4

Product Type:Solenoid Valve

Valve Actuation:Solenoid - Pilot Operated

Media:Air, Inert Gas

Min to Max Operating Pressure (Air):2 - 10 bar

Product Weight:6.73 kg

Coil Class:F

Min to Max Ambient Temperature:-40 - 75 °C

Min to Max Fluid Temperature:-40 - 80 °C

Orifice Size:6 mm

Voltage:24 Volts DC

Watt Rating:1.8 W

Standards & Regulations:ATEX Zone 1-21

Operating Environment:Hazardous

Features

  • Available in two versions, mounted directly to actuators with NAMUR interface per VDI/VDE 3845 or threaded to mount on the pipe

  • Valve body in Aluminum, Brass, or Stainless steel 316L

  • Exhaust ports are pipeable, providing better protection against harsh environments

  • DIN, watertight, and explosion-proof solenoids are available for use in mission-critical and hazardous areas

  • Low-power constructions are ideal for remote and alternative power locations

  • Integral breather block vents to spring side of the actuator to exhaust, preventing corrosion

  • Single- and dual-solenoid constructions are available that mount in any position

  • Global Ex approvals; ATEX, IEC EX, NEPSI, CUTR, KOSHA, UL, CSA, InMetro

  • All ports of NAMUR on the same side for a better water , DUST protection

  • Available will all Explosion proof solenoids: Ex d, Ex mb, Ex ia/Ib, Ex e mb, NEMA

  • Available in an arctic version, suitable for use in temperatures as low as -60°C

  • Compact spool valve convertible from 3/2 to 5/2 with a single flow plate design (551 Series only)ASCO WSNF8551A322 24VDC Solenoid valveASCO WSNF8551A322 24VDC Solenoid valveASCO WSNF8551A322 24VDC Solenoid valveASCO WSNF8551A322 24VDC Solenoid valveASCO WSNF8551A322 24VDC Solenoid valve
