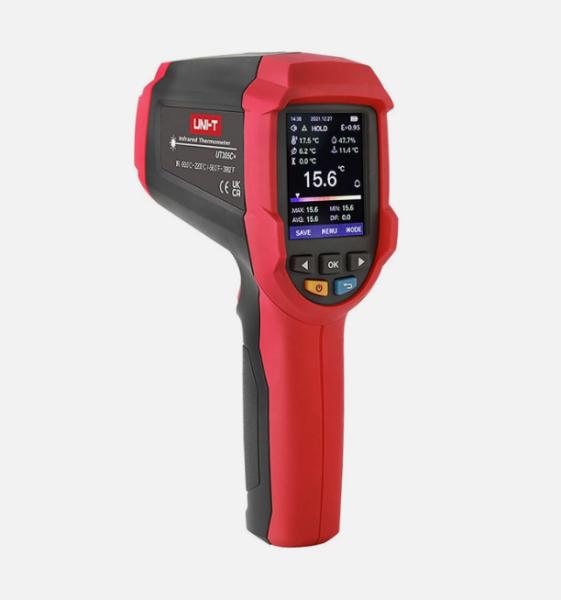

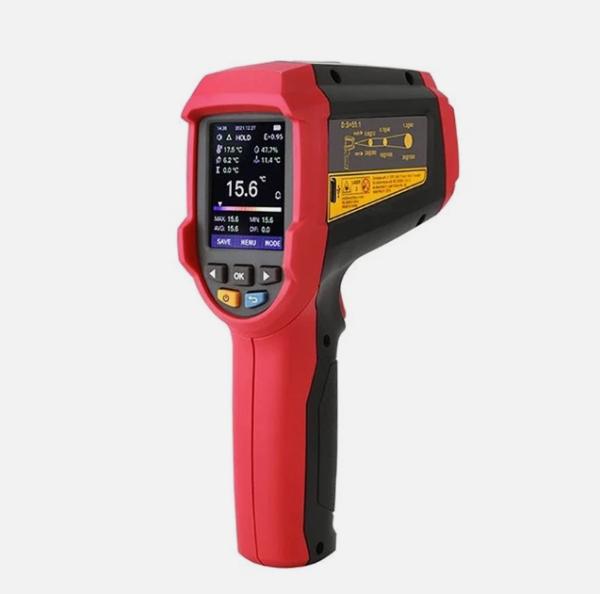

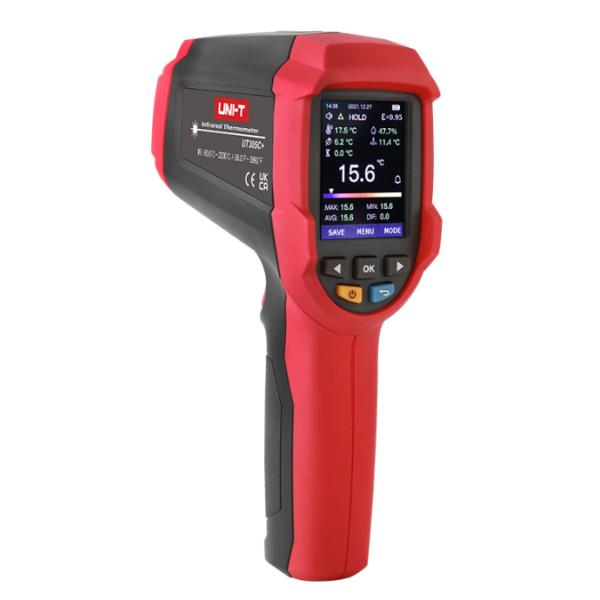

UNI-T UT305C+ High-Temperature Infrared Thermometer: Professional-Grade Non-Contact Temperature Measurement
UNI-T UT305C+ High-Temperature Infrared Thermometer: Professional-Grade Non-Contact Temperature Measurement
UNI-T UT305C+ High-Temperature Infrared Thermometer: Professional-Grade Non-Contact Temperature Measurement
UNI-T UT305C+ High-Temperature Infrared Thermometer: Professional-Grade Non-Contact Temperature Measurement
UNI-T UT305C+ High-Temperature Infrared Thermometer: Professional-Grade Non-Contact Temperature Measurement
UNI-T UT305C+ High-Temperature Infrared Thermometer: Professional-Grade Non-Contact Temperature Measurement
UNI-T UT305C+ High-Temperature Infrared Thermometer: Professional-Grade Non-Contact Temperature Measurement
UNI-T UT305C+ High-Temperature Infrared Thermometer: Professional-Grade Non-Contact Temperature Measurement
Specifications
Brand Name :
uni-t
Model Number :
UT305+
Certification :
/
Place of Origin :
China
MOQ :
1pc
Price :
USD 260 UNIT
Payment Terms :
T/T
Supply Ability :
1000pc/month
Delivery Time :
1-3 working days
Packaging Details :
original packing
Measurement range :
-50°C~2200°C
Relative humidity :
10%RH~90%RH
Type K thermocouple :
-50°C~1370°C (-58.0℉～2498℉)
Spectral response :
8µm~14µm
Display resolution :
0.1℃（0.1℉）
Description

Specifications of UT305+ Series Infrared Thermometers

Specifications UT305A+ UT305C+
Measurement range Infrared temperature measurement -50°C~1850°C

(-58.0℉～3362℉)

 -50°C~2200°C

(-58.0℉～3992℉)
The environment temperature measurement -10°C~50°C (14℉～122℉)
Relative humidity 10%RH~90%RH
Type K thermocouple -50°C~1370°C (-58.0℉～2498℉)
Accuracy Infrared temperature measurement -50°C~0°C, ±(1.0℃+0.1℃/℃)

-58℉~32℉, ±(2.0℉+0.1℉/℉)

0°C~2200°C, ±1.0℃ or ±0.01×t℃ (Which is greater)
32℉~3992℉, ±2.0℉ or ±0.01×t℉ (Which is greater)
The environment temperature measurement -10°C~0°C (14℉~32℉), ±1.0°C (±2.0℉) 0°C~40°C (32℉~104℉), ±0.5℃ (±1.0℉)

40°C~50°C (104℉~122℉), ±1.0℃ (±2.0℉ )
Relative humidity ±5%RH
Type K thermocouple ±(0.005×t+1.5)℃, ±(0.005×t+3.0)℉
Certification CE UKCA
Diastance ratio(D:S) 55:1
Emissivity 0.1~1.0 (adjustable)
Spectral response 8µm~14µm
Repeatability of infrared temperature measurement ±0.005×t℃(℉)or 1℃(2℉) (Which is greater)
Display resolution 0.1℃(0.1℉)
Unit conversion ℃ / ℉
Laser point Single laser, output < 1 mW, class II
Data storage 999 groups
Data output format PDF,CSV
Data communication or charging interface Type-C USB
Battery Li-ion 3.7V 2600mAh 18650 rechargeable lithium-ion battery
Charging time No more than 3 hours
Continuous working time Work continuously for no less than 20 hours on full charge
Buzzer alarm √
Trigger lock function and reservation measurement √
Real time, date √
LCD type 2.4 inch TFT LCD 320 * 240 pixels
temperature coefficient ±0.1℃/℃ or ±0.1%℃/℃, ±0.1℉/℉ or ±0.1%℉/℉(Which is greater)
Work at an altitude of No more than 2000 meters
Drop test 1m
Standard k-type thermocouple probe (bead type)
Measurement range -40°C to 260°C (-40°F to 500°F)
Accuracy 0.075× T (t is measured temperature)
Lenth 1 m (40 in) long K type thermocouple cable with standard micro thermocouple connector and bead probe
General Characteristics
Power Li-ion 3.7V 2600mAh 18650 rechargeable lithium-ion battery
LCD screen size 37mm x 49mm
Product color red and gray
Net weight 375 g
Product size 205 x 65 x 124 mm
Standard accessories Type-C data cable, Type K thermocouple probe (bead Type)
Standard packing Gift box, tool box, instruction manual, warranty card
Standard packing quantity 1 pc
Standard packing size 365*160*300 mm

UNI-T UT305C+ High-Temperature Infrared Thermometer: Professional-Grade Non-Contact Temperature Measurement
