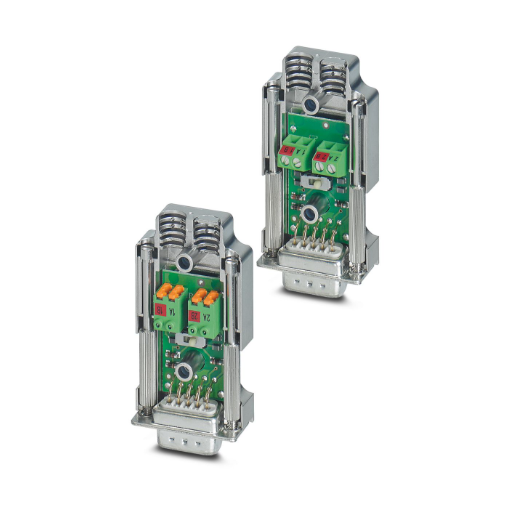

Phoenix Contact 2744380 SUBCON-PLUS-PROFIB/AX/SC - D-SUB bus connector
Phoenix Contact 2744380 SUBCON-PLUS-PROFIB/AX/SC - D-SUB bus connector
Phoenix Contact 2744380 SUBCON-PLUS-PROFIB/AX/SC - D-SUB bus connector
Phoenix Contact 2744380 SUBCON-PLUS-PROFIB/AX/SC - D-SUB bus connector
Phoenix Contact 2744380 SUBCON-PLUS-PROFIB/AX/SC - D-SUB bus connector
Phoenix Contact 2744380 SUBCON-PLUS-PROFIB/AX/SC - D-SUB bus connector
Phoenix Contact 2744380 SUBCON-PLUS-PROFIB/AX/SC - D-SUB bus connector
Phoenix Contact 2744380 SUBCON-PLUS-PROFIB/AX/SC - D-SUB bus connector
Specifications
Brand Name :
phoenix contact
Model Number :
2744380
Certification :
CCC,CE
Place of Origin :
Germany
MOQ :
1
Price :
$39/PC
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10
Delivery Time :
5-8 work days
Packaging Details :
carton
Product type :
Data plug
Maximum power dissipation for nominal condition :
0.025 W
Nominal voltage UN :
5 V
Nominal current IN :
100 mA
Connection method :
D-SUB connector
Stripping length :
5 mm
Material :
ABS (metal-plated)
Insertion :
> 200
Degree of protection :
IP40
Ambient temperature :
-20 °C ... 75 °C
Description

Phoenix Contact 2744380 In Stock

D-SUB connector, 9-pos., male connector, axial version with two cable entries, bus system: PROFIBUS DP up to 12 Mbps, termination resistor can be switched on via slide switch, pin assignment: 3, 5, 6, 8; screw connection terminal blocks

The D-SUB series, SUBCON-PLUS-PROFIB/... was specially designed for use in PROFIBUS systems up to 12 Mbps. Under field conditions, it allows convenient and fast connection of the incoming and outgoing bus cable. The terminating resistor is already integrated in all versions. It can be connected externally by means of a slide switch. At the same time, the outgoing bus segment is switched off. This makes it easy to start up segment by segment while incorrect terminations are avoided.
