Dwyer Flow Switch V4-SS-U-AT-316
Dwyer Flow Switch V4-SS-U-AT-316
Dwyer Flow Switch V4-SS-U-AT-316
Dwyer Flow Switch V4-SS-U-AT-316
Dwyer Flow Switch V4-SS-U-AT-316
Dwyer Flow Switch V4-SS-U-AT-316
Dwyer Flow Switch V4-SS-U-AT-316
Dwyer Flow Switch V4-SS-U-AT-316
Specifications
Brand Name :
Dwyer
Model Number :

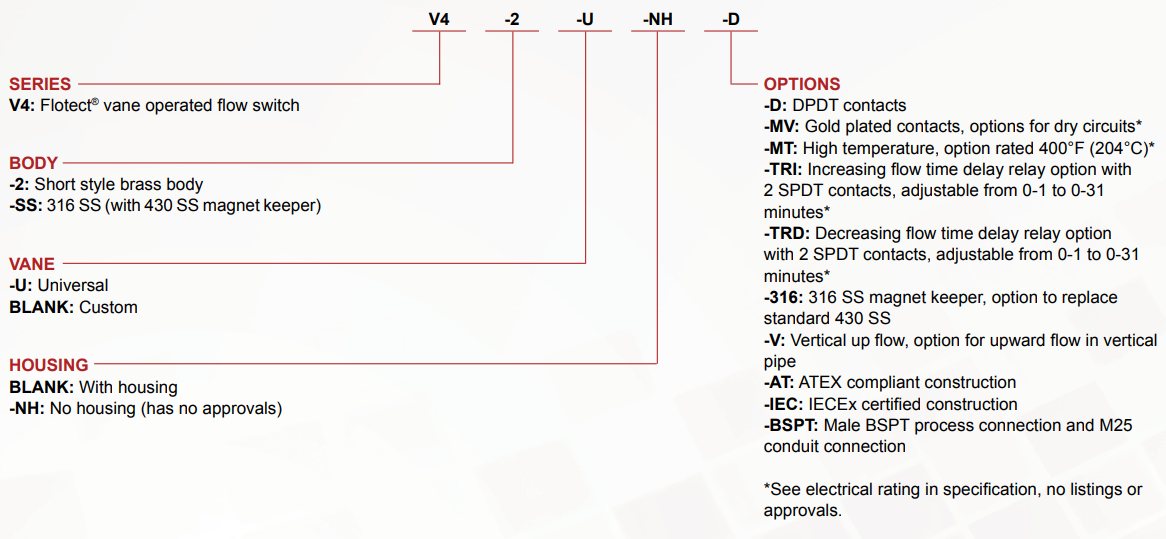

V4-SS-U-AT-316
Certification :
CCC,CE
Place of Origin :
USA
MOQ :
1
Price :
USD$1400/PC
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10
Delivery Time :
4-6 weeks
Packaging Details :
carton
Service :
Gases or liquids compatible with wetted materials
Wetted Materials :
316 SS; Body
Temperature Limit :
-4 to 275°F
Pressure Limit :
Brass body 1000 psig , 316 SS body 2000 psig
Switch Type :
SPDT snap switch standard, DPDT snap switch optional
Process Connection :
1-1/2˝ male NPT or 1-1/2˝ male BSPT
Conduit Connection :
3/4˝ female NPT standard or M25 with -BSPT option
Weight :
2kg
Description

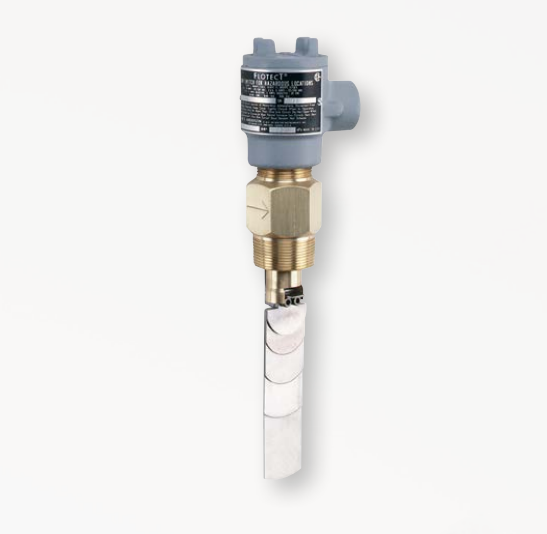

Dwyer Flow Switch V4-SS-U-AT-316

Unique magnetically actuated switching design gives superior performance
• Features a free-swinging vane which attracts a magnet within the solid metal switch body, actuating a snap switch by means
of a simple lever arm with no bellows, springs, or seals to fail
• Leak proof body machined from bar stock
• Electrical assembly can be easily replaced without removing the unit from installation so that the process does not have to
be shut down
• Installs directly and easily into pipeline with a thredolet, tee, or flange (see application drawings)
• High pressure rating of 1000 psig (69 bar) with the brass body and 2000 psig (138 bar) with the 316 SS body
• Choice of custom vane calibrated for your application, Model V4, or field adjustable multilayer vane, Model V4-2-U (see set
point chart)
