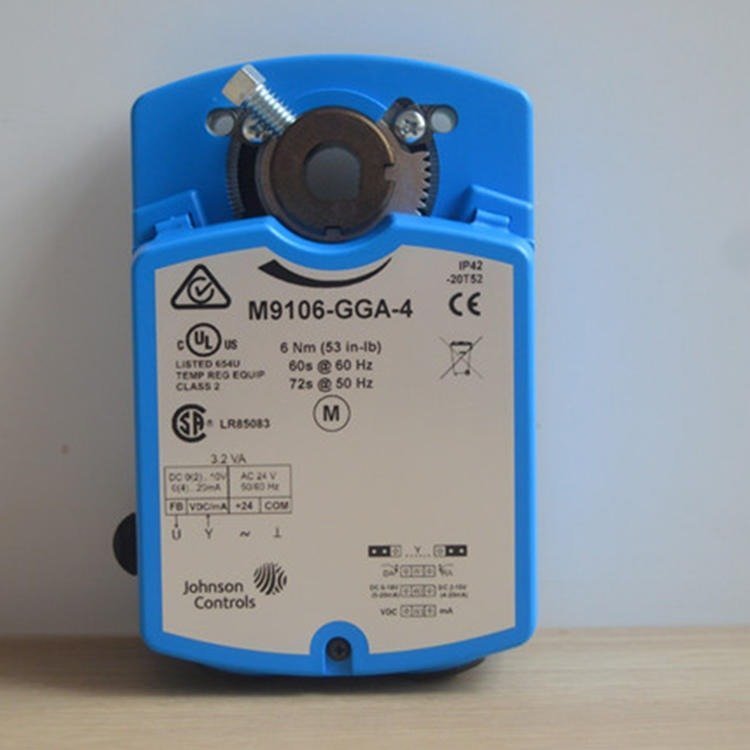

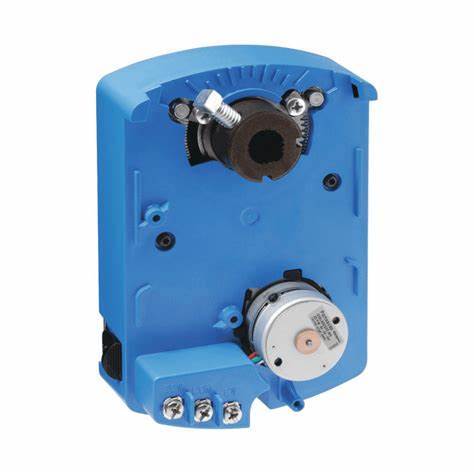

Original Johnson electric air valve actuator M9106-AGA-4 Ball Valve Driver with Floating Point Control 24V Actuator
Original Johnson electric air valve actuator M9106-AGA-4 Ball Valve Driver with Floating Point Control 24V Actuator
Original Johnson electric air valve actuator M9106-AGA-4 Ball Valve Driver with Floating Point Control 24V Actuator
Original Johnson electric air valve actuator M9106-AGA-4 Ball Valve Driver with Floating Point Control 24V Actuator
Original Johnson electric air valve actuator M9106-AGA-4 Ball Valve Driver with Floating Point Control 24V Actuator
Original Johnson electric air valve actuator M9106-AGA-4 Ball Valve Driver with Floating Point Control 24V Actuator
Original Johnson electric air valve actuator M9106-AGA-4 Ball Valve Driver with Floating Point Control 24V Actuator
Original Johnson electric air valve actuator M9106-AGA-4 Ball Valve Driver with Floating Point Control 24V Actuator
Original Johnson electric air valve actuator M9106-AGA-4 Ball Valve Driver with Floating Point Control 24V Actuator
Original Johnson electric air valve actuator M9106-AGA-4 Ball Valve Driver with Floating Point Control 24V Actuator
Original Johnson electric air valve actuator M9106-AGA-4 Ball Valve Driver with Floating Point Control 24V Actuator
Original Johnson electric air valve actuator M9106-AGA-4 Ball Valve Driver with Floating Point Control 24V Actuator
Specifications
Delivery Time :
in stock
Model Number :
M9106-AGA-4
Price :
USD＄70
Packaging Details :
Original packaging
Supply Ability :
10PC
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Place of Origin :
China
Brand Name :
Johnson
MOQ :
2
Description

Simple direct coupling reduces installation
and commissioning time and improves
reliability by eliminating damper linkages.
Single screw coupling provides three-point
shaft gripping
• Designed for zone damper and ball valve
actuator applications
• Small, compact design — allows installation
in tight-fitting locations
• Rotation range adjustable 30 to 90 degrees
CW or CCW
• Fits 3/8 to 1/2” (10 to 13 mm) round or 3/8”
(10 mm) square shaft
• On-off, floating and jumper selectable DC
0(2)…10 V or DC 0(4)…20 mA proportional
control
• Jumper selectable DA / RA operation

• 60 second running time at 60 Hz
• Long life brushless synchronous drive motor
technology – provides constant running
time independent of load
• Robust 53 lb-in (6 Nm) torque rating

• Whisper quiet 35 dBA noise rating
• Magnetic clutch – provides over torque
protection over the entire range of rotation
• 2-SPDT optional auxiliary switches
• -4 to 125°F (-20 to 52°C) ambient
temperature rating
• 100,000 full stroke cycle, 2,500,000
reposition rating
• Manual gear release simplifies setup and
field adjustments
• 1/2” NPT threaded conduit opening meets
electrical code requirements and allows the
use of flexible armored cable
• Position feedback (GGX models) provides
simple, closed-loop control with accurate
position sensing
• Adjustable rotation stops allow application
versatility with 30 to 90° clockwise or
counterclockwise rotation
• UL Listed, CSA Certified, CE Mark
