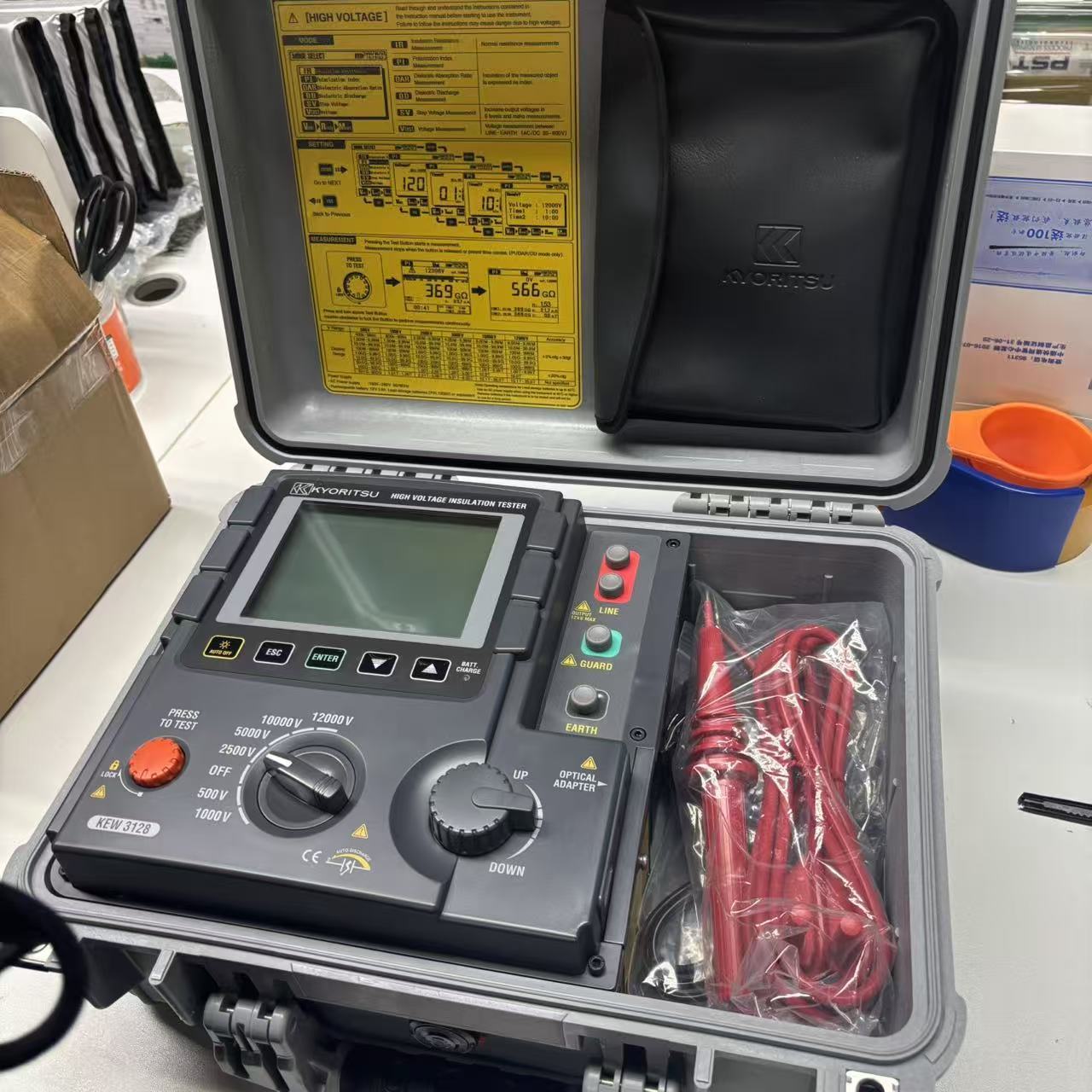

Kyoritsu HIGH VOLTAGE INSULATION TESTER KEW 3128
Kyoritsu HIGH VOLTAGE INSULATION TESTER KEW 3128
Kyoritsu HIGH VOLTAGE INSULATION TESTER KEW 3128
Kyoritsu HIGH VOLTAGE INSULATION TESTER KEW 3128
Kyoritsu HIGH VOLTAGE INSULATION TESTER KEW 3128
Kyoritsu HIGH VOLTAGE INSULATION TESTER KEW 3128
Kyoritsu HIGH VOLTAGE INSULATION TESTER KEW 3128
Kyoritsu HIGH VOLTAGE INSULATION TESTER KEW 3128
Specifications
Supply Ability :
500pcs
Model Number :
KEW 3128
Certification :
CE
MOQ :
1
Delivery Time :
1week
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Price :
US$7460/pc
Brand Name :
Kyoritsu
Place of Origin :
CHINA
Packaging Details :
carton
Description
Insulation resistance
Test voltage 500V 1000V 2500V 5000V 10000V 12000V
Max measurement value 500GΩ 1TΩ 2.5TΩ 5TΩ 35TΩ
Accuracy 400kΩ to 50GΩ
±5%rdg±3dgt		 800kΩ to 100GΩ
±5%rdg±3dgt		 2MΩ to 250GΩ
±5%rdg±3dgt		 4MΩ to 500GΩ
±5%rdg±3dgt		 8MΩ to 1TΩ
±5%rdg±3dgt
50.1 to 500GΩ
±20%rdg(*)		 101G to 1TΩ
±20%rdg		 251G to 2.5TΩ
±20%rdg		 501GΩ to 5TΩ
±20%rdg		 1.01 to 10TΩ
±20%rdg
10.1 to 35TΩ
Short circuit current Max 5.0mA
Load resistor to output rated voltage 0.5MΩ or more 1MΩ or more 2.5MΩ or more 5MΩ or more 20MΩ or more 24MΩ or more
Output voltage
Rated voltage 500V 1000V 2500V 5000V 10000V 12000V
Monitor accuracy
 ±10%±20V
Output accuracy
 0 to +20% 0 to +10% -5 to +5%
Selectable range
 50 to 600V
(in steps of 5V)		 610 to 1200V
(in steps of 10V)		 1225 to 3000V
(in steps of 25V)		 3050 to 6000V
(in steps of 50V)		 6100 to 10000V
(in steps of 100V)		 10100 to 12000V
(in steps of 100V)
Voltage measurement
Measuring range DCV:±30 to ±600V
ACV:30 to 600V (50/60Hz)
Accuracy ±2%rdg±3dgt
Current measurement
Measuring range 5.00nA to 2.40mA
(Depending on the insulation resistance)
Accuracy ±5%rdg±5dgt
