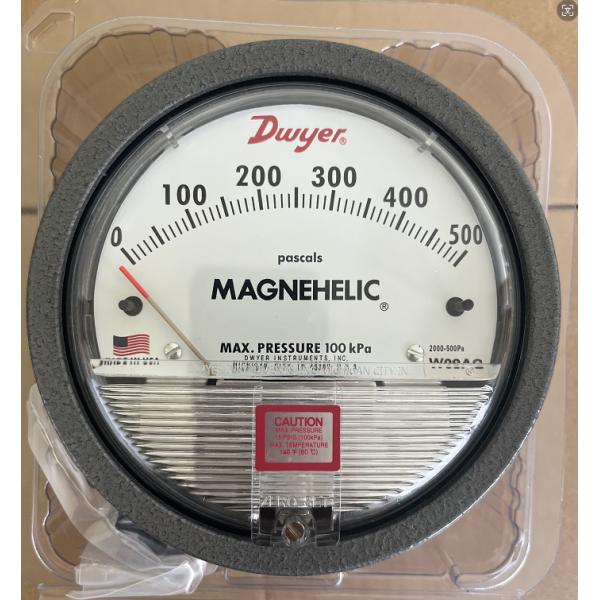

Dwyer 2000-500PA Magnehelic Differential Pressure Gauge 0-500pa 0-750pa 0-1000pa
Dwyer 2000-500PA Magnehelic Differential Pressure Gauge 0-500pa 0-750pa 0-1000pa
Dwyer 2000-500PA Magnehelic Differential Pressure Gauge 0-500pa 0-750pa 0-1000pa
Dwyer 2000-500PA Magnehelic Differential Pressure Gauge 0-500pa 0-750pa 0-1000pa
Dwyer 2000-500PA Magnehelic Differential Pressure Gauge 0-500pa 0-750pa 0-1000pa
Dwyer 2000-500PA Magnehelic Differential Pressure Gauge 0-500pa 0-750pa 0-1000pa
Dwyer 2000-500PA Magnehelic Differential Pressure Gauge 0-500pa 0-750pa 0-1000pa
Dwyer 2000-500PA Magnehelic Differential Pressure Gauge 0-500pa 0-750pa 0-1000pa
Specifications
Brand Name :
Dwyer
Model Number :
2000-500pa
Certification :
CCC,CE
Place of Origin :
usa
MOQ :
1
Price :
USD$40/PC
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100
Delivery Time :
1 weeks
Packaging Details :
Original
Service :
Air and non-combustible, compatible gases
Accuracy :
±2%
Pressure Limits :
-20 in Hg. to 15 psig
Enclosure Rating :
IP67
Overpressure :
Relief plug opens at approximately 25 psig (1.72 bar), standard gages only
Temperature Limits :
20 to 140°F
Mounting Orientation :
Diaphragm in vertical position
Dimensions :
4" (101.6 mm) diameter dial face
Description

Dwyer 2000-500PA Magnehelic Differential Pressure Gauge 2000-500pa

Dwyer 2000-500PA Magnehelic Differential Pressure Gauge 0-500pa 0-750pa 0-1000pa

  • Precision litho-printed scale is accurate and easy to read.
  • Red tipped pointer of heat treated aluminum tubing is easy to see. It is rigidly mounted on the helix shaft.
  • Pointer stops of molded rubber prevent pointer over-travel without damage.
  • "Wishbone" assembly provides mounting for helix, helix bearings and pointer shaft.
  • Jeweled bearings are shock-resistant mounted; provide virtually friction-free motion for helix. Motion damped with high viscosity silicone fluid.
  • Zero adjustment screw is conveniently located in the plastic cover, and is accessible without removing the cover. O-ring seal provides pressure tightness.
  • Helix is precision made from an alloy of high magnetic permeability. Mounted in jeweled bearings, it turns freely, following the magnetic field to move the pointer across the scale.
  • Samarium Cobalt magnet mounted at one end of range spring rotates helix without mechanical linkages.
  • Calibrated range spring is flat spring steel. Small amplitude of motion assures consistency and long life. It reacts to pressure on diaphragm. Live length adjustable for calibration.
