20 Tons Industrial Motorized Transfer Trolley Truck Applied In Heavy Industry
20 Tons Industrial Motorized Transfer Trolley Truck Applied In Heavy Industry
20 Tons Industrial Motorized Transfer Trolley Truck Applied In Heavy Industry
20 Tons Industrial Motorized Transfer Trolley Truck Applied In Heavy Industry
20 Tons Industrial Motorized Transfer Trolley Truck Applied In Heavy Industry
20 Tons Industrial Motorized Transfer Trolley Truck Applied In Heavy Industry
20 Tons Industrial Motorized Transfer Trolley Truck Applied In Heavy Industry
20 Tons Industrial Motorized Transfer Trolley Truck Applied In Heavy Industry
Specifications
Brand Name :
6 tons industrial use motorized V frame rail coil transfer carts
Model Number :
6 tons industrial use motorized V frame rail coil transfer carts
Certification :
CE ISO SGS
Place of Origin :
China(Mainland)
MOQ :
1 set
Price :
USD 3000~7500 set
Supply Ability :
100 set month
Delivery Time :
20 work days after received balance payment
Packaging Details :
trap and wooden case
Product Name :
V frame rail coil transfer carts
Application :
Industrial Filed
Capacity :
1-300ton
Color :
Customized
Warranty :
12 Months
After-sales Service Provided :
Engineers available to service machinery overseas
Description

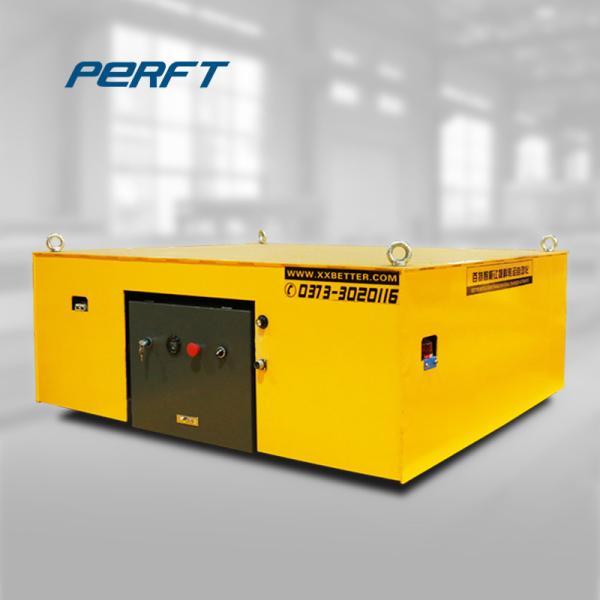

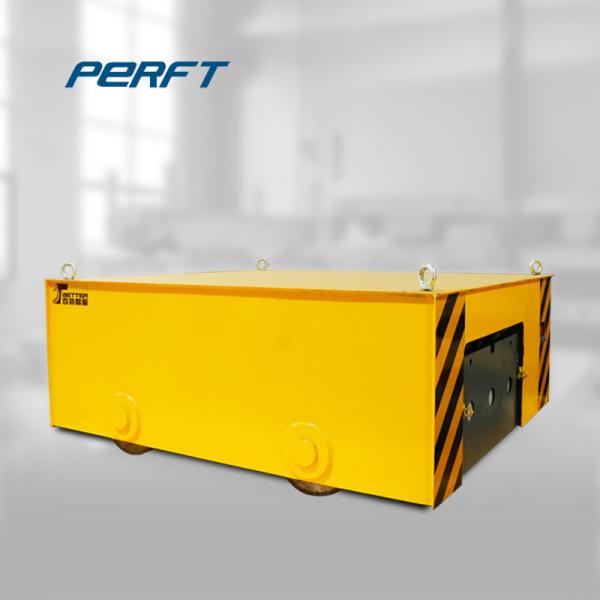

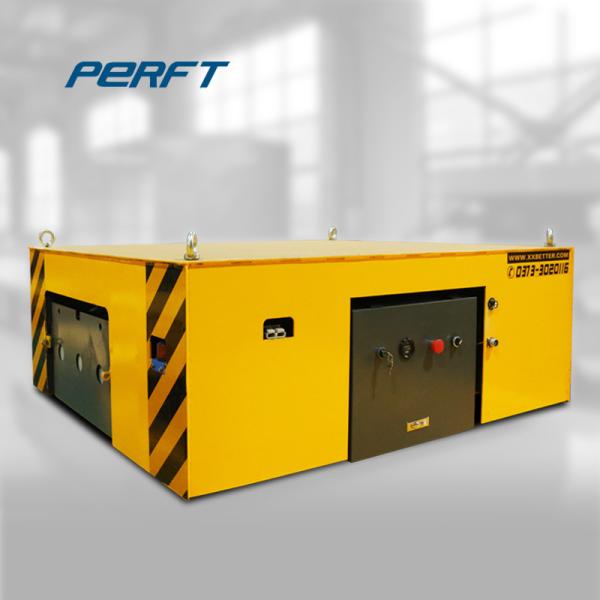

20 tons industrial use Motorized Transfer Trolley Truck Applied in Heavy Industry

Our battery powered coil trolley are used to transport steel coils and pipes for metal industry. This coil transfer Cars are designed to be an extremely cost effective, safe and flexible load moving alternative.
The steel coil rail car is also called a heavy transporter, headless transporter or self-propelled modular transporter. Our coil transfer carts are specially designed for coil, pipe and other round material transportation. When the goods are loaded, we can make sure the car moves safely and the goods are in a very safe condition.
Application

For horizontal load transfers of a wide range of material, we have the heavy duty, high quality Transfer Cart solution you need. Transfer carts are used: to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. They can even be used as a stable yet moveable machine base. With four different styles and standard capacities up to 60 tons, we have the solution you need and each style can be designed for your specific application.

Technical Parameter of V frame rail coil transfer carts
BXC-2t BXC-20t BXC-50t BXC-100t BXC-150t
Rated Load(t) 2 20 50 100 150
Table Size(mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Heigth(H) 450 550 650 900 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 2000 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Running Speed(min) 0-25 0-20 0-20 0-20 0-18
Motor Power(kw) 1 2.2 5 10 15
Battery Capacity 180 180 330 440 600
Battery Voltage 24 48 48 72 72
Running time When Full Load 4.32 4 3.3 3.2 2.9
Running Distance for Once Charge(KM) 6.5 4.8 4 3.8 3.2
Reference Weight(t) 2.8 5.9 8 14.6 26.8
Recommended Rail Model P15 P24 P43 QU100 QU100
Advantages
Low noise
It's powered by electric devices, so when you are operating it, you can't feel much noise. It causes low noise level and give workers a good working environment.
Maximum safety
We always try our best to make sure the safety of the operators and the material handled. We do care the safety of everyone involved in the job.
Easy for operation
Our vehicles are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best by using our products.
Easy to implement into manufacturing process
Operates on standard floors; Do not require complex or permanent installation
Suitable for All Kinds of Weight
The steering battery powered trolley is superb for handling both small and extremely huge loads for its modular fabrication and its high payloads: up to 300 ton for each trolley.
